MTM-3

MTM-3

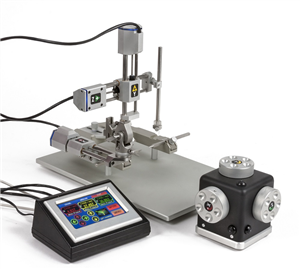

Motorised stereotaxic frame


Choose Quantity
  • Overview
  • Specifications
  • Accessories
  • Citations
  • Related Products

Overview

MTM-3

There are 1 images available to view - click to enlarge and scroll through the product gallery.

MTM-3 Instruction Manual
/ Download as PDF

MTM-3 DataSheet
/ Download as PDF

Features

Increased Precision and Repeatability of motion over traditional manual Stereotaxic frames.

  • Accurate microstepping motor drive for high resolution placement
  • Set the “final approach” speed between 2mm/sec and .02mm/sec

Increased Convenience, decreased error measurement

  • No more error resulting from reading Vernier scales
  • Brain atlas coordinates can be input into the controller, no computer required
  • Coordinate distances are automatically calculated
  • Touch screen for ease of control
  • Graphic controller display for instant operational feedback

MTM-3 Operation

Manual mode

  • Move the actuator using the touch panel or the intuitive manual 3 axis wheel controller
  • Individual axes may be easily disabled/enabled to ensure motion on only the desired axis
  • Controller allows for three different speed sensitivity levels

Coordinates mode

  • Specify retracted position
  • Store three origin definitions (references)
  • Probe position may be displayed with respect to any of thereferences, as well as absolute coordinates
  • Position plot cursor graphically represents the actuator arm position with respect to any of the stored references
  • All functions are accomplished without the use of a computer (computer interface available, if desired)

Optional Computer Control

  • Remote computer control through a USB port
  • Wireless Bluetooth computer control for the MTM-3 models equipped with a wireless option
  • Text based command set provided
  • Use a terminal program to create simple scripts for repetitive operations

Specifications

Part Numbers

MTM-3 3-Axis Stereotaxtic Controller (Left or Right)
MTM-3B 3-Axis Stereotaxtic Controller with Bluetooth (L or R)
MTM-6 6-Axis Stereotaxtic Controller (Left and Right)
MTM-6B 6-Axis Stereotaxtic Controller with Bluetooth
MTM 3-Axis Stereotaxtic Arm and Controller only (L or R)
MTMB 3-Axis Stereotactic Arm and Controller only, Bluetooth
