STX2-Plus
Replacement Electrode Set for EVOM3
- Overview
- Specifications
- Accessories
- Citations
- Related Products
Overview
There are 5 images available to view - click to enlarge and scroll through the product gallery.
Instruction Manual
/ Download as PDF

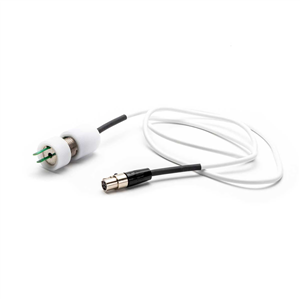

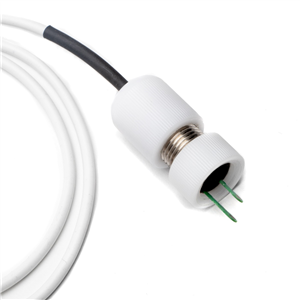

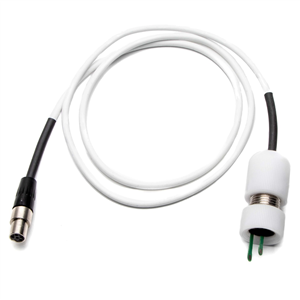

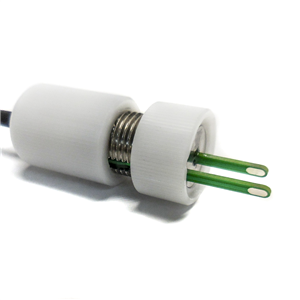

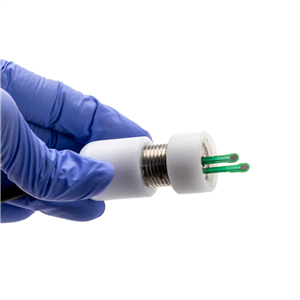

The STX2-PLUS electrode was designed for easy insertion into many 24-well plates. It is location re-placeable in the insert for repeatable and consistent measurements. The new shielded electrodes are now designed to minimize electrical interference and to be more easily maintained.
- STX2-PLUS new electrode designed for 12 and 24-well plates.
- Weighted self-standing electrode for hands-free stable measurements
- Shielded cable to minimize electrical and cell phone interference
Benefits
- Keyed electrode base for repeatable placement gives more consistent results, eliminating the need for multiple readings.
- Easy to maintain
- Keyed electrode base for repeatable placement gives more consistent results, eliminating the need for multiple readings.
- Easy to maintain
Compatible Inserts and Plates Charts
| Corning | Millipore | Material | Membrane Diameter (mm) | Growth Surface Area (cm²) | Membrane Pore Size (μm) |
| 3470 | 6.5 | 0.33 | 0.4 | ||
| 3472 | PITP01250 | 6.5 | 0.33 | 3.0 | |
| 3413 | PCF Insert | 6.5 | 0.33 | 0.4 | |
| 3415 | PITP 01250 PCF Insert |
6.5 | 0.33 | 3.0 | |
| 3421 | 6.5 | 0.33 | 5.0 | ||
| 3422 | PIEP 01250 PCF Insert |
6.5 | 0.33 | 8.0 | |
| 3495 | PIHT12R48* PET Insert |
6.5 | 0.33 | 0.4 | |
| PIHA012 50 | HA Insert | 6.5 | 0.33 | 0.45 | |
| PICM012 50 | CM Insert | 6.5 | 0.33 | 0.4 | |
| 3496 | PISP12R48* PET Insert |
6.5 | 0.33 | 3.0 | |
| PIRP12R48* PET Insert |
6.5 | 0.33 | 1.0 | ||
| PIMP12R48* PET Insert |
6.5 | 0.33 | 5.0 | ||
| PIEP12R48* PET Insert |
6.5 | 0.33 | 8.0 | ||
| PIXP01250 PCF Insert |
6.5 | 0.33 | 12 | ||
| PIHP01250 | 1.0 | ||||
| PITT01250 | 3.0 |
* Tri-supports
| Nunc | Pore size (μm) | Culture area (cm²) |
| 140620 | 0.4 | 0.47 |
| 140627 | 3.0 | 0.47 |
| 140629 | 8.0 | 0.47 |
| ThinCertTM | Membrane material | Pore size [µm] | Pore density [cm-2] | Optical membrane properties | TC surface treatment/Sterile | Multiwell plates/ThinCertTM per box |
| 662640 | PET | 0.4 | 1 x 108 | translucent | +/+ | 2/48 |
| 662641 | PET | 0.4 | 2 x 106 | transparent | +/+ | 2/48 |
| 662610 | PET | 1.0 | 2 x 106 | transparent | +/+ | 2/48 |
| 662630 | PET | 3.0 | 0.6 x 106 | transparent | +/+ | 2/48 |
| 662631 | PET | 3.0 | 2 x 106 | translucent | +/+ | 2/48 |
| 662638 | PET | 8.0 | 0.15 x 106 | translucent | +/+ | 2/48 |
| Millicell | Pore size (μm) | Qty/pk |
| MCHT24H48 | 0.4 | 48 |
| MCRP24H48 | 1.0 | 48 |
| MCSP24H48 | 3.0 | 48 |
| MCMP24H48 | 5.0 | 48 |
| MCEP24H48 | 8.0 | 48 |
| BD Falcon | Membrane material | Pore size [µm] | Pore density [cm-2] | Optical membrane properties | TC plate (#wells) |
| 353095 | PET | 0.4 | 2.0 ± 0.2 x 106 | transparent | 24 |
| 353104 | PET | 1.0 | 1.6 ± 0.6 x 106 | transparent | 24 |
| 353096 | PET | 3.0 | 8 ± 2 x 105 | transparent | 24 |
| 353097 | PET | 8.0 | 6 ± 2 x 104 | translucent | 24 |
| 353495 | PET | 0.4HD | 100 ± 10 x 106 | translucent | 24 |
| 353492 | PET | 3.0HD | 2.0 ± 0.2 x 105 | translucent | 24 |
