PZMTIII-BS-LWD-DIG50

PZMTIII-BS-LWD-DIG50

Precision Stereo Zoom Trinocular Microscope (III) LWD System on Boom Stand


Choose Quantity
  • Overview
  • Specifications
  • Accessories
  • Citations
  • Related Products

Overview

PZMTIII-BS-LWD-DIG50

There are 1 images available to view - click to enlarge and scroll through the product gallery.

PZMIII Instruction Manual
/ Download as PDF

PZMIII and PZMIV Eyepiece and Objective Specifications
/ Download as PDF

Microscope to Camera Configuration Chart
/ Download as PDF

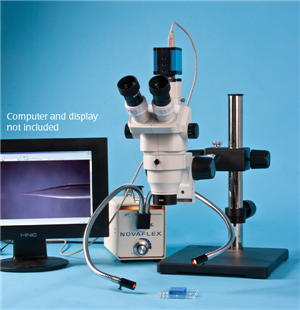

  • Includes PZMTIII trinocular body, pair of 10x eyepieces and eyeguards, ring light adapter, USBCAM50 camera, 0.5x CCD camera coupler, Z-LITE optical illuminator, bifurcated optical fiber light guide, 0.5x objective, 20x eyepieces and boom stand

Affordable quality

WPI’s third-generation stereomicroscope, PZMIII, is an ideal tool for tissue dissection, cell injection, specimen manipulation, electrode inspection, and many other applications that require a magnified, stereo viewing and ample working distance. It offers the leading brand’s quality and performance at an affordable price. Advanced optics provide the sharpest image that can only be found among the best of this class. It is superior to many stereomicroscopes costing almost twice as much. Zooming is achieved by a spring-loaded nub that is smooth and effortless. The compact size and light weight make it more stable and easily manipulated on the boom stand. A specially designed photo/video module is used in the trinocular version of the microscope for photo, video or digital imaging (PZMTIII). In addition, an extensive list of optional accessories is available that can make the PZMIII suitable for almost any bio-research applications requiring a stereomicroscope.

Specifications

EYEPIECES WFH 10x
ZOOM RANGE 0.67x - 4.5x
TOTAL MAGNIFICATION 6.77x - 45x
FIELD OF VIEW 34 MM - 5 MM
WORKING DISTANCE 100 mm
BINOCULAR TUBE Inclined 45°
INTERPUPILLARY DISTANCE Adjustable 47-70 mm
DIOPTER ADJUSTMENT ±5 Diopter (both eyepiece tubes)
MICROSCOPE BODY Rotatable 360°
AUXILIARY LENSES: Total magnification 2x - 225x
AUXILIARY LENSES: Biggest Field of View 110 mm
AUXILIARY LENSES: Working Distance 26-287 mm
SHIPPING WEIGHT 23 lb.



Boom Stand Specifications

Base Size 11.22 x 10.24 x 0.71" (285 x 260 x 18mm)
Maximal size from vertical post to the front of the base 9.4" (238.25mm)
Horizontal bar length 19" (483mm)
Horizontal bar diameter 1.465" (37.2mm)
Vertical post length 15.1" (384mm)
Vertical post diameter 1.465" (37.2mm)
Extension post Extends size up to 25" (634mm)
Diameter of mounting holes in the front of horizontal bar 0.625" (15.875mm)
Maximal bearing load on the front of horizontal bar 21 lb. (9.526kg)
