AL-9000

Overview

• Pump from a reservoir through replaceable continuous tubing.
• Measured dispenses for production filling of bottles.
• Fluid only comes into contact with the continuous tubing - not the pump.
• Continuous Pumping. Up to 1000 mL/min (model AL-9004C).
• Dispenses and Withdraws.
• Calibration function to improve precision.
• Slow Down and Anti-Drip modes improve control of dispensing.
• Optionally operates from a foot switch or external sensor.
• Fully programmable with Computer interface for more advanced applications.

Learn and Repeat™

Quickly teach the pump the volume of a bottle or container. Then immediately fill all your bottles or containers to the same volume.

Quick Change Pumping Heads

Reduce costs while increasing productivity by using one pump with multiple fluids. Quickly change between different fluids with extra pumping heads. Simply twist off one head and twist on a different head to change between fluids.

Description:

The 9000 Series peristaltic pumps are equipped to be used in many settings from the small home based businesses to the large factory floor. Applications range from continuous flow to measured dispenses. The pump can be integrated into existing production lines or simply used stand alone.

The 9000 Series is fully programmable and can be operated manually or with a PC through a RS-232 communication port. PC cable and software offered as accessories.

Model	Head Color	Rollers	Tubing ID	Minimum Rate (mL/min)	Maximum Rate (mL/min)
AL-9000G	Green	4	1/16""	0.004	75.19
AL-9000B	Blue	2	3/16""	0.035	775.2
AL-9004C	Clear	2	1/4""	0.047	1038.



Features:

• Dispense and withdrawal pumping
• Quick change pumping heads to quickly switch between fluids.
• Learn and Repeat™ mode to improve dispense productivity.
• Slow down mode to improve accuracy of dispenses
• Anti-Drip mode to stop oozing after dispenses
• Calibration mode to improve accuracy: Under 3% error.
• Power Failure Mode: Restarts the Pumping Program after a power interruption
• Programmable dispense volumes. Store and select from up to 40 Dispenses.
• Selectable volume units of mL or oz.
• Selectable pumping rate units of mL/min, mL/sec, oz/min, oz/sec, or dispense a volume over a set time.
• Programming mode for complex pumping applications and interaction with external devices.
• Foot Switch control available.
• RS-232 bi-directional control for complete control from a PC. Network up to 100 pumps and other devices.
• Digital logic input: TTL I/O with software filtered control inputs to eliminate glitches and ringing on the control inputs. Configurable TTL operational trigger for foot switches and other devices.
• Audible alarm.
• Easy-to-use keypad interface
• Non-volatile memory of all operating parameters and pumping program
• Space Saving Chassis: Foot print size of only 7 3/4" x 5 1/4"
• Two year warranty
• Includes all the advanced functions and programming features of the AL-1000 pump series
• Worldwide power supplies available
• Other tubing, supplies and accessories sold separately.

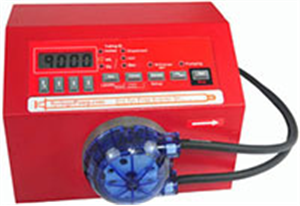

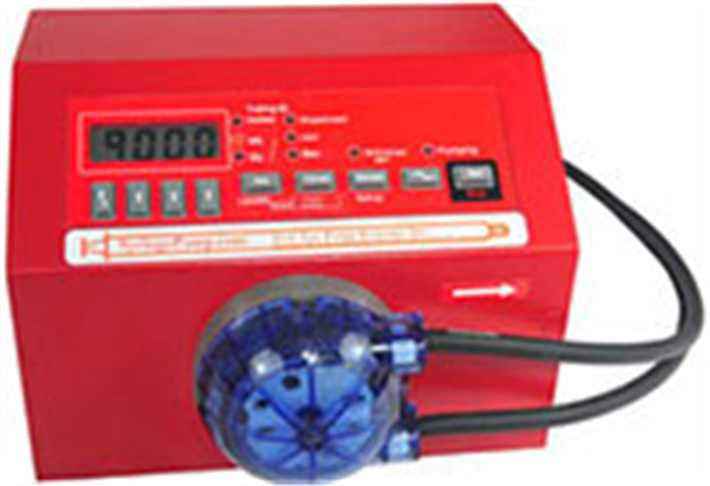

Model #: AL-9000B
This pump is used for higher flow rates & larger dispense volumes. AL-9000 with 2 roller pumping head & 3/16" ID tubing
Flow rate ranges: 0.035 mL/min to 775.2 mL/min.
Includes PERI-HEAD-KIT-YB2.

Model #: AL-9000G
This pump is for better precision with lower flow rates & small dispense volumes. AL-9000 with 4 roller pumping head & 1/16" ID tubing
Flow rate ranges: 0.004 mL/min to 75.19 mL/min.
Includes PERI-HEAD-KIT-YG4.

Model #: AL-9004C
This pump is used for higher flow rates & larger dispense volumes. AL-9000 with 2 roller pumping head & 1/4" ID tubing
Flow rate ranges: 0.047 mL/min to 1038 mL/min.
Includes PERI-HEAD-KIT-HGC2.

Purchase additional heads to quickly change between fluids, improving productivity. 3/16" ID and 1/16" ID tubing heads are interchangeable.

PERI-HEAD-KIT-YB2
For use with model: AL-9000B
2 roller pumping head, 3/16"ID tubing. Maximum pumping rate: 775.2 mL/min
Kit includes:
Blue, 2 roller head, 4 ft. Tubing
Model Q-TP-IND1-3/16
Industrial Grade 3/16"ID x 5/16"OD x 1/16" Wall
Clamp ties: Nylon, quantity 4
Vial of lubricant

PERI-HEAD-KIT-YG4
For use with model: AL-9000G
4 roller pumping head, 1/16"ID tubing. Maximum pumping rate: 75.19 mL/min
Kit includes:
Green, 4 roller head, 4 ft. Tubing
Model Q-TP-PMED-1/16
Pharmed 1/16"ID x 3/16"OD x 1/16" Wall
Clamp ties: Nylon, quantity 4
Reduction coupler, quantity 4
Vial of lubricant

PERI-HEAD-KIT-HGC2
For use with model: AL-9004C
2 roller pumping head, 1/4"ID tubing. Maximum pumping rate: 1038 mL/min
Kit includes:
Clear, 2 roller head, 4 ft. Tubing
Model Q-TP-IND1-1/4
Industrial Grade 1/4"ID x 6/16"OD x 1/16" Wall
Clamp ties: Nylon, quantity 4
Vial of lubricant

Specifications

Model	Head Color	Rollers	Tubing ID	Minimum Rate (mL/min)	Maximum Rate (mL/min)
AL-9000G	Green	4	1/16""	0.004	75.19
AL-9000B	Blue	2	3/16""	0.035	775.2
AL-9004C	Clear	2	1/4""	0.047	1038.



Mechanical & Electrical

Number of pump channels: 1

Motor type: Step motor

Motor steps per revolution: 200

Microstepping: 1/8 to 1/1 depending on motor speed

Power connector: 2.1mm, center positive

Power supply type: Unregulated linear external wall adapter, country and power source specific

Power supply output rating: 24V DC @ 1A

Dimensions: 7 ¾” x 5 1/4” x 5 3/4” High (19.685 cm x 13.335 cm x 14.605 cm)

Weight: 2.05 kg

Operational

Maximum speed: 372 rpm

Minimum speed: 0.0168 rpm

Maximum pumping rate: 775.2 mL/min with 3/16 ID tubing

Minimum pumping rate: 0.035 mL/min with 3/16 ID tubing

Number of Program Phases: 40

RS-232 pump network: 100 pumps maximum

RS-232 selectable baud rates: 300, 1200, 2400, 9600, 19200
