SP210cZ

SP210cZ

Continuous Cycle Syringe pump


Choose Quantity
  • Overview
  • Specifications
  • Accessories
  • Citations
  • Related Products

Overview

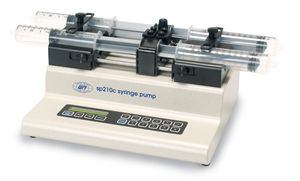

SP210cZ

There are 1 images available to view - click to enlarge and scroll through the product gallery.

SP200 series Instruction Manual
/ Download as PDF

  • Accepts syringe sizes: 10uL - 60mL (two)
  • Minimum Flow Rate: 0.001 uL/hr (10µl syringe)
  • Maximum Flow Rate: 86 mL/min (60 mL syringe)
  • 220-240 V, 50 Hz

Sturdy, reliable, and easy to use

Sturdy and reliable, extremely simple to set up and use - and surprisingly affordable. Liquid crystal displays (LCDs) prompt you through set­up: First, select syringe from table stored in the pump's memory and displayed on the LCD. Next, enter the volume to be dispensed. Finally, enter the flow rate, press "start." It's fast and simple. Your settings are permanently stored in memory - there's no need to re-enter them each day. SP pumps feature preset rate and volume control. Just set the volume you want dispensed. Volume is tracked continuously on the LCD display. Then, when the preset volume has been dispensed, the pump shuts off automatically. The easy-to-read digital display provides realtime readings using both parameters and values for clearer, mistake-free readings. The SP200 Series pumps offer TTL and RS-232C interfaces and automatic shutoff under stall conditions.

Features

The SP210c can hold up to four syringes and can cycle continuously back and forth in a push-pull action. As two syringes are infusing, two other syringes are withdrawing at the same rate. At the end of the set volume the direction is automatically reversed and the next cycle begins. With the use of 2-way valves, the pump can empty and refill syringes for a continuous dispense. Holds four syringes, 10 mL to 60 mL each. With larger syringes the full volume may not be usable. [With a 60 mL syring, 40 mL is usable; with a 30 mL syringe, the full volume is usable.

Specifications

Mode Infusion/Withdrawl (continuous)
Syringe Size 10µL to 60mL (two)
Maximum Flow Rate (60 mL syringe) 86 mL/min
Minimum Flow Rate 0.001µL/hr
Linear Force 40 Ib (18 kg)
Advance Per Microstep 0.165 micron
Maximum Step Rate 1600 steps/sec
Minimum Step Rate 1 step/100 sec
Accuracy < 1% error
Reproducibility ± 0.1%
Dimensions 11 x 9 x 5.5 in., 28 x 23 x 14 cm
Shipping Weight 12 Ib (5.4 kg)
Notes: Available 95-135 V or 220-240 V, 50/60 Hz
