SP220iZ

SP220iZ

Multi-Syringe Infusion Pump


Choose Quantity
  • Overview
  • Specifications
  • Accessories
  • Citations
  • Related Products

Overview

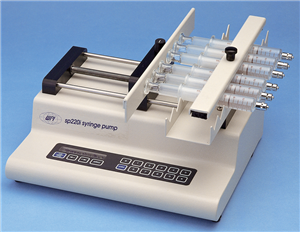

SP220iZ

There are 1 images available to view - click to enlarge and scroll through the product gallery.

SP200 series Instruction Manual
/ Download as PDF

  • Accepts syringe sizes: 10uL - 10mL (ten), 10µl - 60ml (four), 10µl - 140ml (four)
  • Minimum Flow Rate: 0.001 uL/hr (10µl syringe)
  • Maximum Flow Rate: 21 mL/min (10 mL syringe)
  • 220-240 V, 50 Hz

Sturdy, reliable, and easy to use

Sturdy and reliable, extremely simple to set up and use - and surprisingly affordable. Liquid crystal displays (LCDs) prompt you through set­up: First, select syringe from table stored in the pump's memory and displayed on the LCD. Next, enter the volume to be dispensed. Finally, enter the flow rate, press "start." It's fast and simple. Your settings are permanently stored in memory - there's no need to re-enter them each day. SP pumps feature preset rate and volume control. Just set the volume you want dispensed. Volume is tracked continuously on the LCD display. Then, when the preset volume has been dispensed, the pump shuts off automatically. The easy-to-read digital display provides realtime readings using both parameters and values for clearer, mistake-free readings. The SP200 Series pumps offer TTL and RS-232C interfaces and automatic shutoff under stall conditions.

Features

This feature-laden multi-syringe infusion pump combines a broad speed range and holds a wide range of syringe sizes to meet the requirements of virtually any laboratory application. Features include: accommodates 10 up to 10 mL, or six syringes up to 50 mL, or four syringes up to 140 mL, backlit LCD display, knob locks/unlocks drive block for effortless, drag-free adjustment, simple menu-driven setup: Syringe diameter (selected from displayed table), Dispense volume, Dispense flow rate, continuous dispense volume display, preset volume control and automatic shutoff, settings can be reviewed or changed during operation, optical encoder stall detection, choice of unit selection, last settings stored in permanent memory, built-in RS-232C interface for computer linking or "daisy chaining" up to 100 pumps, and TTL interface for foot switch, timer, relay control; outputs for run indicator, valve control.

Specifications

Mode Infusion
Syringe Size 10uL - 10mL (ten), 10µl - 60ml (four), 10µl - 140ml (four)
Maximum Flow Rate (10 mL syringe) 21 mL/min
Minimum Flow Rate 0.001µL/hr
Linear Force 40 Ib (18 kg)
Advance Per Microstep 0.165 micron
Maximum Step Rate 1600 steps/sec
Minimum Step Rate 1 step/100 sec
Accuracy < 1% error
Reproducibility ± 0.1%
Dimensions 11 x 12 x 5.5 in., 28 x 30 x 14 cm
Shipping Weight 12.5 Ib (5.7 kg)
Notes: Available 95-135 V or 220-240 V, 50/60 Hz
