EXIGO-IPAD-NS-NF

EXIGO-IPAD-NS-NF

1 x pump; 1 x iPad mini with ExiGo App; 1 x tubing kit; power supply and cables


Choose Quantity
  • Overview
  • Specifications
  • Accessories
  • Citations
  • Related Products

Overview

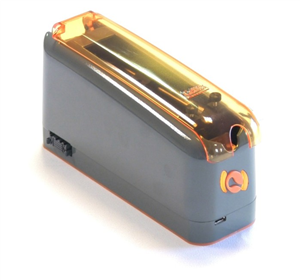

ExiGo ExiGo iPad-mini ExiGo Pump

There are 3 images available to view - click to enlarge and scroll through the product gallery.

ExiGo Manual - iPad
/ Download as PDF

ExiGo Manual - LabView
/ Download as PDF

Features:

  • Precise pulse-free flow control with active feedback via flow sensor: 10nL/min - 1mL/min (250uL glass syringe); 100nL/min - 20mL/min (5mL plastic syringe)
  • Flow rate:  0.0725pL/min - 20mL/min
  • Standard syringes:  0.5µL - 1µL (glass) and 1mL - 5mL (plastic).
  • Wash mode or programmable perfusion mode (constant, ramp, step, sine) with reversible flow direction.
  • Dynamic response:  50ms max (recorded at flow rate change from 0 to 10,000 nL/min).
  • Excellent long-term flow stability.

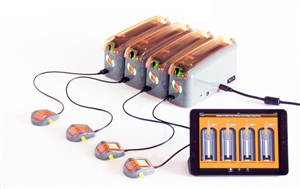

  • EXIGO-IPAD-NS-NF includes iPad mini which can control/program up to 4 pump modules independently. PC control software also available (LabView and API functions).
  • Wi-Fi and USB communication.
  • Use standard tubing for connection to any microfluidic biochip.

Applications:  Microfluidics and nanofluidics, droplet generation and manipulation, pulse-free flow, laminar and multilaminar flow studies, precise multichannel mixing, cell-based shear flow studies, cell and particle manipulation studies.

Specifications

Volumetric Flow Rates 0.0725 pL/minute - 20 mL/minute
Microsteps per one revolution of lead screw 250,000
Step resolution 0.008μm
Pulse-free flow rate for microfluidic applications* 10nL/min - 1mL/min ± 20nL/min @ 250uL glass syringe 100nL/min - 20mL/min ± 40nL/min @ 5mL plastic syringe
Flow rate stability for microfluidic applications* ± 0.25% of Full Scale @ 250μL syringe and 8,000nL/min ExiGo Flow Sensor
Dynamic Response 50ms max (recorded at flow rate change from 0 to 10,000nL/min)
Compatible Syringes  0.5μL - 1μL (glass syringes) 1mL - 5mL (plastic syringes)
Working Pressure 30 psi - 2 bars maximum
External Trigger 2 inputs and 2 outputs of external trigger for operation with external units and software
Flow control Reversible flow direction - Push/Pull Programmable perfusion mode:  constant, ramp, step, sine
Additional features Easy to use iPad mini control Control/program up to 4 pumps independently Wi-fi communication Standard tubing for connection to any microfluidic biochip

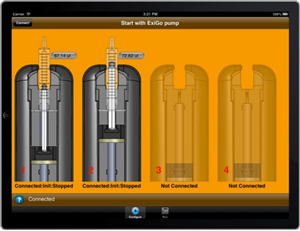

Software Control  iPad mini ExiGo App
Dimensions 225mm (W) x 69mm (D) x 122mm (H)
Weight  ~ 1.3kg
*Measured with ExiGo Flow Sensor and active PID feedback



Accessories

Citations

Calmer, S., Ferkau, A., & Larmann, J. (2013). Desmopressin (DDAVP) improves recruitment of activated platelets to collagen but simultaneously increases platelet endothelial interactions in vitro. …. Retrieved from https://informahealthcare.com/doi/abs/10.3109/09537104.2013.767442

Durazzo, T., Tigelaar, R., & Filler, R. (2013). Induction of monocyte-to-dendritic cell maturation by extracorporeal photochemotherapy: Initiation via direct platelet signaling. …  and Apheresis Science. Retrieved from https://www.sciencedirect.com/science/article/pii/S1473050213003571

Ferkau, A., Ecklebe, S., & Jahn, K. (2013). A dynamic flow chamber-based adhesion assay to assess canine platelet–matrix interactions in vitro. Veterinary Clinical  …. Retrieved from https://onlinelibrary.wiley.com/doi/10.1111/vcp.12035/full

Ferkau, A., & Gillmann, H. (2013). Infection-associated platelet dysfunction of canine platelets detected in a flow chamber model. BMC veterinary  …. Retrieved from https://www.biomedcentral.com/1746-6148/9/112/

Kashanin, D., & Shvets, I. (2013). BIOCHIP ASSEMBLY AND ASSAY METHOD THEREOF. US Patent  …. Retrieved from https://www.freepatentsonline.com/y2013/0040334.html

Moraes, L., & Vaiyapuri, S. (2013). Antithrombotic actions of statins involve PECAM-1 signaling. …. Retrieved from https://bloodjournal.hematologylibrary.org/content/122/18/3188.short

Saleki, M., Colgin, N., Kirby, J., Cobb, S., & Ali, S. (2013). Evaluation of two cyclic di-peptides as inhibitors of CCL2 induced chemotaxis. Med. Chem. Commun. Retrieved from https://pubs.rsc.org/en/content/articlelanding/2012/md/c3md00043e

Zhi, H., Rauova, L., & Hayes, V. (2013). Cooperative integrin/ITAM signaling in platelets enhances thrombus formation in vitro and in vivo. …. Retrieved from https://bloodjournal.hematologylibrary.org/content/121/10/1858.short
