KIMA-PRO-1.0

KIMA-PRO-1.0

Microfluidic pump for continuous cell culture under shear flow mimicking physiological flow in the human vasculature.


Choose Quantity
  • Overview
  • Specifications
  • Accessories
  • Citations
  • Related Products

Overview

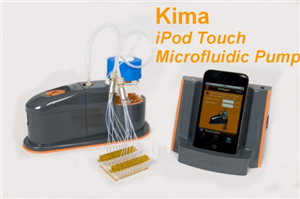

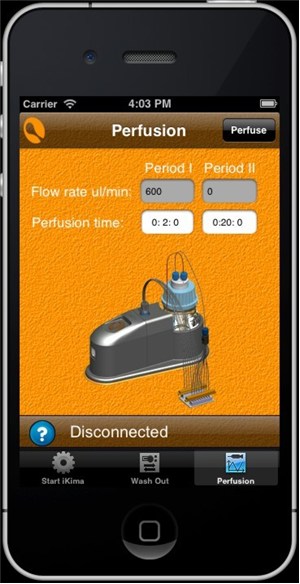

Kima Pump Kima iPod Touch Software

There are 2 images available to view - click to enlarge and scroll through the product gallery.

Quick Start Guide Kima Pump
/ Download as PDF

Quick Start Guide Kima Connect
/ Download as PDF

Kima Pump Protocol
/ Download as PDF

Application Note C300
/ Download as PDF

  • Fits inside standard CO2 incubators - maintaining temperature and humidity.
  • Periodic perfusion to support cell culture in an incubator
  • Wash mode or pump mode
  • Flow rate:  15 - 35mL/hr ± 4%.
  • Dead volume:  < 300µL
  • Includes iPod Touch which can control up to 4 pump modules independently.
  • Wi-Fi communication.
  • Includes tubing kit for Vena8 biochips or alternative tubing kits for connection to any microfluidic biochip.

Applications:  Biofilm studies; cell culture in biochips with adherent cells (HUVECs), stem cells, HepG2 cells.

Please Note: the Kima pump is not suitable for shear stressed based assays because the pump delivers liquid in pulses (not continuous flow)

iPod Touch controlled microfluidic Kima Pump for life sciences

iPod Touch Kima Pump for Biofilm Culture studies

iPod Touch Kima Pump for Toxicology Studies

Specifications

Volumetric Flow Rates Perfusion mode:  15 - 35 mL/hr (*) +/- 4%
Shear Stress Range Perfusion mode:  ~2.5 to ~6.5 dyne/cm2(**)
Dead Volume < 300 µL
Working Pressure 30 psi - 2 bars maximum
Flow Direction
  • Dispense only.
  • Two modes:  wash and perfusion (controlled only by Kima controller via iPod Touch / iPhone)
Additional features
  • Plug and play with Kima controller and iKima Application (available for iPod Touch / iPhone)
  • Featured with standard 100mL bottle holder
Dimensions 190mm x 85mm x 90mm (L x W x H)
Weight < 800g (bottle and tubing not included)
Conditions of use
  • Temperature: 10°C to 60°C
  • Humidity: < 98% RH
  • Altitude: < 2000m

(*): calibrated test made with a specific flow resistance of 150µm inner diameter by 5cm length

(**): shear stress is for information only; based on the connection to 8 channels of a Vena8 Endothelial+ biochip (capillary of 800µm x 120µm)

Accessories

Citations

Calmer, S., Ferkau, A., & Larmann, J. (2013). Desmopressin (DDAVP) improves recruitment of activated platelets to collagen but simultaneously increases platelet endothelial interactions in vitro. …. Retrieved from https://informahealthcare.com/doi/abs/10.3109/09537104.2013.767442

Durazzo, T., Tigelaar, R., & Filler, R. (2013). Induction of monocyte-to-dendritic cell maturation by extracorporeal photochemotherapy: Initiation via direct platelet signaling. …  and Apheresis Science. Retrieved from https://www.sciencedirect.com/science/article/pii/S1473050213003571

Ferkau, A., Ecklebe, S., & Jahn, K. (2013). A dynamic flow chamber-based adhesion assay to assess canine platelet–matrix interactions in vitro. Veterinary Clinical  …. Retrieved from https://onlinelibrary.wiley.com/doi/10.1111/vcp.12035/full

Ferkau, A., & Gillmann, H. (2013). Infection-associated platelet dysfunction of canine platelets detected in a flow chamber model. BMC veterinary  …. Retrieved from https://www.biomedcentral.com/1746-6148/9/112/

Kashanin, D., & Shvets, I. (2013). BIOCHIP ASSEMBLY AND ASSAY METHOD THEREOF. US Patent  …. Retrieved from https://www.freepatentsonline.com/y2013/0040334.html

Moraes, L., & Vaiyapuri, S. (2013). Antithrombotic actions of statins involve PECAM-1 signaling. …. Retrieved from https://bloodjournal.hematologylibrary.org/content/122/18/3188.short

Saleki, M., Colgin, N., Kirby, J., Cobb, S., & Ali, S. (2013). Evaluation of two cyclic di-peptides as inhibitors of CCL2 induced chemotaxis. Med. Chem. Commun. Retrieved from https://pubs.rsc.org/en/content/articlelanding/2012/md/c3md00043e

Zhi, H., Rauova, L., & Hayes, V. (2013). Cooperative integrin/ITAM signaling in platelets enhances thrombus formation in vitro and in vivo. …. Retrieved from https://bloodjournal.hematologylibrary.org/content/121/10/1858.short
