NL2010MC2T - Discontinued

Overview

Discontinued, see Nanoliter2020

Features

• Microprocessor-controlled injector
• Direct piston displacement in capillary glass
• Micro2T SMARTouch™ controller
• Optional foot switch

Benefits

• No syringes required
• Graphical representation of volume status
• Automatically calculated injections based on pipette volume
• Intuitive touchscreen interface
• Precise control over volumes and injection rates

Applications

• Oocyte injection
• Neo-cortex injections

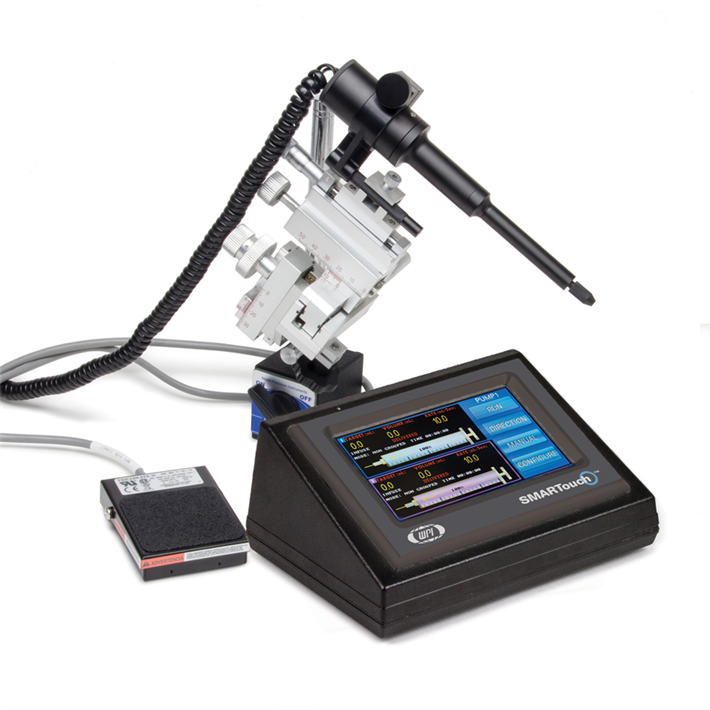

WPI’s microprocessor-controlled Nanoliter 2010 uses direct piston displacement. By either pushing
the injection button on the control box or pressing on the optional foot switch, a discrete volume will be injected. Maximum fluid ejection is 4.5 μL. Each unit comes with a vial of capillary glass for pulling 10 μm micropipettes. Glass is 1.14mm O.D. (nominal) and 0.5 mm I.D.

The system includes:

• (1) Vial 3.5" capillaries (300)
• Replacement “O” rings
• (1) Allen wrench
• (1) MicroFil MF34G backfilling needle
• (2) Sample μTip™ pre-pulled micropipettes.

SMARTouch™ Controller Sold Separately

Already own a unit with the standard controller or a Micro4 digital controller? Now you can upgrade
to touchscreen control with the new SMARTouch™ controller.

SMARTouch™ Controller

The MICRO2T, a high resolution SMARTouch™ touch screen controller, provides an “intelligent” and easy-to-use interface to operate one or two Nanoliter Injectors independently or synchronously.

The control screen graphically displays the delivered or remaining volume in your Nanoliter 2010 Injector, along with pertinent injection information (the grouped status, target volume for dispensing, a volume counter, the dispensing rate, the infuse/withdraw mode, the delivered volume and the time the pump has been running). From this screen, you can run the pump(s) manually or automatically, change the direction of the pump or access the configuration screen.

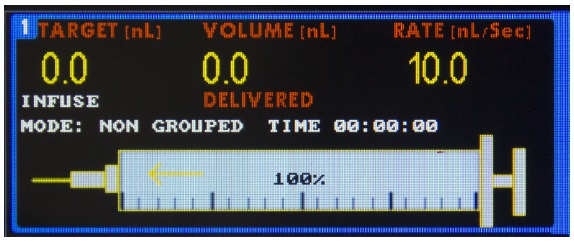

The pump display area shows vital information for each pump attached to the controller.

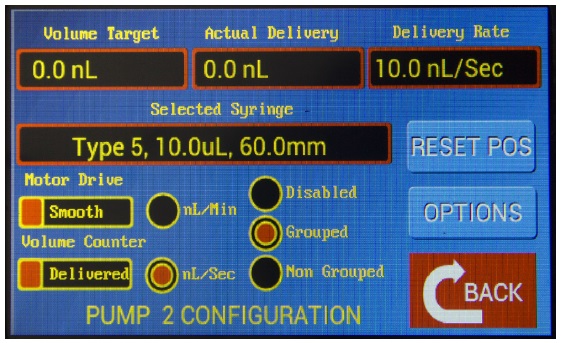

The Configuration screen allows you to set the limits of travel and define parameters for a selected pump.

With the touch of a button on the Command screen you can access all the configuration parameters. Set the target volume and delivery rate, set the mode (Motor Drive), select nL/min. or nL/sec. for the delivery rate, and group or ungroup the pumps.

An optional footswitch can be plugged into a connector on the rear of the controller for “hands free” start/stop operation. A USB port on the rear of the controller can be used to connect it to a computer for remote control.

Specifications

REMOTE CONTROL	Yes
GLASS OD	1.14 mm
GLASS ID	0.5 mm
LINEAR TRAVEL PER FULL STEP	12.7 μm/step
INJECTION SPEED	Slowest 1.617 nL/min Fastest* 1287 nL/sec*
SMALLEST VOLUME	0.1 nL
LARGEST SINGLE STEP VOLUME	4527 nL
SHIPPING WEIGHT	3 lb. (1.1 kg)

*Ejection rate is limited by pipette tip opening size. Controller injection rate should not be set to exceed pipette capacity.
