Stereotaxic Frames

Stereotaxic Frames


World Precision Instrument stereotaxic frames are offered in two styles of frames:

  • U-frame Stereotaxic designed for use with rats and small animals. It is ideal for researchers in need of a versatile, reliable instrument for stereotaxic procedures with small animals. These stereotaxic frames are built around the time-proven U-frame design concept, providing stability and adaptability to most species. Precision alignment ensures accurate placement of electrodes, micropipettes and other devices.
  • Compact Mouse Stereotaxic for use with mice and neonatal rats. Designed specifically for knock-out and transgenic mice these compact stereotaxic frames use an adapter block to replace the traditional U-frame assembly. This provides easy access to the animal and offers an open working area for extra surgical instruments.

U-frame Stereotaxic Models

  • Base plate size : 400 mm x 255 mm
  • Working distance in 3 dimension is 80 mm with precise alignment to 0.1 mm resolution for non-digital models and 0.01 mm for digital models
  • Vertical direction: 180° rotation and lock at any angles
  • Horizontal direction: 360° rotation and lock at any angles
  • Dual-lead screws ensure stable, accurate and smooth manipulation
  • Curved nose clamp design secures the head of animals
  • Ear bars with laser engraved scales (1mm resolution)



Arms Movement Digital Type Ear bars Part
Single Manual No Standard (Vernier Scale)
100 microns (0.1 mm) Resolution
Standard 502600
Non-rupture 502650
Yes Standard (Vernier Scale)
10 microns (0.01 mm) Resolution
Standard 502300
Non-rupture 502350
Dual Manual No Standard (Vernier Scale)
100 microns (0.1 mm) Resolution
Standard 502603
Non-rupture 502653
Yes Standard (Vernier Scale)
10 microns (0.01 mm) Resolution
Standard 502303
Non-rupture 502353



Compact Mouse Stereotaxic Models

  • Base plate size : 255 mm x 255 mm
  • Height adjustment range for palate clip: 20 mm (0 to 20 mm)
  • Height adjustment range for ear bars: 20 mm (0 to 20 mm)
  • Working distance in 3 dimension is 80 mm with precise alignment to 0.1 mm resolution for non-digital models and 0.01 mm for digital models
  • Vertical direction: 180° rotation and lock at any angles
  • Horizontal direction: 360° rotation and lock at any angles
  • Dual-lead screws ensure stable, accurate and smooth manipulation
  • Ear bars made of polyoxymethlene resin, unique and light
  • Ear bars with laser engraved scales (1mm resolution)



Arms Movement Digital Type Part
Single Manual No Standard (Vernier Scale)
100 microns (0.1 mm) Resolution
502610
Yes Standard (Vernier Scale)
10 microns (0.01 mm) Resolution
504926
Dual No Standard (Vernier Scale)
100 microns (0.1 mm) Resolution
502611
Yes Standard (Vernier Scale)
10 microns (0.01 mm) Resolution
504927


Choose Quantity
504926

504926

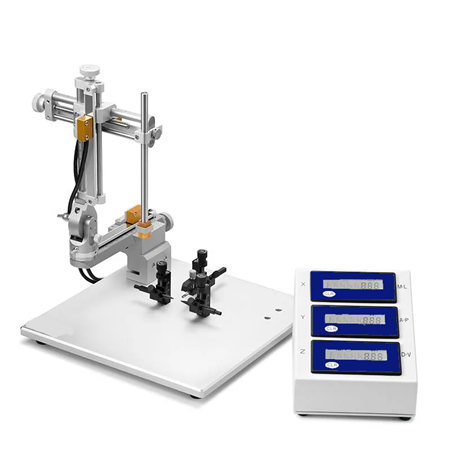

Digital Compact Mouse Stereotaxic Frame, Single Manipulator, Portable

  • 10 micron 3-axes left-hand manipulator arm with digital display
  • Mouse snout clamp and tooth bar, dual sided ear bars, and a corner clamp probe holder


Choose Quantity
502610

502610

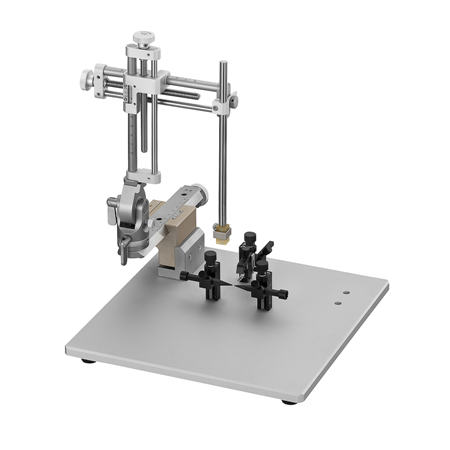

Compact Mouse Stereotaxic Frame, Single Manipulator Arm, Portable

  • 100 micron 3-axes left-hand manipulator arm
  • Mouse snout clamp and tooth bar, dual sided ear bars, and a corner clamp probe holder


Choose Quantity
504927

504927

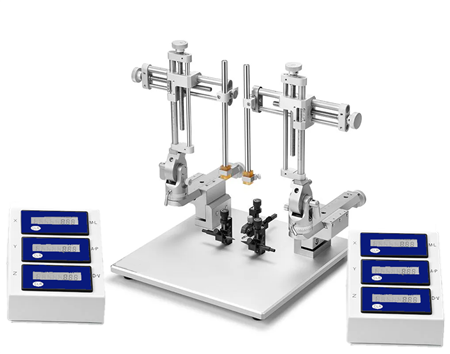

Digital Compact Mouse Stereotaxic Frame, Dual Manipulator, Portable

  • 10 micron 3-axes left- and right-hand manipulator arms with digital displays
  • Mouse snout clamp and tooth bar, dual sided ear bars, and a corner clamp probe holder


Choose Quantity
502611

502611

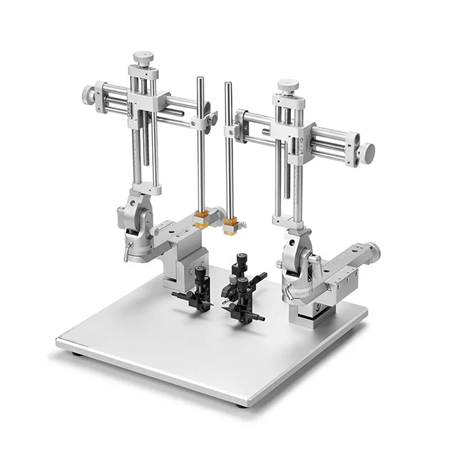

Compact Mouse Stereotaxic Frame, Dual Manipulator Arms, Portable

  • 100 micron 3-axes left- and right-hand manipulator arms
  • Mouse snout clamp and tooth bar, dual sided ear bars, and a corner clamp probe holder


Choose Quantity
502300

502300

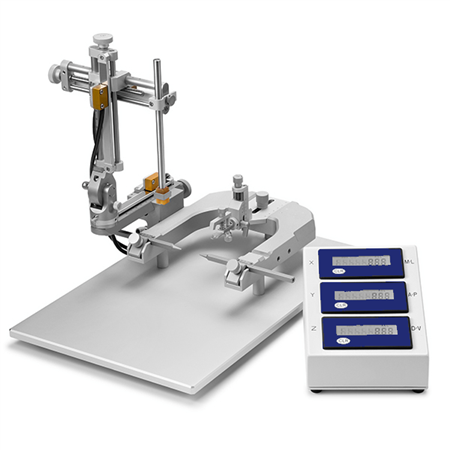

Digital Rat Stereotaxic U-Frame with 18° Ear Bars, includes

  • U-Frame
  • 10 micron 3-axes, left-hand manipulator arm with digital controller and display
  • Rat adaptor; standard 18° ear bars, corner clamp probe holder


Choose Quantity
502350

502350

Digital Rat Stereotaxic U-Frame with 45° Ear Bars, includes

  • U-Frame
  • 10 micron 3-axes, left-hand manipulator arm with digital controller and display
  • Rat adaptor; non-rupture 45° ear bars, corner clamp probe holder


Choose Quantity
502600

502600

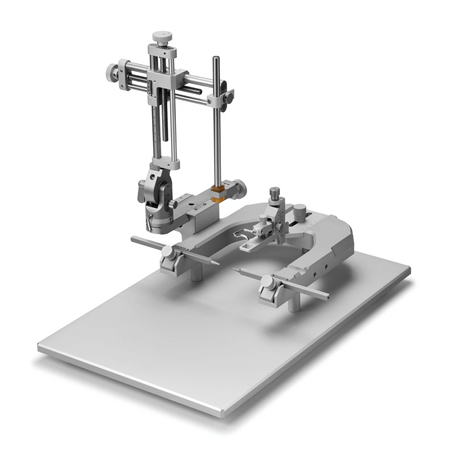

Rat Stereotaxic U-Frame with 18° Ear Bars, includes:

  • U-Frame
  • 100 micron 3-axes, left-hand manipulator arm
  • Rat adaptor; standard 18° ear bars, corner clamp probe holder


Choose Quantity
502650

502650

Rat Stereotaxic U-Frame with 45° Ear Bars, includes:

  • U-Frame
  • 100 micron 3-axes, left-hand manipulator arm
  • Rat adaptor; non-rupture 45° ear bars, corner clamp probe holder


Choose Quantity
502303

502303

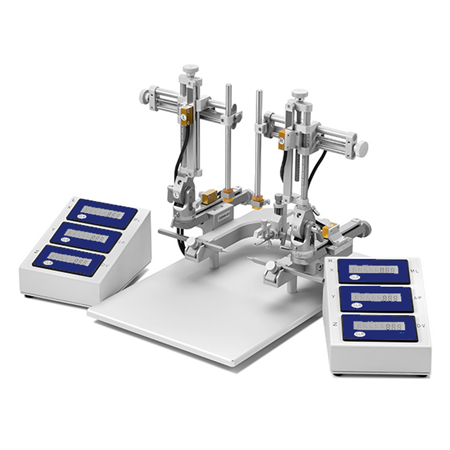

Digital Dual Rat Stereotaxic U-Frame with 18° Ear Bars, includes:

  • U-Frame
  • 10 micron 3-axes, left- and right-hand manipulator arms with digital controllers and displays
  • Rat adaptor; standard 18° ear bars, corner clamp probe holder


Choose Quantity
502353

502353

Digital Dual Rat Stereotaxic U-Frame with 45° Ear Bars, includes:

  • U-Frame
  • 10 micron 3-axes, left- and right-hand manipulator arms with digital controllers and displays
  • Rat adaptor; non-rupture 45° ear bars, corner clamp probe holder


Choose Quantity
502603

502603

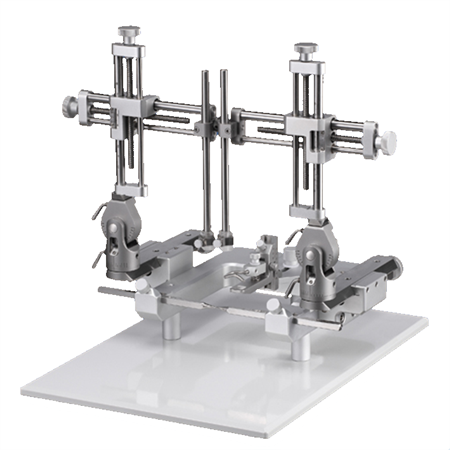

Dual Rat Stereotaxic U-Frame with 18° Ear Bars, includes:

  • U-Frame
  • 100 micron 3-axes, left- and right-hand manipulator arms
  • Rat adaptor; standard 18° ear bars, corner clamp probe holder


Choose Quantity
502653

502653

Dual Rat Stereotaxic U-Frame with 45° Ear Bars, includes:

  • U-Frame
  • 100 micron 3-axes, left- and right-hand manipulator arms
  • Rat adaptor; non-rupture 45° ear bars, corner clamp probe holder
