Home > Products > Cell & Tissue > Incubators

Incubators

CO2 incubator - Standard version

CO2 incubator with O2 control

CO2 incubator with active humidification

CO2 incubator with O2 control and active humidification

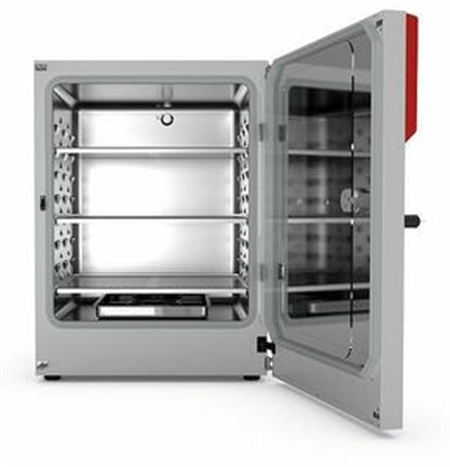

The BINDER CB series CO2 incubator is the premium class among the CO2 incubators. It is suitable for all sensitive incubation applications and ensures optimal cell growth.

A BINDER CB series CO2 incubator can perform complex cultivation experiments as well as specific enviromental conditions.

Designation	CB260-230V¹	CB260-230V-O¹	CB260-230V-F¹	CB260-230V-OF¹
Option model	Standard	with O2 control	with active humidification	with O2 control 0.2–20% and active humidification
Order number	9040-0147	9040-0148	9040-0149	9040-0150
Data
Serie	CB	CB	CB	CB
Performance Data Temperature
Recovery time after 30 seconds door open at 37 °C [min]	6	6	6	6
Temperature fluctuation at 37 °C [± K]	0.1	0.1	0.1	0.1
Temperature range +4 °C above ambient temperature to	60	60	60	60
Temperature range +5 °C above ambient temperature to	60	60	60	60
Temperature variation at 37 °C [± K]	0.4	0.4	0.4	0.4
Performance Data Climate
Humidity range [% RH]	90…95	90…95	90…95	90…95
CO2-Data
CO2 measurement	IR	IR	IR	IR
CO2 range [Vol.-% CO2]	0…20	0…20	0…20	0…20
CO2 Recovery time after 30 seconds door open at 5 Vol.-% CO2 [min]	5	5	5	5
O2-Data
O2 control ranges with option: O2 range [Vol.-% O2]	-	10…95	-	10…95
O2 Recovery time after 30 seconds door open at 5 Vol.-% O2 [min]	-	15	-	15
Standard O2 control ranges: O2 range [Vol.-% O2]	-	0.2…20	-	0.2…20
Electrical data
Nominal power [kW]	1.5	1.5	1.5	1.5
Phase (Nominal voltage)	1~	1~	1~	1~
Power frequency [Hz]	50/60	50/60	50/60	50/60
Rated Voltage [V]	200…230	200…230	200…230	200…230
Unit fuse [A]	10	10	10	10
Doors
Inner doors	1	1	6	6
Unit doors	1	1	1	1
Housing dimensions not incl. fittings and connections
Depth net [mm]	785	785	785	785
Height net [mm]	1020	1020	1020	1020
Width net [mm]	740	740	740	740
Internal Dimensions
Depth [mm]	575	575	575	575
Height [mm]	750	750	750	750
Width [mm]	620	620	620	620
Measures
Interior volume [L]	267	267	267	267
Load per rack [kg]	10	10	10	10
Net weight of the unit (empty) [kg]	125	125	125	125
Permitted load [kg]	40	40	40	40
Wall clearance back [mm]	100	100	100	100
Wall clearance sidewise [mm]	50	50	50	50
Environment-specific data
Energy consumption at 37 °C [Wh/h]	65	65	65	65
Sound-pressure level [dB(A)]	41	41	41	41
Fixtures
Number of shelves (std./max.)	3/8	3/8	3/8	3/8
Performance Data Temperature
Recovery time after 30 seconds door open at 37 °C [min]	6	6	6	6
Temperature fluctuation at 37 °C [± K]	0.1	0.1	0.1	0.1
Temperature range +4 °C above ambient temperature to	60	60	60	60
Temperature range +5 °C above ambient temperature to	60	60	60	60
Temperature variation at 37 °C [± K]	0.4	0.4	0.4	0.4
Performance Data Climate
Humidity range [% RH]	90…95	90…95	90…95	90…95
CO2-Data
CO2 measurement	IR	IR	IR	IR
CO2 range [Vol.-% CO2]	0…20	0…20	0…20	0…20
CO2 Recovery time after 30 seconds door open at 5 Vol.-% CO2 [min]	5	5	5	5
O2-Data
O2 control ranges with option: O2 range [Vol.-% O2]	-	10…95	-	10…95
O2 Recovery time after 30 seconds door open at 5 Vol.-% O2 [min]	-	15	-	15
Standard O2 control ranges: O2 range [Vol.-% O2]	-	0.2…20	-	0.2…20
Electrical data
Nominal power [kW]	1.5	1.5	1.5	1.5
Phase (Nominal voltage)	1~	1~	1~	1~
Power frequency [Hz]	50/60	50/60	50/60	50/60
Rated Voltage [V]	200…230	200…230	200…230	200…230
Unit fuse [A]	10	10	10	10
Doors
Inner doors	1	1	6	6
Unit doors	1	1	1	1
Housing dimensions not incl. fittings and connections
Depth net [in]	30.93	30.93	30.93	30.93
Height net [in]	40.2	40.2	40.2	40.2
Width net [in]	29.16	29.16	29.16	29.16
Internal Dimensions
Depth [in]	22.65	22.65	22.65	22.65
Height [in]	29.55	29.55	29.55	29.55
Width [in]	24.43	24.43	24.43	24.43
Measures
Interior volume [cu.ft.]	9.4	9.4	9.4	9.4
Load per rack [lbs]	22	22	22	22
Net weight of the unit (empty) [lbs]	276	276	276	276
Permitted load [lbs]	88	88	88	88
Wall clearance back [in]	3.94	3.94	3.94	3.94
Wall clearance sidewise [in]	1.97	1.97	1.97	1.97
Environment-specific data
Energy consumption at 37 °C [Wh/h]	65	65	65	65
Sound-pressure level [dB(A)]	41	41	41	41
Fixtures
Number of shelves (std./max.)	3/8	3/8	3/8	3/8

All technical data is specified for unloaded units with standard equipment at an ambient temperature of +22 °C ±3 °C and a power supply voltage fluctuation of ±10%. The temperature data is determined to BINDER factory standard following DIN 12880, observing the recommended wall clearances of 10 % of the height, width, and depth of the inner chamber. All indications are average values, typical for units produced in series. We reserve the right to change technical specifications at any time.
