ENDOHM-12G

ENDOHM-12G

EndOhm for 12mm Culture Cups (12 wells per plate)



Choose Quantity
  • Overview
  • Specifications
  • Accessories
  • Citations
  • Related Products

Overview

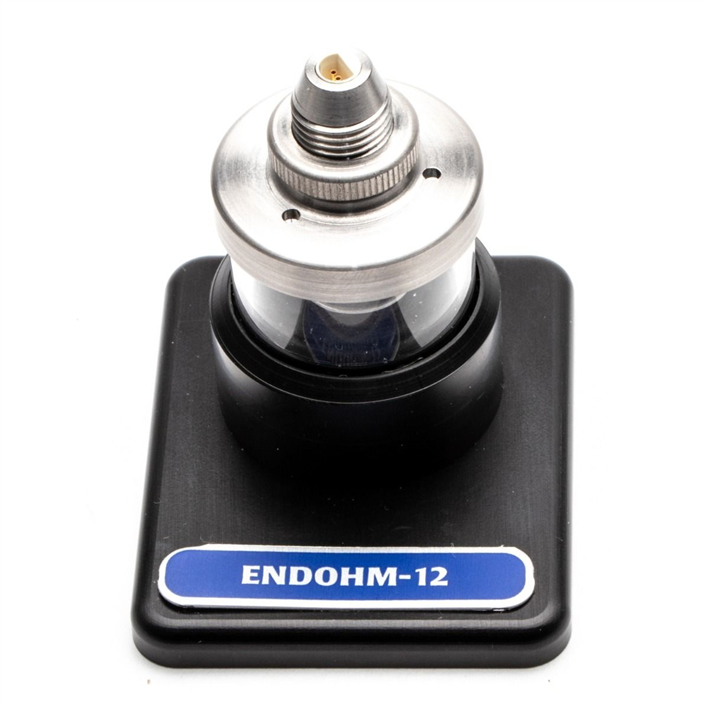

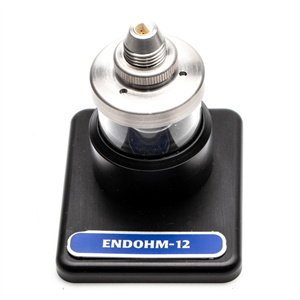

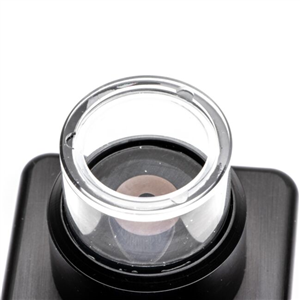

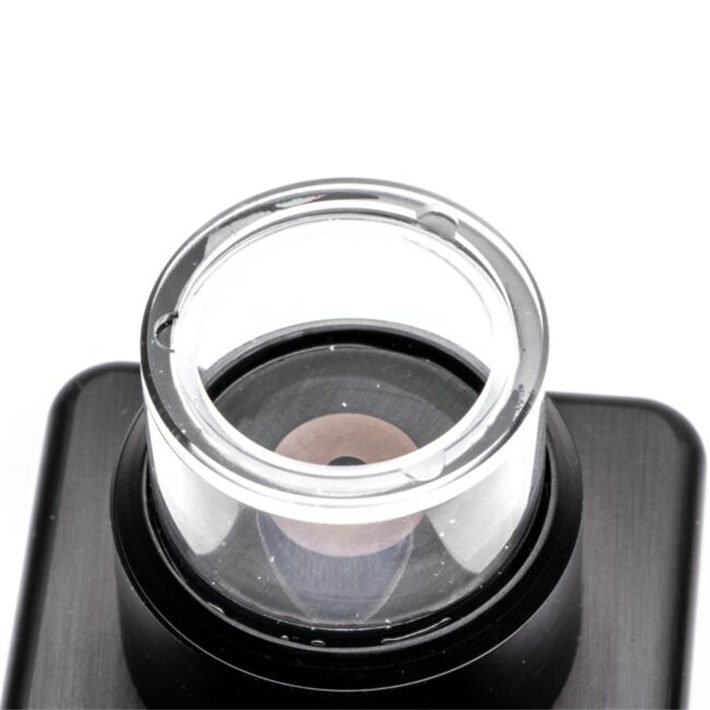

ENDOHM-12G ENDOHM-12G ENDOHM-12G Inside

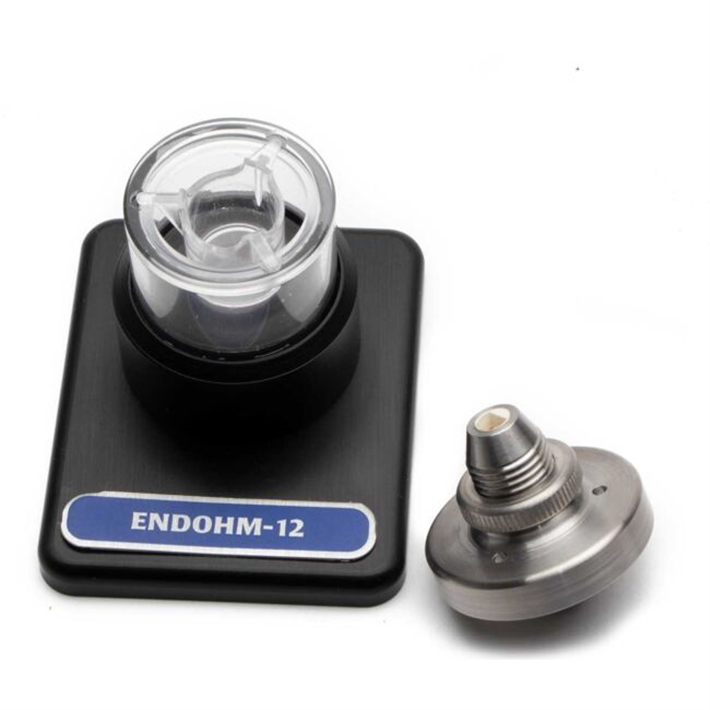

There are 3 images available to view - click to enlarge and scroll through the product gallery.

EndOhm Instruction Manual
/ Download as PDF

EndOhm Data Sheet
/ Download as PDF

For TEER measurement of epithelial and endothelial cell cultures in individual cups

  • Compatible with legacy meters including EVOM, EVOM2™ and Millipore ERS and ERS2 meters (see options section for compatible models for EVOM3,  EVOM Manual™ meters)

Benefits & Features

  • Stability and reproducibility superior to the STX4 electrodes to 1% tolerance
  • Symmetrical electrode pattern disperses test current uniformly
  • Tri-leg supports offer mechanical stability and the membrane is held parallel to the electrodes
  • Simple test procedure to verify electrode performance
  • Adjustable apical electrode height
  • Crystal clear glass chamber allows visualization of apical electrode positioning
  • The new EndOhm chamber upper mount is made of polycarbonate and unaffected by alcohol
  • The glass chamber is easier to clean and more scratch resistant than the prior version. The EndOhm is not recommended for incubator use due to risk of the glass cracking
  • Crystal clear glass chamber allows visualization of apical electrode positioning
  • Options for 6, 12 or 24 well plates with removable inserts

Applications

  • TEER measurement for removable culture cup systems using EVOM meters for endothelial and epithelial cell cultures

Options

For Legacy Meters Including EVOM, EVOM2™ and Millipore ERS and ERS2 meters

Part # Description
ENDOHM-24G-SNAP EndOhm for 24mm and Costar Snapwell Culture Cups (6 wells per plate)
ENDOHM-12G EndOhm for 12mm Culture Cups (12 wells per plate)
ENDOHM-6G EndOhm for 6mm Culture Cups (24 wells per plate)



For EVOM3 and EVOM Manual™ meters

Part # Description
EVM-EL-03-01-03 EndOhm for 24mm and Costar Snapwell Culture Cups (6 wells per plate)
EVM-EL-03-01-02 EndOhm for 12mm Culture Cups (12 wells per plate)
EVM-EL-03-01-01 EndOhm for 6mm Culture Cups (24 wells per plate)



TEER measurement in individual cups

Using WPI’s EVOM resistance meter, Endohm chambers provide reproducible resistance measurements of endothelial and epithelial monolayers in culture cups. Transfer cups from their culture wells to the Endohm chamber for measurement rather than using hand-held electrodes. The chamber and the cap each contain a pair of concentric electrodes: a voltage-sensing silver/silver chloride pellet in the center plus an annular current electrode. The height of the top electrode can be adjusted to fit cell culture cups of different manufacture.

Make more precise measurements with Endohms

Endohm’s symmetrically opposing circular disc electrodes, situated above and beneath the membrane, allow a more uniform current density to flow across the membrane than with STX4 electrodes. The background resistance of a blank insert is reduced from 150 Ω (when using WPI’s hand-held STX4 electrodes) to less than 5 Ω. With Endohm’s fixed electrode geometry, variation of readings on a given sample is reduced from 10-30 Ω with STX4 electrodes (depending on the experience of the user) to 1-2 Ω. Compared with other resistance measurement methods, Endohm with EVOM meters offer a much more convenient and economic solution to “leaky tissue” measurement. Because of the uniform density of the AC square wave current from EVOM Meter, errors owing to electrode polarization or membrane capacitance are largely eliminated. Endohm together with EVOM Manual™ offers the most accurate and economical endothelial ohmmeter now available. To date, cups from Corning, Millipore, Nunc, Greiner and BD Falcon have been tested. Endohm chambers may be sterilized with EtO, alcohol or a bactericide; not autoclavable.

NOTE: EndOhm chambers have Ag/AgCl electrodes. If you are measuring for extended periods of time, you should consider any potential cytotoxic issue from long term exposure to silver to your cells.

Resources

Knowledge base - EVOM™ Electrodes & EndOhm Chambers Articles

Videos



Specifications

Compatibility Charts



The ENDOHM-12G is compatible with the following chambers:

Corning Millipore Membrane Diameter (mm) Growth Surface Area (cm²) Membrane Pore Size (μm)
3401   12  1.12 0.4
3402 PITP01250 12   1.12 3.0
3403 PITT01250 12   1.12 3.0
3493   12 1.12 0.4
3494   12 1.12 3.0
3460 PIHT15R48*
PET Insert
12 1.12 0.4
  PIRP15R48*
PET Insert
12 1.12 1.0
3462 PISP15R48*
PET Insert
12 1.12 3.0
  PIMP15R48*
PET Insert
12 1.12 5.0
  PIEP30R48*
PIEP15R48*
PET Insert
12 1.12 8.0

* The tri-supports legs must be balance correctly so that the filter is parallel to the electrodes.

Nunc Pore size (μm) Culture area (cm²)
140652 0.4 1.13
140654 3.0 1.13
140656 8.0 1.13



ThinCertTM Membrane material Pore size [µm] Pore density [cm-2] Optical membrane properties TC surface treatment/Sterile Multiwell plates/ThinCertTM per box
665640 PET 0.4 1 x 108 translucent +/+ 4/48
665641 PET 0.4  2 x 106 transparent +/+ 4/48
665610 PET 1.0  2 x 106 transparent +/+ 4/48
665630 PET 3.0  0.6  x 106 transparent +/+ 4/48
665631 PET 3.0  2 x 106 translucent +/+ 4/48
665638 PET 8.0  0.15 x 106 translucent +/+ 4/48



Millicell Pore size (μm) Qty/pk
MCHT12H48 0.4 48
MCRP12H48 1.0 48
MCSP12H48 3.0 48
MCMP12H48 5.0 48
MCEP12H48 8.0 48



BD Falcon Membrane material Pore size [µm] Pore density [cm-2] Optical membrane properties TC plate (#wells)
353180 PET 0.4 2.0 ± 0.2 x 106 transparent 12
353103 PET 1.0 1.6 ± 0.6 x 106 transparent 12
353181 PET 3.0 8 ± 2 x 105 transparent 12
353182 PET 8.0 6 ± 2 x 104 translucent 12
353494 PET 0.4HD 100 ± 10 x 106 translucent 12
353292 PET 3.0HD 2.0 ± 0.2 x 105 translucent 12

Accessories

Citations

Sheller, R. A., Cuevas, M. E., & Todd, M. C. (2017). Comparison of transepithelial resistance measurement techniques: Chopsticks vs. Endohm. Biological Procedures Online, 19, 4. http://doi.org/10.1186/s12575-017-0053-6

Srinivasan, B., Kolli, A. R., Esch, M. B., Abaci, H. E., Shuler, M. L., & Hickman, J. J. (2015). TEER measurement techniques for in vitro barrier model systems. Journal of Laboratory Automation, 20(2), 107–26. http://doi.org/10.1177/2211068214561025

TORRES, R., PIZARRO, L., CSENDES, A., GARCÍA, C., LAGOS, N., Pasdar, M., … Roskelley, C. (2007). GTX 2/3 EPIMERS PERMEATE THE INTESTINE THROUGH A PARACELLULAR PATHWAY. The Journal of Toxicological Sciences, 32(3), 241–248. http://doi.org/10.2131/jts.32.241

Patil, R. V., Han, Z., Yiming, M., Yang, J., Iserovich, P., Wax, M. B., & Fischbarg, J. (2001). Fluid transport by human nonpigmented ciliary epithelial layers in culture: a homeostatic role for aquaporin-1. American Journal of Physiology - Cell Physiology, 281(4).
