Accessories PZMIII series
Optional Bodies for PZMIII series
| 501352 | PZMIII Binocular Body With 10X Eyepieces, 1X Objective, Eye guards |
| 501379 | PZMTIII Trinocular Body With 10X Eyepieces, 1X Objective, Eye guards |
Optional Stands, Mounts, Bases for PZMIII series
| 501353 | 76 mm Rectangular, Track Stand |
| 504596 | 76 mm Rectangular, Track Stand, Halogen Top & Bottom Illumination (For PZMIII only) |
| 502004 | Boom Stand (Heavy) W/O Focus Mount (requires 502009 Focus Mount for PZMIII) |
| 502005 | Ball Bearing Boom Stand (Heavy) W/O Focus Mount (requires 502009 Focus Mount for PZMIII) |
| 502006 | Boom Clamp Stand (Heavy) (requires 502009 Focus Mount for PZMIII) |
| 502007 | Articulated Arm and Table Clamp W/O Focus Mount (requires 502009 Focus Mount for PZMIII) |
| 502163 | Wall Mount Plate For Articulated Arm 502007 |
| 502009 | Universal Focus Mount for 76 mm PZMIII (Required for BS, AAC, BBS, and BCS) (5/8” pin) |
| 504123 | Post Extension for Heavy Clamp Stand |
| 504929 | LED Microscope Stand, 12.5 inch Post |
| 503051 | Manual Stage For PZMIII (Fits 503102 Base Only) |
| 503102 | Rectangular 76 mm Base Post Stand for PZMII |
Optional Eyepieces for PZMIII series
| 501369 | 10× Wide Field Eyepiece for PZMIII (pair) |
| 501370 | 15× Wide Field Eyepiece for PZMIII (pair) |
| 501371* | 20× Wide Field Eyepiece for PZMIII (pair) |
| 501372 | 25× Wide Field Eyepiece for PZMIII (pair) |
| 504128 | 10× Eyepiece with Reticle (matches 10× eyepiece #501369) |
| 504129 | 20× Eyepiece with Reticle (matches 20× eyepiece #501371) |
*Long working distance (LWD) option with 501371 and 501375 on a trinocular microscope shows nearly the same scene on the screen as the viewer sees in the eyepieces.
Optional Objectives for PZMIII series
| 501373 | 0.3×, Long Working Distance Objective |
| 501375* | 0.5×, Long Working Distance Objective |
| 501376 | 0.75×, Long Working Distance Objective |
| 501377 | 1.5×, Long Working Distance Objective |
| 501378 | 2.0×, Long Working Distance Objective |
*Long working distance (LWD) option with 501371 and 501375 on a trinocular microscope shows nearly the same scene on the screen as the viewer sees in the eyepieces.
Other Accessories for PZMIII series
| 501381 | 0.5× CCD Camera Coupler, C-Mount |
| Cameras & Photo/Video Adapters | |
| Light Sources |

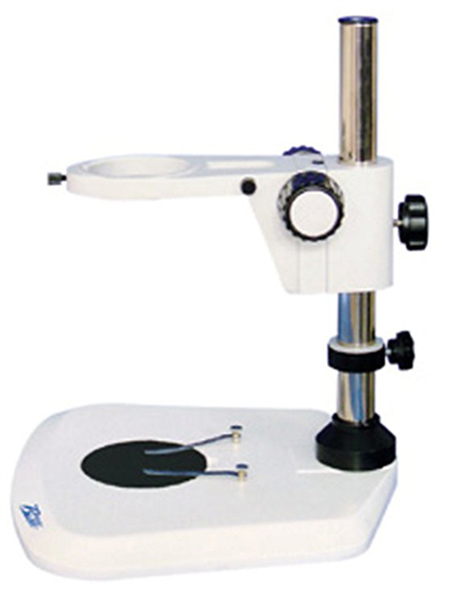

501353
Fan Post Stand with 76mm Focus Mount for PZMIII series. Base 335x305 mm (13.1 x 12”) base, Vertical post 39 cm (15.4”). Shipping Weight 10lb.
502004
Boom Stand without focus mount, requires 502009 focus mount for PZMIV and PZMIII series. Vertical post 52 cm (21”) Horizontal Base 285 x 260x 32 (11 ¼” x10 ¼”). Horizontal bar rotation 0, 90 and 45 degrees. Shipping Weight 45lb.
502005
Ball Bearing Boom Stand without focus mount, requires 502009 focus mount for PZMIV and PZMIII series. 40cm (16”) horizontal stroke length, 39cm (15.1”) Vertical post, w/22.5cm (8.8”) extension. Base 285 x 260 x 32 (11.25” x10.25”), Shipping weight 49 lb.
502006
Boom Clamp Stand (heavy) without focus mount, requires 502009 focus mount for PZMIV and PZMIII series. Vertical post: 39cm (15.1”), Horizontal post: 52cm (21”), Base: 285 x 260x 32mm (11.25” x 10.25”). Articulation range: 46cm (18”), Arm lengths: L-R 23, 40, 30cm (9”, 16”, 12”). Shipping Weight: 46 lb.

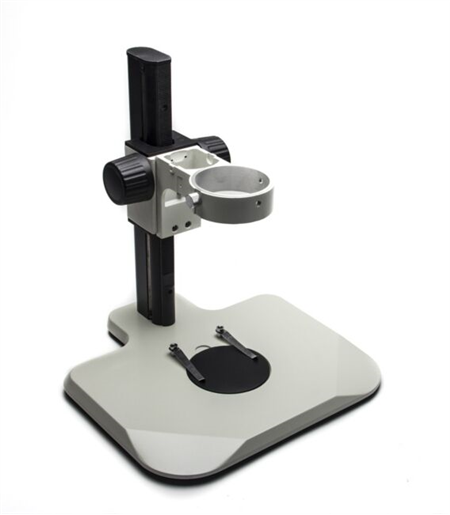

502002
Fan Track Stand With 76 mm Mount
This post stand comes with a 95mm plastic plate that is white on one side and black on the other. It is perfect for any microscope requiring a 76mm focus mount.
- Base Dimension:335mm×305mm×21mm (12.5 deep ×12.75" wide).
- Table Height 14" (355mm)
- Vertical Track Height 13" (33cm)
- Focusing distance 175mm
- Black and white plate 95 mm diameter
- Distance from the track to the plate centerline 128mm
- Weight 5.5 Kg

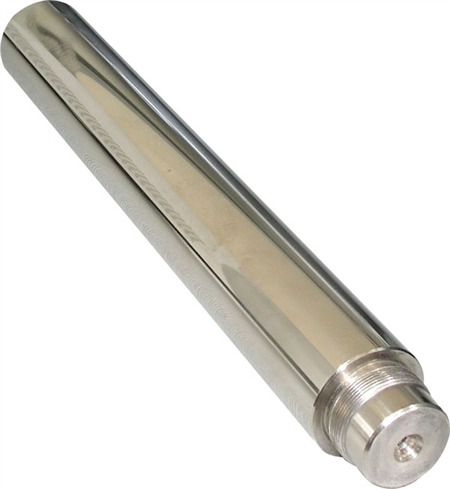

504123
Extension for heavy stands
502007
Articulated Arm and Table Clamp without focus mount, requires 502009 focus mount for PZMIV and PZMIII series. Clamp opens to 50mm, Articulation range 46cm (18”), Arm lengths L-R 23, 40, 30cm (9”, 16”, 12”) +37cm (+13.25”) –12cm (– 4.3/4”). Shipping Weight: 21 lb.
502163
Wall-Mount Plate for Articulated Arm (502007). Dimensions: 6 in. x 6 in. Mount your microscope on the wall for convenient storage when space is tight. Includes wall bolts (Metric). Shipping Weight 9 lb.

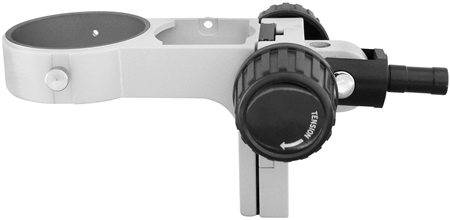

502009
Universal Focus Mount for 76 mm PZMIV and PZMIII
501369
Wide Field 10x Eyepieces (pair) for PZMIII
501370
Wide Field 15x Eyepieces (pair) for PZMIII
501371
Wide Field 20x Eyepieces (pair) for PZMIII
501372
Wide Field 25x Eyepieces (pair) for PZMIII
504128
Reticle in 10x Eyepiece (1) for PZMIII
504129
Reticle in 20x Eyepiece (1) for PZMIII
501373
0.3X Long Working Distance Objective Lens for PZMIII
501375
0.5X Long Working Distance Objective Lens for PZMIII
501376
0.75X Long Working Distance Objective Lens for PZMIII
501377
1.5X Long Working Distance Objective Lens for PZMIII
501378
2.0X Long Working Distance Objective Lens for PZMIII
501381
0.5x C-Mount CCD Camera Coupler for PZMIII. Use with cameras that have 0.5 inch CCD.
503051
Manual Stage for for PZMIII. Mounts in the circular opening in the PZMiii base. XY travel distance: 75x56mm. Glass size: 116x96mm. Active diameter: 37.6mm. Dimensions: 180x155x27mm. Fits 503102 base only
503102
Rectangular Base Post Stand for PZMIII. 76mm Post Stand (PZMIII). Weight: 6.6lbs, 3kg, Size of the base: 12.6×12.01× 0.63" (320×305×16mm), Microscope holder: 76mm. Max. size from vertical post to the front of base: 10.75" (273mm), Vertical post: diameter 1.26" (32mm), height 12.01" (305mm), Extension post: 5.9" (150mm). Black and white plate 95 mm diameter.
