LPF-30

LPF-30

Lo-Pass Filter

  • Overview
  • Specifications
  • Accessories
  • Citations
  • Related Products

Overview

LPF-30

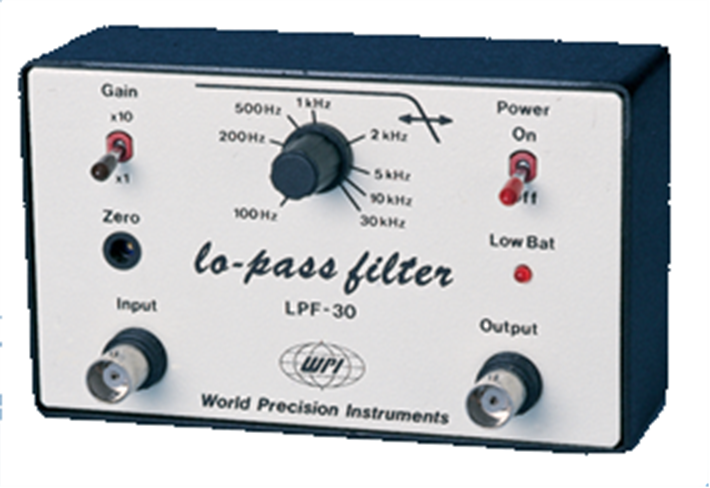

There are 1 images available to view - click to enlarge and scroll through the product gallery.

LPF-30 Instruction Manual
/ Download as PDF

  • Filter analog signals before digital conversion
  • Switch selectable gain of x1 or x10
  • Complete and ready to use

Features

Upper frequency band limit can be smoothly varied between 100 Hz and 30 kHz using a single knob. WPI’s new low-pass filter is small, consumes little power, and can be located almost anywhere in your workspace. Features switch-selectable gain of ×1 or ×10 and low noise. An ideal tool for filtering an analog signal before digital conversion by data acquisition systems.

Specifications

INPUT IMPEDANCE 1 MOhm
GAIN x1, x10
BANDWIDTH FILTER  100 Hz to 30 kHz (2 pole R/C)
SHARPNESS 40 dB/decade
EQUIVALENT SHORTED INPUT NOISE AT x10 GAIN: 100 Hz Bandwidth 10 uVpp
EQUIVALENT SHORTED INPUT NOISE AT x10 GAIN: 30 kHz Bandwidth 30 uVpp
OUTPUT VOLTAGE RANGE  ±8 V
MAX. INPUT VOLTAGE  ±10 V
OUTPUT RESISTANCE  100 Ohm
LOW BATTERY INDICATOR  LED lights when approximately 60 hours of battery life remain
POWER 2 nine-volt alkaline batteries, supplied
BATTERY LIFE  About 400 hours
DIMENSIONS 5 x 3 x 2 inches (13 x 8 x 5 cm)
SHIPPING WEIGHT  2 lb (0.9 kg)
