ISO-NOP3020

ISO-NOP3020

Nitric Oxide Sensor - 30um


Choose Quantity
  • Overview
  • Specifications
  • Accessories
  • Citations
  • Related Products

Overview

ISO-NOP3020

There are 1 images available to view - click to enlarge and scroll through the product gallery.

Instruction Manual
/ Download as PDF

  • Requires cable 91580 (sold separate)
  • Response Time:
  • Lowest Detection Limit: 1 nM
  • Sensitivity: 1.4 pA/nM
  • Application: Microvessels

30 micron sensor with exceptional performance

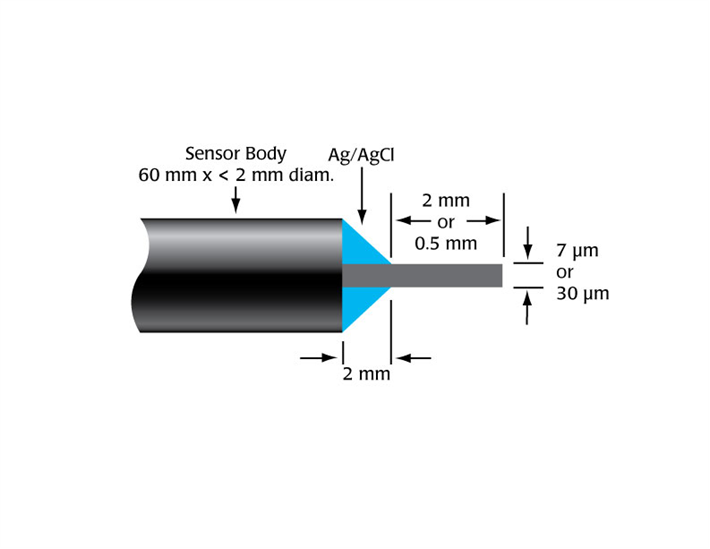

The ISO-NOP30 has a tip diameter of 30 microns and is available in two different tip lengths (ISO-NOP3020 has tip length of 2 mm, ISO-NO3005  has tip length of 0.5 mm). The response is linear over a wide dynamic concentration range of NO. The design is based on a single carbon fiber coated with WPI's NO-selective membrane. A detection limit of approximately 1 nM NO makes these electrodes ideal for use in tissues and microvessels.

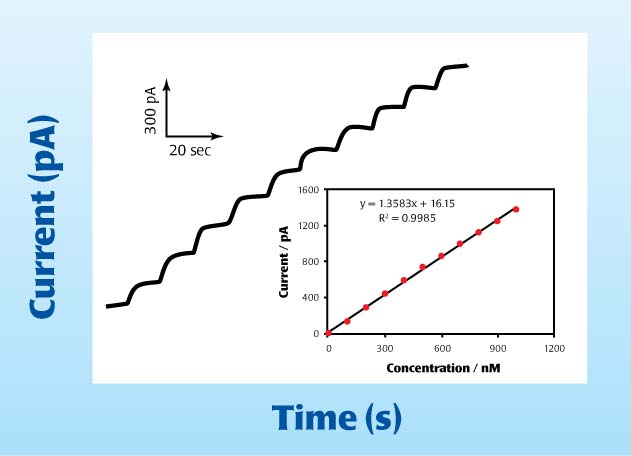

The response of a 7μm NO sensor (ISO-NOP007) to successive additions of NO (100nM). Inset shows the linearity of the resulting calibration plot.

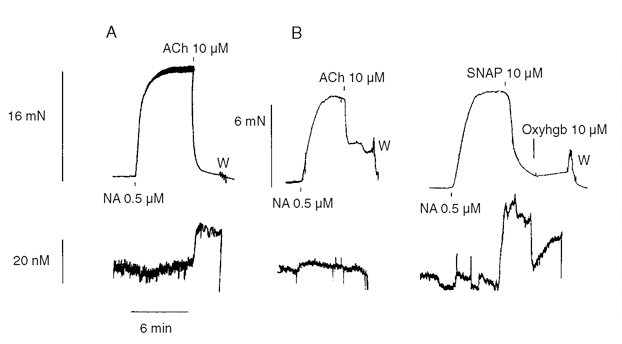

Simultaneous measurement of force (top trace) and changes of NO concentration (lower trace) in (A) the rat superior mesenteric artery relaxed with ACh and (B) a small human artery relaxed with ACh and SNAP. In this artery oxyhaemoglobin (oxyHb) partly reversed the increase in NO concentration with only a small change in force. [U. Simonsen, et al., J. Physiol., 1999, 516: 271-282.]

Specifications

Outside Diameter  30μm
Available Length   2mm
Response Time   < 3 seconds
Lowest Detection Limit/Range 1nM
Nominal Sensitivity-New sensor   ≥1.5pA/nM
Baseline Drift   none
Poise Voltage  865mV
Typical Quiescent Baseline Current, 25°C 500pA
Acceptable Baseline Range   500-5000pA
Polarization Time   1+ hours



Accessories

Citations

RelatedItems

TBR1025

TBR1025

One-Channel Free Radical Analyzer

View details...

TBR4100

TBR4100

Four-Channel Free Radical Analyzer

View details...
