Joystick Controlled Micromanipulator (left-handed)

Choose Quantity
  • Overview
  • Specifications
  • Accessories
  • Citations
  • Related Products

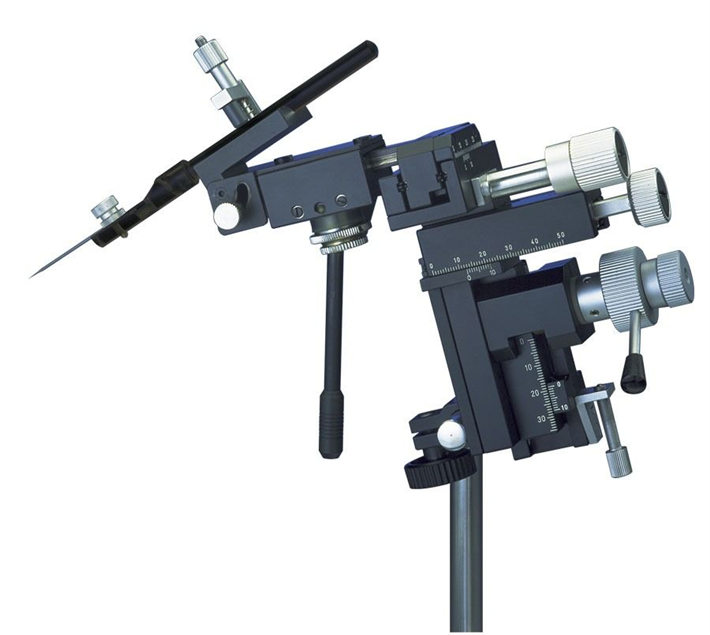

MMJL Joystick Controlled Manual Micromanipulator

There are 1 images available to view - click to enlarge and scroll through the product gallery.

  • Easy steering motion that translates normal hand movement into smooth sub-millimeter shifts
  • Fine adjustment for the X and Y axes can be controlled by the joystick

Joystick-controller micromanipulator

Specially adapted for use with the Nanoliter Injector for oocyte injection and similar applications, this joystick controlled micromanipultor allows an easy "steering" motion that translates normal hand movement into smooth submillimeter shifts. Viewed microscopically, movement of the tool-tip corresponds naturally to hand movement, so accurate resolution is intuitive and quick. All fine adjustment can be controlled by the joystick. Pivoting forward, backward, or laterally gives precise x-y adjustment. For added convenience, a separate coarse control lever is also provided for quick raising and lowering. A stop screw - which is set once resolution is achieved - eliminates refocusing and streamlines repetitive work by guiding the tip to its previous focussing plane. The stop screw also prevents the tool-tip from being broken during sudden lowering and eliminates downward drift - placement is stable enough for even extended use. Because the probe holder tilts a full 90°, the tooltip pivots easily for precise positioning. Rack-and-pinion drive, V-shaped guideways, and cross roller bearings eliminate backlash, slipping, and sticking. All contact parts milled from hardened steel for precise performance and long life.

Joystick travel

0.35 mm to 3.5 mm, depending on reduction gear ratio setting (adjustable between 1:15 and 1:150).


Travel Range: X-axis 37 mm
Travel Range: Y-axis 20 mm
Travel Range: Z-axis 25 mm
Resolution: X-axis 0.1 mm
Resolution: Y-axis 0.1 mm
Resolution: Z-axis 0.1 mm
Joystick (X,Y axis) 0.35 - 3.5 mm
Shipping Weight: 4 lbs (1.8 kg)
