Silver Filled Conductive Epoxy

  • Use in wire bonding applications
  • Connect conductors that can't be soldered
  • Construct or connect Ag/AgCl pellets


Choose Quantity
  • Overview
  • Specifications
  • Accessories
  • Citations
  • Related Products

Overview

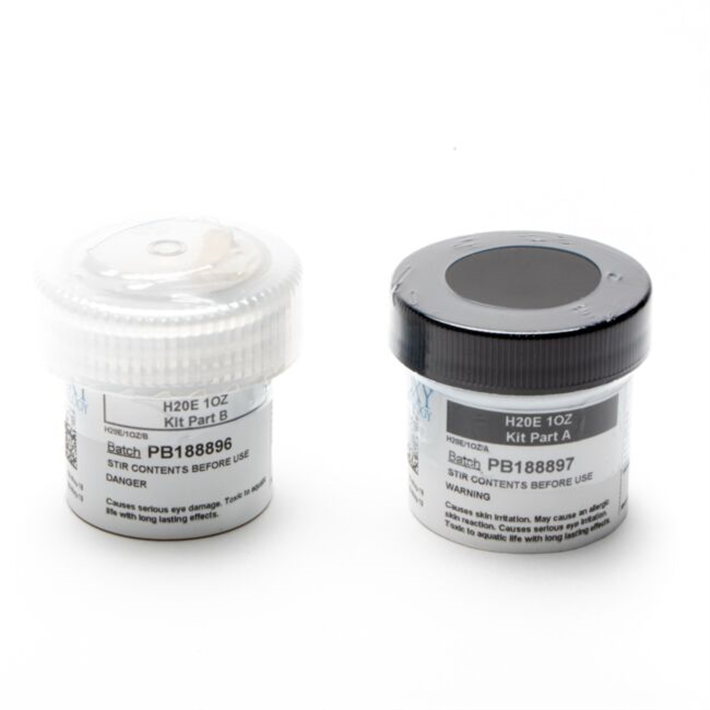

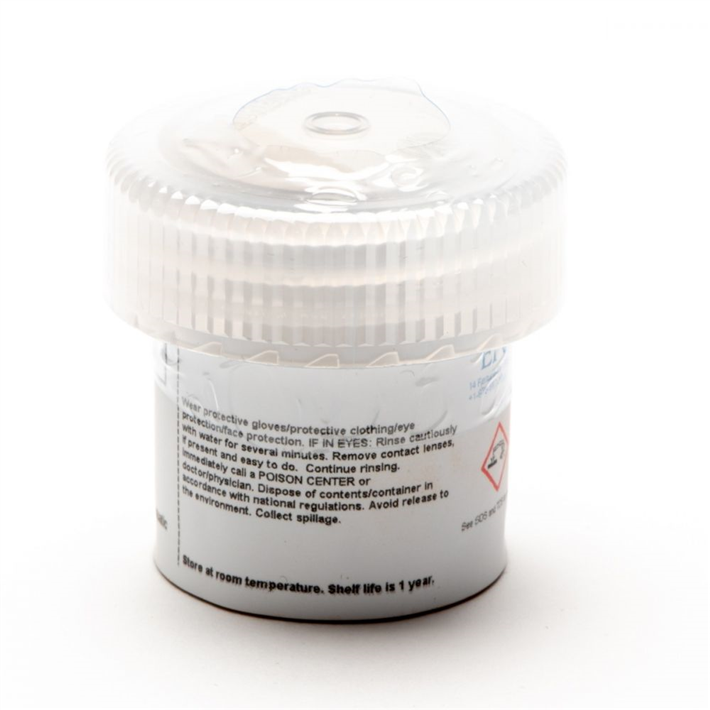

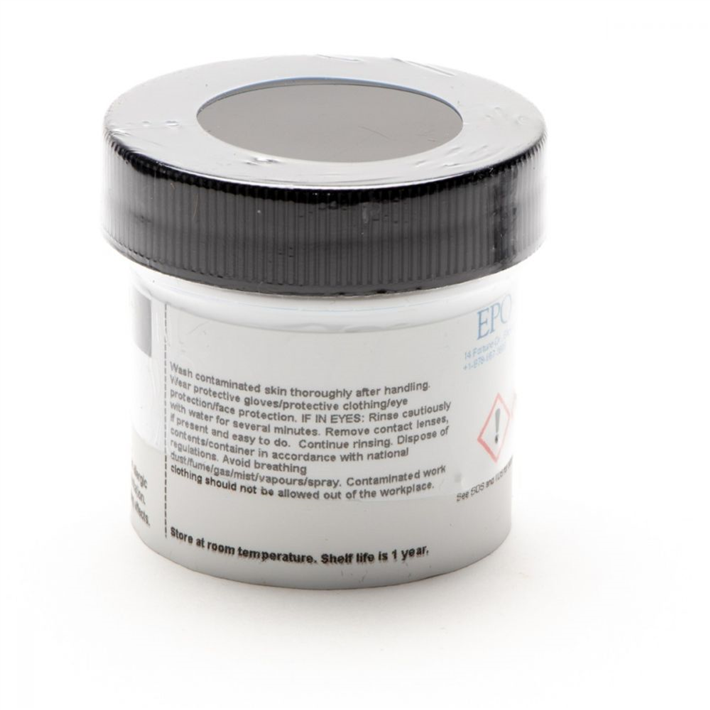

4898 back 1 back 2

There are 3 images available to view - click to enlarge and scroll through the product gallery.

4898 Instruction Manual
/ Download as PDF

Curing Time

12hrs@50C; 5 min.@150C

Details

Two-component silver-filled epoxy for electrical connections which cannot be soldered, such as Ag/AgCl pellets. This widely used silver-filled epoxy features low viscosity and smooth flowing character. Pure silver is dispersed in both resin and hardener. Cures in 15 minutes at 120 °C. Mix ratio 1:1. May be premixed and frozen for later use.

Shipping Weight: 0.5 kg
