MF200-M2

MF200-M2

Microforge without microscope 220V



Choose Quantity
  • Overview
  • Specifications
  • Accessories
  • Citations
  • Related Products

Overview

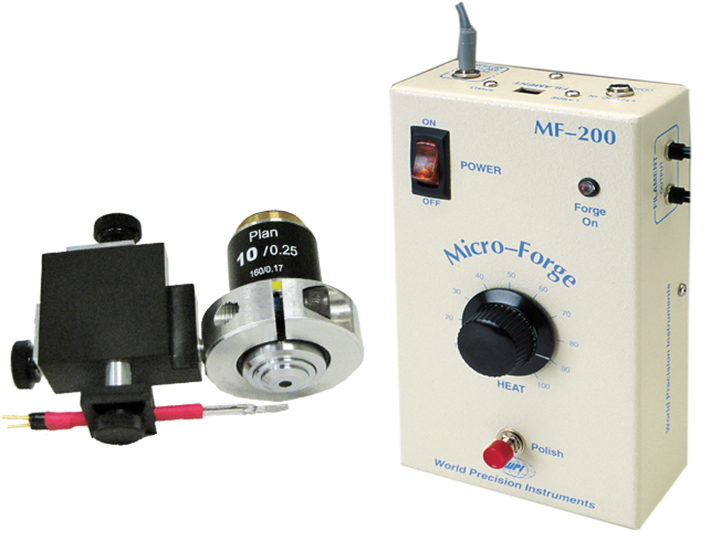

MF200-M2

There are 1 images available to view - click to enlarge and scroll through the product gallery.

MF200 Instruction Manual
/ Download as PDF

  • Simple, reliable, and economically priced
  • Fabricate glass micropipettes
  • Analog temperature controller
  • W30S-LED microscope included

Applications

The MF200 Microforge is a versatile instrument designed specifically for the fabrication of glass micropipettes and other related tools. The system was developed in collaboration with Dr. Ming Li of the Department of Pharmacology, University of South Alabama. It is perfect for patch pipette tip polishing, tip size reduction, contact stretching, in vitro fertilization pipette production and a variety of other pipette configurations. The MF200 simple, reliable and is priced economically.

Features

The MF200 system includes: An easy to use analog temperature controller, a specially configured WPI model W30S-LED research grade compound microscope, 40x long-working distance objective and 10x eyepiece. 40x magnification is essential when polishing pipettes as small as half a micron (0.5 µm) in diameter. Compared to a conventional 40x objective, the long working distance objective reduces the danger of damage to the pipette and/or objective lens during the polishing process. It is also the only commercial microforge using the Kohler illuminator and Abbe condenser for illumination. This provides less glare and sharper image of the pipette than frosted glass illuminator, which was used on all of the other commercial Microforge.

Specifications

AC POWER MODULE 100-240 VAC 50/60 Hz
FILAMENTS (3) H2, H3, H4
FILAMENT ON  Pushbutton Controlled or Optional Foot Switch Controlled
FILAMENT ADJUSTMENT ASSEMBLY For 40x and 25x Long-Working, Distance Objectives: mounts on objective
FILAMENT ADJUSTMENT ASSEMBLY: OBJECTIVE 40x Long-Working Distance (3 mm)
FILAMENT ADJUSTMENT ASSEMBLY: OPTIONAL 25x Long-Working Distance (5 mm)
GLASS HOLDER Mounts on Microscope Stage
DIMENSIONS: Control Unit 4 x 7 x 1.875in. (10.2 x 17.8 x 4.8 cm)
SHIPPING WEIGHT  3 lb. (1.4 kg)

Accessories


Choose Quantity
MF200-FS

MF200-FS

Footswitch for the DMF1000 and MF200

View details...
