Home > Products > Micromanipulators > Manual Manipulators > KITE-L

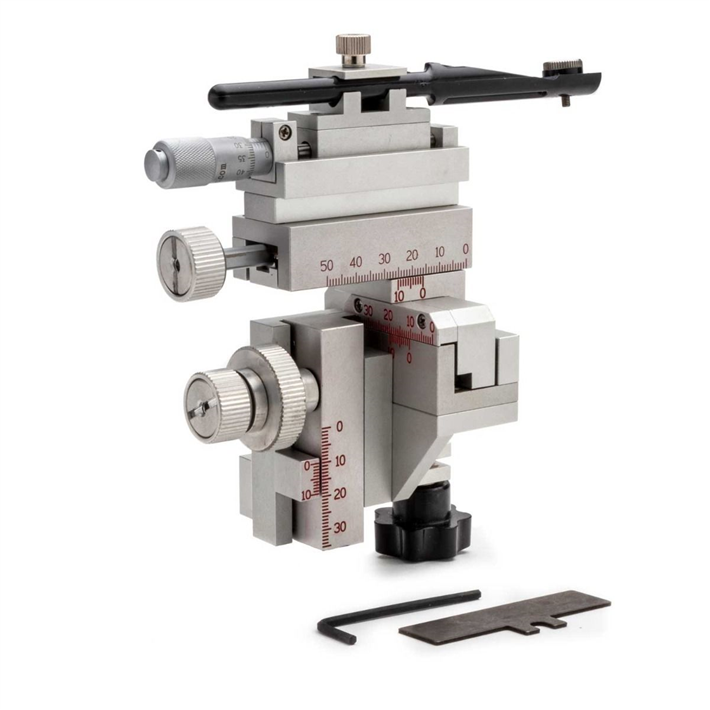

KITE-L

Kite Manual Micromanipulator (left-handed)

Overview
Specifications
Accessories
Citations
Related Products

Overview

There are 1 images available to view - click to enlarge and scroll through the product gallery.

KITE Instruction Manual
/ Download as PDF

Vernier scales allow readings to 0.1mm
x-axis fine control allows readings to 10 micrometers

Features

Vernier scales allow readings to 0.1 mm. X-axis fine control allows readings to 10 µm. Left- or right-handed versions of the KITE micromanipulator are supplied with a standard 12 mm clamp and electrode holder M3301EH.

Specifications

Travel Range: X-axis Fine	10mm
Travel Range: X-axis	37mm
Travel Range: Y-axis	20mm
Travel Range: Z-axis	20mm
Resolution: X-axis Fine 0.01	0.01mm
Resolution: X-axis	0.1mm
Resolution: Y-axis	0.1mm
Resolution: Z-axis	0.1mm
Shipping Weight:	3 lbs (1.4 kg)

Accessories

Citations

S. Gelman, A. Ayali, E. Tytell, A. Cohen "Larval lampreys possess a functional lateral line system" J of Comparative Physiology 193. 2007: 271-277

RelatedItems

Featured Publication

Dorsal Root Ganglion Injection and Dorsal Root Crush Injury as a Model for Sensory Axon Regeneration.
[Using WPI's UMP3-1]
