MD4L

MD4L

Dual Tool-Holder Micromanipulator (left-handed)



Choose Quantity
  • Overview
  • Specifications
  • Accessories
  • Citations
  • Related Products

Overview

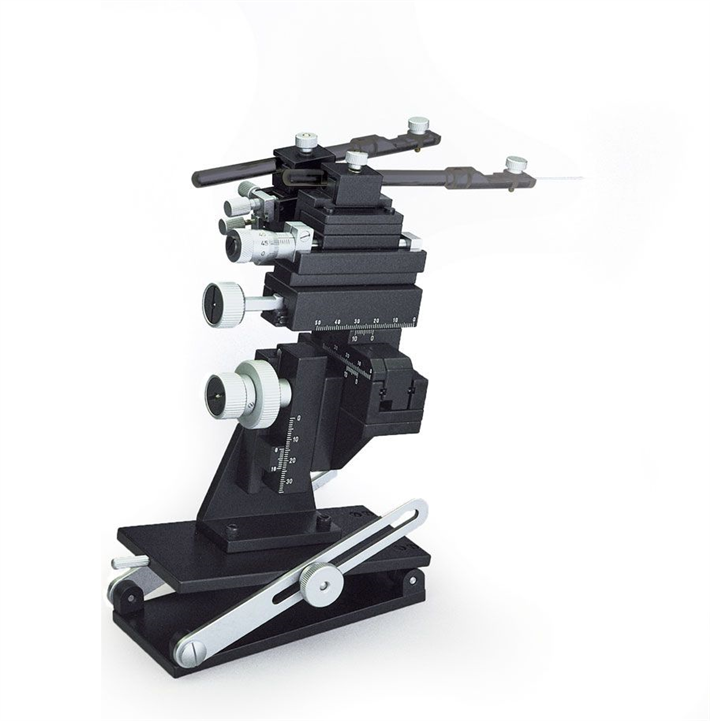

MD4L (with optional tilting base M-3 not included)

There are 1 images available to view - click to enlarge and scroll through the product gallery.

Manipulator Care
/ Download as PDF

  • Scales allow coarse adjustment readings with an accuracy of 100 micrometers
  • X-axis fine control is achieved with a micrometer screw
  • Tilting base not included, use the 12mm clamp to mount to a magnetic stand

Features

A small and compact micromanipulator for manual manipulation in all three axes (x, y and z), the MD4 is equipped with a mounting bracket for a second tool or electrode holder which can be positioned in the x and y axes independent of the manipulator and may also be tilted and swiveled by two fine-adjust screws. Scales allow readings of coarse adjustment with an accuracy of 100 µm. Additional x-axis fine control is achieved with a micrometer screw with a resolution of 10 µm. Supplied with TWO M3301EH electrode holder and a 12mm clamp for mounting on M10 Stand or other 12 mm supports. May also be mounted on optional M-3 Tilting Base.

Travel

Standard electrode: x-axis, 37 mm (fine, 10 mm); y-axis, 20 mm; z-axis, 25 mm. Additional electrode: x-axis, 7 mm; y-axis, 10 mm.

Specifications

Travel Range: X-axis Fine 10mm
Travel Range: X-axis 37mm
Travel Range: Y-axis 20mm
Travel Range: Y-axis 25mm
Resolution: X-axis Fine 10µm
Resolution: X-axis 100µm
Resolution: Y-axis 100µm
Resolution: Z-axis 100µm
Shipping Weight: 3 lbs. (1.4 kg)

Accessories


Choose Quantity
15873

15873

Angled Electrode Holder. 13 cm long, 7.2 mm diameter.

View details...


Choose Quantity
5052

5052

Steel Base Plate. 21.5 x 30 cm. 4.5kg

View details...


Choose Quantity
5464

5464

Base Weight for M-3.5-lb weight for M-3 Tilting Base


Choose Quantity
5479

5479

Steel Base Plate. 30.5 x 61 cm. 14.5kg

View details...

M10

M10

Magnetic Stand

View details...

M10L

M10L

Magnetic Stand

View details...


Choose Quantity
M2

M2

Manipulator Mounting Clamp.Diameter: 12 mm clamp. Interchangeable clamp allows manipula...

View details...


Choose Quantity
M-3

M-3

Tilting Base, 60 x 130 x 6 mm,  adjustable to 80 degrees.


Choose Quantity
M4C

M4C

Microscope Stage Adapter. Mount to any microscope stage up to 20 mm.

View details...


Choose Quantity
M5

M5

Manipulator Mounting Clamp to 10 mm diameter rod

This interchangeable clamp al...

View details...

M9

M9

Magnetic Stand Rotatable

View details...
