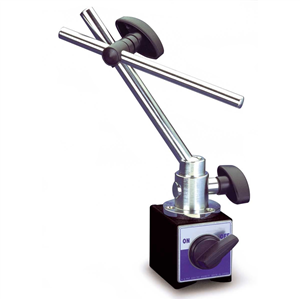

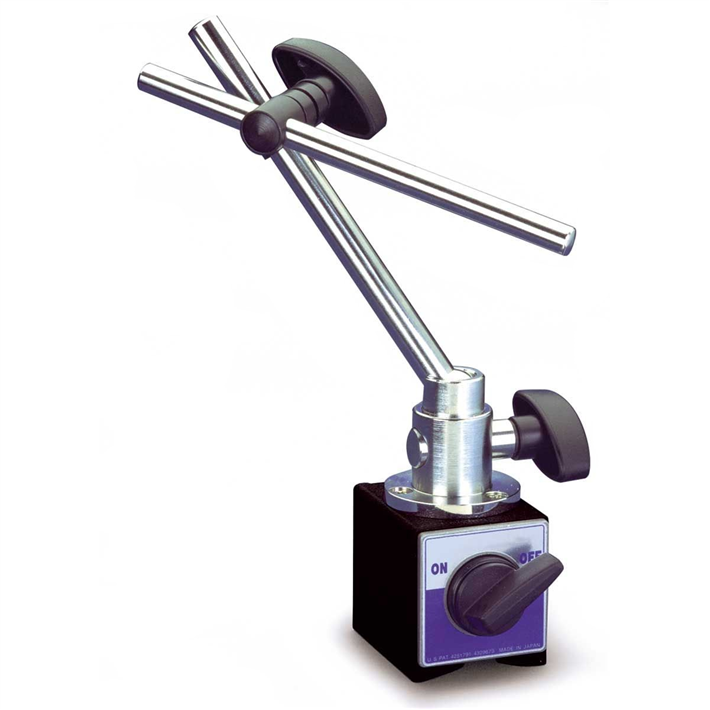

M8
Magnetic Stand with Balljoint
- Overview
- Specifications
- Accessories
- Citations
- Related Products
Overview
There are 1 images available to view - click to enlarge and scroll through the product gallery.
- Main post rotates 360 degrees
- Main Post Diameter: 12 mm
- Sub Post Diameter: 10 mm
Features
A ball joint at the base of the main post allows 360° rotation, offering considerable versatility. The second arm adopts angles up to 75°. (Optional M5 10 mm clamp should be added for use with M3301, DC3001, MD4 and MMJ manipulators.)
Base
50 ( w ) x 58 ( l ) x 55 ( h ) mm ( 2.0x 2.3 x 2.2 in. )
Vertical Holding Power
80 kgf (176 lb force)
Main Pole
diameter: 12 mm (0.47 in.) length: 194 mm (7.6 in.)
Sub Pole
diameter: 10 mm (0.39 in.) length: 165 mm (6.5 in.)
Clamp Hole
Adjustable from 4.5 mm to 6.5 mm
Weight
1.8 kg (4 lb)
