Lambda SC

Lambda SC

SmartShutter® Controller


Choose Quantity
  • Overview
  • Specifications
  • Accessories
  • Citations
  • Related Products

Overview

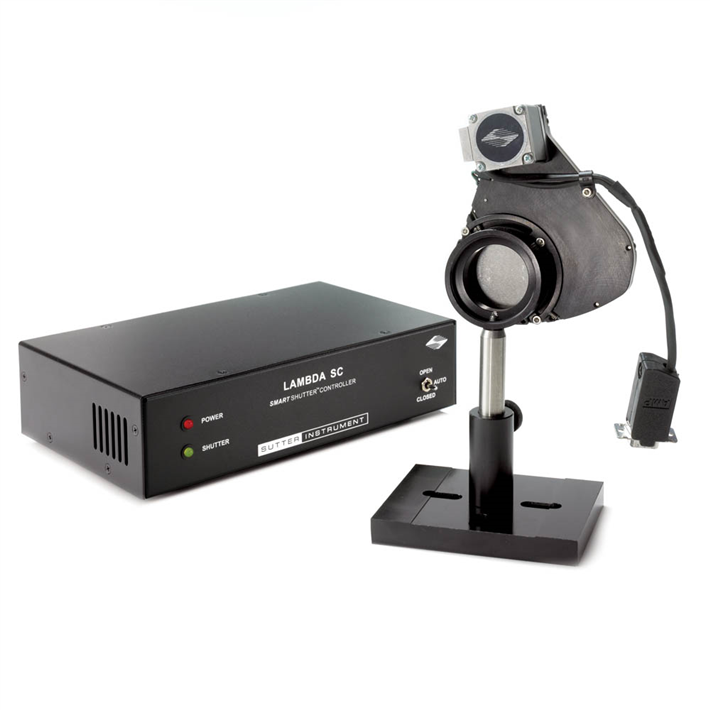

There are 1 images available to view - click to enlarge and scroll through the product gallery.

The Lambda SC is a full-featured microprocessor controlled shutter driver for the SmartShutter®. It supports the same shutter command set used for our other Lambda controllers and offers enhanced performance through additional modes of operation. The additional operating modes allow programmable control over the exposure time, the delay between exposures, the number of exposures, the mode of triggering, and the mode of shutter opening. The Lambda SC utility program allows computer control and configuration of multiple SC controllers through serial or USB ports.

In the Lambda 10 family of filter wheel controllers, shutter timing is controlled directly by the time of occurrence of commands or TTL input. In most cases, the system software used with these controllers has provisions for controlling the timing of the shutter. The Lambda SC shutter controller may be used in applications that would benefit from enhanced control options built into the controller. A convenient toggle switch on the front panel has three positions: Open (shutter will open regardless of other inputs), Closed (shutter will close regardless of other inputs) and Auto. In the Auto position, the controller can be operated remotely from a computer through the USB port, or opened and closed using a logic level input.

In the free running mode, the shutter will open and close repeatedly. The time between closing and reopening can either be directly timed, or set as an interval for the entire cycle. Delay and exposure intervals can be set by the user for up to 5 hours with millisecond resolution. This mode can be set to continuously run or loop for a specific number of cycles. The mode is initiated from power up, or a trigger pulse, and can be interrupted by using a stop command.

Because the SmartShutter® incorporates a microprocessor controlled motor/wiper design, the trajectory of each move can be controlled and the motion of the blade optimized for speed or for smoothness. When speed is the most important condition, the user can select the fast mode. If the modest amount of vibration in the fast mode is objectionable and speed is not important, the “soft” mode can be selected, moving the blade slower through the overall travel.

The neutral density mode results in a partial opening of the SmartShutter®. Any one of the 144 steps from a fully closed to fully open can be selected. Using this variable aperture opening along with a liquid light guide acts to spatially homogenize the light to produce a uniform spatial illumination that’s independent of the geometry of the input illumination.

The SmartShutter can be coupled to the illumination ports of most microscopes using an adapter which can be purchased separately. Please refer to the Microscope Adapters section for further information. An optical black coating option for the shutter blade is available to eliminate reflection. Please phone Sutter for details.

FEATURES LAMBDA SC

  • Microprocessor based controller
  • Serial, USB and TTL interfaces
  • User can produce a variable aperture by selecting the degree of shutter opening
  • “Soft” action mode provides minimum vibration
  • TTL activation of the shutter can be set to high, low, or Toggle on raising/falling edge
  • Programmable delay and exposure intervals up to 5 hours with millisecond resolution
  • Commands can run continuously or loop a specified number of times
  • Programmable delayed sync out
  • Universal power supply


FEATURES

  • SmartShutter®Robust design
  • Life tested to 100 million cycles
  • Modular repairable design
  • Open time 8 msec from trigger (for 25 mm and 35 mm versions)
  • Continuous operation frequencies as high as 40Hz
  • Stand-alone or use with Sutter filter wheel
  • Mountable in Lambda LS and Lambda DG-4/DG-5

Specifications

Controllers

LB-SC Lambda SC controller, serial and USB cables, power cord and manual

SmartShutter
IQ12-SA 12.5 mm SmartShutter® with stand-alone housing

IQ12-AN 12.5 mm hard anodized SmartShutter®

IQ25-SA 25 mm SmartShutter® with stand-alone housing

IQ25-W 25 mm SmartShutter® with housing to fit filter wheel

IQ25-WU 25 mm SmartShutter® to retrofit non-shuttered filter wheel

IQ25-LS 25 mm SmartShutter® with housing to fit Lambda LS

IQ25-DG 25 mm SmartShutter® with housing to fit Lambda DG-4/DG-5

IQ35-W 35 mm SmartShutter® with housing to fit filter wheel

IQ35-SA 35 mm SmartShutter® with stand-alone housing

IQ50-SA 50 mm SmartShutter® with stand-alone housing

Accessories

FSWITCH Foot switch with BNC connector - Changes state of shutter with foot press as long as foot press is maintained

FSTOGGLE Foot switch with BNC connector - alternates open/close with each foot press

CIQ-2 25 pin connector to two 9 pin connectors (Allows connection of one stand-alone SmartShutter®)

W620005 9 pin male/female serial cable

W621520 USB cable


Mounting Posts

Stainless steel 1/2 in diameter. One end is 1/4-20 (M6) tapped hole. Other end is #8-32 (M4) removable threaded stud. Can be used with 25 mm SmartShutter® or 35 mm when used with PMA-IQ35.

O620120 1 in / 25 mm long post

O620122 1.5 in / 38 mm long post

O620123 2 in / 50 mm long post

O620124 3 in / 76 mm long post

O620117 4 in / 100 mm long post

O620119 8 in / 203 mm long post

PMA-IQ35 35 mm post mount adapter

Post Holder
O620125 1 in / 25 mm holder and spring loaded thumbscrew for mounting post

O620130 2 in / 50 mm holder & spring loaded thumbscrew for post

O620134 4 in / 100 mm holder & spring loaded thumbscrew for post

O620136 6 in / 152 mm holder & spring loaded thumbscrew for post

Post Base Plate Suitable for Imperial or Metric tables, posts, and post holders


O620143 1 in x 2.3 in x 3/8 in base plate

O620140 2 in x 3 in x 3/8 in base plate

Post Collar

O620150 Slip-on collar, 1 in OD x 0.5 in ID

Accessories

Citations

RelatedItems
