PZMIV-BS

PZMIV-BS

Precision Stereo Zoom Microscope (IV) on Boom Stand


  • Overview
  • Specifications
  • Accessories
  • Citations
  • Related Products

Overview

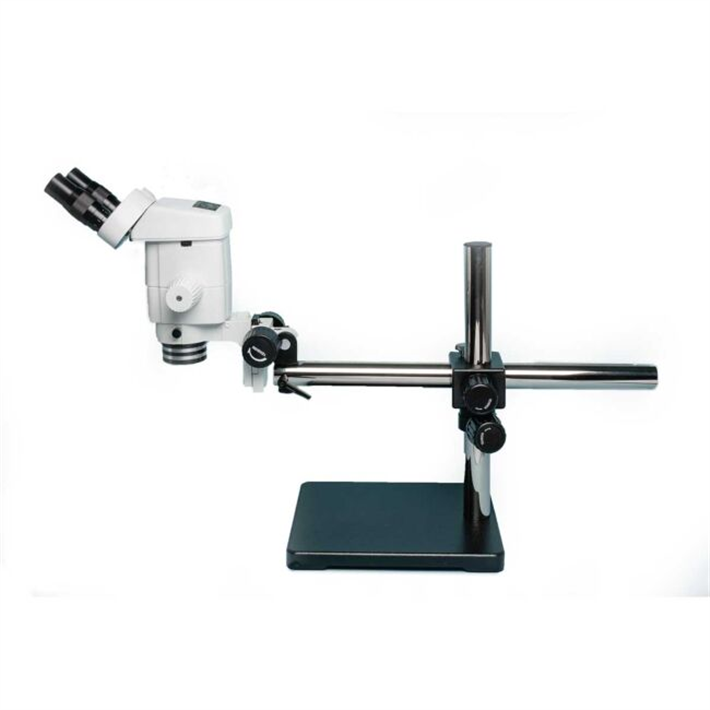

PZMIV on boom stand

There are 1 images available to view - click to enlarge and scroll through the product gallery.

Camera to Microscope Table
/ Download as PDF

  • Includes PZMTIV binocular body, 1x objective, pair of 10x eyepieces and eyeguards, and boom stand

 Features

Modular, two parallel beam design. Planachromatic objectives, no optical distortion. High-contrast imaging, ideal for observing transparent, low-contrast objects. Large zoom ratio: 8:1. Large zoom range: 0.62x to 5.0x. Long working distance. Step and continuous zoom. 5-year warranty.

High quality optical system

The fourth generation of WPI’s precision stereo zoom microscopes uses modular, two parallel beam path design and high quality optical system. The advanced optical design with planachromatic objectives provides sharp and distortion-free contrast image throughout the entire zoom range and comes with an impressive 5-year warranty. The PZMIV is available in a binocular or trinocular version. In addition, an extensive list of optional accessories is available that makes the PZMIV suitable for integrated optical and biological research. The microscope comes with a track stand, standard 10x eyepieces (wide-field, distortion-free and high eye point), 1x planachromatic distortion-free objective.

Specifications

EYEPIECES WFH 10x
AUXILIARY LENSES 1x
ZOOM RANGE 0.62x - 5x
TOTAL MAGNIFICATION 6.2x - 50x
ZOOM RATIO 8 : 1
FIELD OF VIEW 33.9-4.2 mm
WORKING DISTANCE 80 mm
BINOCULAR TUBE Inclined 45°
INTERPUPILARY DISTANCE 50 - 75 mm
DIOPTER ADJUSTMENT ± 5 Diopter
MICROSCOPE BODY Rotatable 360°
OPTIONAL ACCESSORIES: Eyepieces 16x, 20x, 25x
OPTIONAL ACCESSORIES: Auxiliary lenses 0.32x, 0.5x, 0.63x
OPTIONAL ACCESSORIES: Total Magnification 1.9x - 125x
OPTIONAL ACCESSORIES: Field of view 106 - 1.8 mm
OPTIONAL ACCESSORIES: Working Distance 80 - 296 mm

Accessories


Choose Quantity
500264

500264

Reticle in 10x Eyepiece (1), for use with PZMIV, 30mm version, 100 divisions

View details...


Choose Quantity
502010

502010

10X Wide Field Eyepiece for PZMIV (pair)

View details...


Choose Quantity
502011

502011

16X Wide Field Eyepiece for PZMIV (pair)

View details...


Choose Quantity
500266

500266

Reticle in 20x Eyepiece (1), for use with PZMIV, 0-90°, 200 divisions

View details...


Choose Quantity
502017

502017

0.50x, Planachromatic Objective - 187 mm WD for PZMIV

View details...


Choose Quantity
502012

502012

20X Wide Field Eyepiece for PZMIV (pair)

View details...


Choose Quantity
502013

502013

25X Wide Field Eyepiece for PZMIV (pair)

View details...


Choose Quantity
502015

502015

Ring Light Adapter for PZMIV. For use with R-8-8-WPI01 Ring Light Guide).

View details...
