PZMTIV-DIG50

PZMTIV-DIG50

PZMTIV Microscope System


Choose Quantity
  • Overview
  • Specifications
  • Accessories
  • Citations
  • Related Products

Overview

PZMTIV-DIG50

There are 1 images available to view - click to enlarge and scroll through the product gallery.

PZMIV Instruction Manual
/ Download as PDF

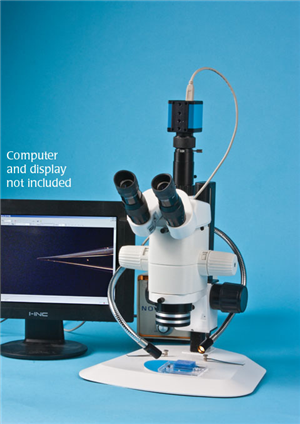

  • Includes PZMTIV trinocular body, 1x objective, pair of 10x eyepieces and eyeguards, USBCAM50 camera, 0.5x CCD camera coupler, Z-LITE optical illuminator, and bifurcated optical fiber light guide

Details

Features

Modular, two parallel beam design. Planachromatic objectives, no optical distortion. High-contrast imaging, ideal for observing transparent, low-contrast objects. Large zoom ratio: 8:1. Large zoom range: 0.62x to 5.0x. Long working distance. Step and continuous zoom. 5-year warranty.

High quality optical system

The fourth generation of WPI’s precision stereo zoom microscopes uses modular, two parallel beam path design and high quality optical system. The advanced optical design with planachromatic objectives provides sharp and distortion-free contrast image throughout the entire zoom range and comes with an impressive 5-year warranty. The PZMIV is available in a binocular or trinocular version. In addition, an extensive list of optional accessories is available that makes the PZMIV suitable for integrated optical and biological research. The microscope comes with a track stand, standard 10x eyepieces (wide-field, distortion-free and high eye point), 1x planachromatic distortion-free objective.

Specifications

Specification PZMIV

EYEPIECES

WFH 10x
AUXILIARY LENSES 1x
ZOOM RANGE 0.62x - 5x
TOTAL MAGNIFICATION 6.2x - 50x
ZOOM RATIO 8 : 1
FIELD OF VIEW 33.9-4.2mm
WORKING DISTANCE 80mm
BINOCULAR TUBE Inclined 45°
INTERPUPILARY DISTANCE 50-75mm
DIOPTER ADJUSTMENT ± 5 Diopter
MICROSCOPE BODY Rotatable 360°
OPTIONAL ACCESSORIES: Eyepieces 16x, 20x, 25x
OPTIONAL ACCESSORIES: Auxiliary lenses 0.32x, 0.5x, 0.63x
OPTIONAL ACCESSORIES: Total Magnification 1.9x - 125x
OPTIONAL ACCESSORIES: Field of view 106 - 1.8mm
OPTIONAL ACCESSORIES: Working Distance 80 - 296mm
SHIPPING WEIGHT 23 lb.

Accessories

502010

502010

10X Wide Field Eyepiece for PZMIV (pair)

View details...


Choose Quantity
502011

502011

16X Wide Field Eyepiece for PZMIV (pair)

View details...


Choose Quantity
502012

502012

20X Wide Field Eyepiece for PZMIV (pair)

View details...


Choose Quantity
502013

502013

25X Wide Field Eyepiece for PZMIV (pair)

View details...


Choose Quantity
502015

502015

Ring Light Adapter for PZMIV. For use with R-8-8-WPI01 Ring Light Guide).

View details...


Choose Quantity
502016

502016

0.32x, Planachromatic Objective - 296 mm WD for PZMIV

View details...


Choose Quantity
502017

502017

0.50x, Planachromatic Objective - 187 mm WD for PZMIV

View details...
