AL-1010

Overview



• High Pressure (up to 100lb linear force)

• Automatic dispensing of small volumes

• Very precise, reproducible flow rate control

• Displays total volume dispensed in mL or µL units

• Selectable infusion/withdrawal rate units (mL/hr, µL/hr, mL/min, µL/min)

• Infusion rate can be changed while pumping

• Program pump via keypad or from a computer

• Highly controllable – program sequences without a computer (holds up to 41 programming phases)

• Network, control, and monitor up to 100 pumps with one computer

• Hands-free operation with optional foot switch ADPT2

Channels	1
Type	Infusion / Withdrawal
Flow Range	0.001 µL/hr (0.5 mL syringe) to 208.3 mL/min (140 mL syringe)
Dispensing Accuracy	±1%
Syringe Sizes Accepted	0.5 µL to 60 mL or 140 mL partially filled
Linear Force	100 lb at low speed; 18 lb at maximum speed



To meet the demands of a busy lab Aladdin Pumps offer exceptional value providing versatility and reliability for accurately dispensing media down into the nanoliter range.

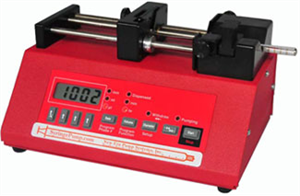

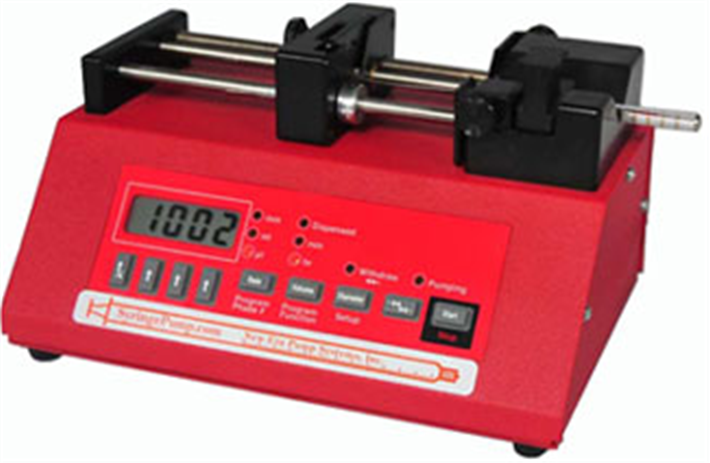

The Aladdin AL-1010 is a high pressure programmable single channel infusion / withdrawal syringe pump. It has a metal casing to provide stability, ensuring less vibration is transferred to the syringes. Setup is easy using the pumps keypad or via a computer with optional PC to pump cable (GN-PC7 or GN-PC25).

The Aladdin AL-1010 can run complex programs with up to 41 pumping phases can be set to change pumping rates; set dispensing volumes; insert pauses; control and respond to external signals; sound the buzzer. (For Linear/Gradient programs use AL-1010X)

Example flow rates

Syringe Size	Maximum Rate	Minimum Rate
0.5 µL	91.83 µL/hr	0.001 µL/hr
1 mL	190.4 mL/hr	1.453 µL/hr
3 mL	806.1 mL/hr	6.151 µL/hr
5 mL	1341 mL/hr	10.24 µL/hr
10 mL	2188 mL/hr	16.7 µL/hr
20 mL	3479 mL/hr	26.55 µL/hr
30 mL	4539 mL/hr	34.64 µL/hr
60 mL	7635 mL/hr	58.3 µL/hr
140 mL	208.3 mL/min	95.37 µL/hr



Dual pumping action

Need a pump for two syringes? Two Aladdin pumps when daisy-chained are more efficient and affordable than any competitor's dual syringe models. Two Aladdins (AL-2000) will perform as a dual infusion/withdrawal pump, a double pump for infusing at different rates, a push/pull pump with one infusing and one withdrawing at the same or different rates, two independent pumps, or a master/slave pump. One Aladdin can even control the second for continuous pumping with optional check valve set. The Aladdin pump series will accept syringes from Becton Dickinson, Monoject, Terumo, and Air-Tite.

Specifications

SYRINGE SIZES	1-60 mL (140 mL partially filled)
NUMBER OF SYRINGES	1
MOTOR TYPE	Step Motor, 1/8 to 1/2 step modes
STEPS PER REVOLUTIONS	200
STEPPING (min. max.)	0.425 µm (1/8 stepping) to 1.701 µm (1/2 stepping)
MOTOR TO DRIVE SCREW RATIO	15/28
SPEED (max./min.)	18.4 cm/min / 0.0084 cm/hr
PUMPING RATES	6120 mL/hr with 60mL syringe, to 1.459 µL/hr with 1mL syringe
MAXIMUM FORCE	100 lb at min. speed, 18 lb at max. speed
NUMBER OF PROGRAM PHASES	41
RS-232 PUMP NETWORK	100 pumps maximum
POWER supply	Wall adapter 12V DC @ 1000mA
DIMENSIONS	22.9 x 14.6 x 11.4 cm (8.75 x 5.75 x 4.5 in.)
WEIGHT	1.6 kg (3.6 lb)
