SPLG212

SPLG212

Legato 212 Two-Syringe Pump - Programmable Infuse/Withdrawl



Choose Quantity
  • Overview
  • Specifications
  • Accessories
  • Citations
  • Related Products

Overview

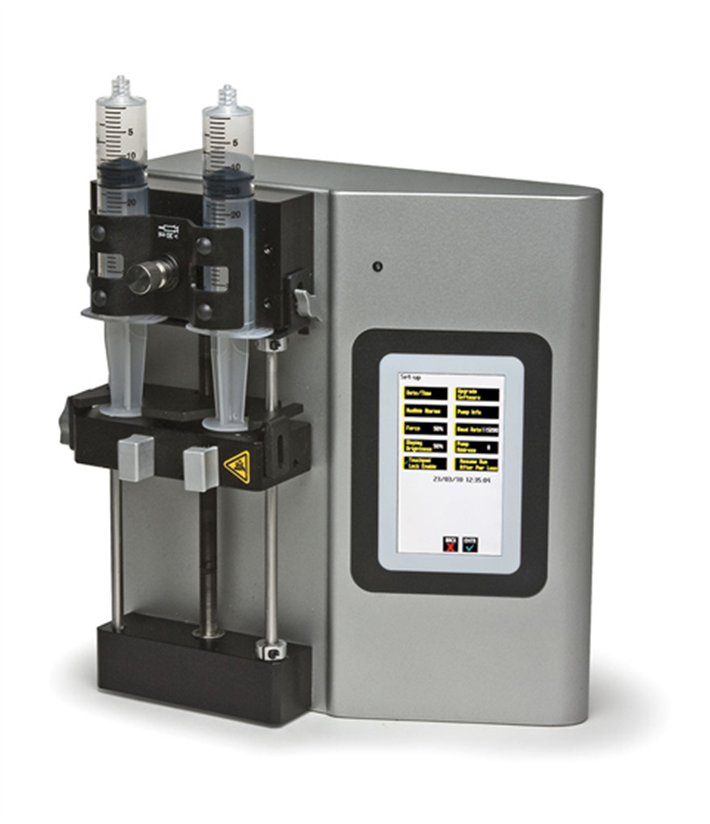

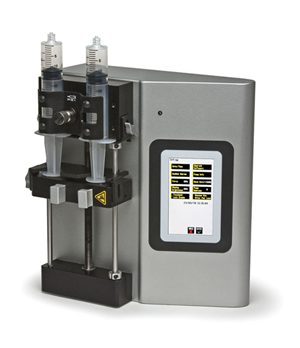

SPLG200 Legato Pumps can be used in vertical position

There are 2 images available to view - click to enlarge and scroll through the product gallery.

Legato Data Sheet
/ Download as PDF



Features

  • Easy to configure
  • Easy to use
  • Vertical mounting
  • Quick release pusher block
  • Wide clamp for larger syringes
  • Multi-size syringes
  • Anti-siphon bracket
  • RS232 computer connection, USB serial input, RS485 for networking pumps
  • Wide variety of applications
  • Worldwide regulatory complianc

This new SPL series of pumps show all the pertinent, real-time information on a single touch screen display.Information displayed includes flow rate, grading syringe volume, total remaining time and total volume delivered. Recognizable, international icons make it easy to use.

To conserve table space, mount the SPL pump vertically. The display automatically reorients itself for easy vertical operation.

The welded, unibody, steel chassis of the SPL pumps makes them quieter to operate. It also offers less vibration, no deformation and excellent EMI/RFI
shielding.

The one-touch operation makes the SPL pump easy to configure, and its 15-character labeling system makes saved programs quick to identify. You can easily transfer recipes between pumps for consistent configuration without reprogramming. Pumps can be connected for gradients, increased flow capacity and simultaneous multitests.

This family of pumps includes:

  • Infuse only (WPI #SPLG200)
  • Infuse/withdraw (WPI #SPLG210)
  • Infuse/withdraw programmable (WPI #SPLG212)
  • Push-pull (WPI #SPLG270)
  • Push-pull programmable (WPI #SPLG272)

Examples of Flowrates

SyringeDiameterMinimumMaximum
0.5 µl 0.103 mm 3.12 pl/min 1.589 µl/min
1 µl 0.146 mm 6.18 pl/min 3.180 µl/min
2 µl 0.206 mm 12.301 pl/min 6.358 µl/min
5 µl

0.343 mm

33.96 pl/min 17.630 µl/min
10 µl 0.485 mm 67.72 pl/min 35.249 µl/min
25 µl 0.729 mm 153.42 pl/min 79.640 µl/min
50 µl 1.03 mm 306.24 pl/min 158.984 µl/min
100 µl 1.457 mm 612.72 pl/min 318.126 µl/min
250 µl 2.304 mm 1.533 nl/min 795.51 µl/min
500 µl 3.256 mm 3.06 nl/min 1.588 ml/min
1000 µl 4.608 mm 6.129 nl/min 3.181 ml/min
1 ml 4.699 mm 6.373 nl/min 3.308 ml/min
3 ml 8.585 mm 21.272 nl/min 11.044 ml/min
5 ml 11.989 mm 41.485 nl/min 21.539 ml/min
10 ml 14.427 mm 60.073 nl/min 31.19 ml/min
20 ml 19.05 mm 104.74 nl/min 54.383 ml/min
30 ml 21.59 mm 134.533 nl/min 69.852 ml/min
50 ml 26.594 mm 204.122 nl/min 105.985 ml/min
100 ml 35.7 mm 367.839 nl/min 190.992 ml/min
140 ml 38.4 mm 415.623 nl/min 215.803 ml/min

Specifications

Mode Proframmable Infusion/Withdrawl
Accuracy ±0.35%
Reproducibility ±0.5%
Syringes (min./max.) 0.5μL/140mL
low rate minimum (0.5μL) 5pL/min.
Flow rate maximum (140mL syringe) 215.803mL/min.
Display 4.3" WQVGA TFT color display with touch pad
Non-volatile memory Stores all settings
Connectors:
RS-232 9-pin D-sub connector
RS-485 IEEE-1394, 6 pos
USB type B
I/O and TTL 15-pin D-sub connector
Linear force (maximum) 34kg (75 lb.) @ 100% force selection
Drive motor 1.8º stepper motor
Motor drive control Microprocessor with 1/16 microstepping
Number of microsteps per one rev. of lead screw 6,400
Step rate minimum 27.5 sec./µstep
Step rate maximum 26µsec./µstep
Pusher travel rate minimum 0.36µm/min
Pusher travel rate maximum 190.80mm/min.
Power 100-240VAC; 50/60Hz; 50W; 0.5A fuse
Dimensions 8.89 x 25.4 x 27.94cm (3.5 x 10 x 11")
Weight 4.9kg (10.75 lb.)
Atmospheric specifications:
Operating temperature 4–40ºC (40–104ºF)
Storage temperature -10–70ºC (14–158ºF)
Humidity 20–80%RH, non-condensing
Mode of operation Continuous
Classification Class I
Pollution degree 1
Installation Category II
Regulatory Certifications CE, UL, CSA, CB Scheme, EU RoHS

Accessories

504576

504576

Small Syringe Multi Rack for SPLG pumps

View details...

504577

504577

Large Syringe Multi Rack for SPLG pumps

View details...

504578

504578

Adagio Software/USB key. For use with the SPLG100, SPLG101, SPLG110, SPLG200, SPLG210, ...

View details...
