MINISTAR

MINISTAR

MINISTAR Miniature DC Peristaltic Pump (0.06-14 mL/min)



Choose Quantity
  • Overview
  • Specifications
  • Accessories
  • Citations
  • Related Products

Overview

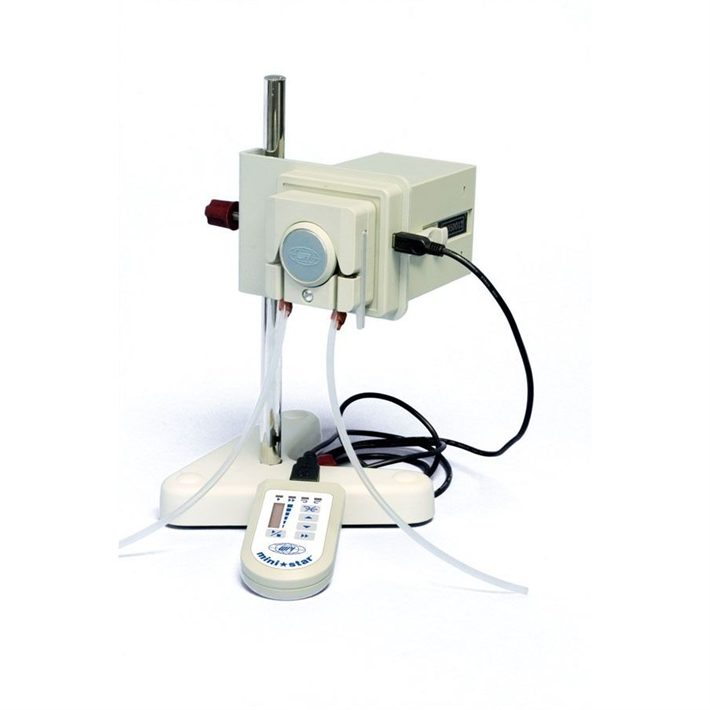

MINISTAR Peristaltic Pump

There are 1 images available to view - click to enlarge and scroll through the product gallery.

Instruction Manual
/ Download as PDF

Application Note - use with LWCCs
/ Download as PDF

  • Flow Range: 0.06-14.0mL/min
  • Speed: 1-50.0 rpm, forward/reverse
  • for Version including stand see 504011

Features

This compact and lightweight peristaltic pump fits just about anywhere. It can be mounted directly on the bench, in a regular rack or to a post. The MiniStar's speed can be adjusted from 1rpm to 50 rpm. With recommended silicone tubing, the volume can be set from 0.06 mL/min to 14.0 mL/min. The MiniStar also features a hand held remote control that allows users to start and stop the pump, purge or adjust its speed and direction.

Specifications

Channels 1
Speed 1-50.0 pm, forward/reverse
Flow range 0.06~14.0mL/min
Resolution 1rpm (0.1 rpm computer control)
Speed control Remote control
Display Indicators for status and speed
Power 12V DC (110/220VAC adapter incl.)
Working condition Temperature 0-40°C, humidity < 80%
Tubing Two-stop Silicone
Tubing: Wall Thickness 0.8~1.0mm
Tubing: Outer Diameter
Dimension of driver 135x72x72mm (LxWxH)
Dimension of remote control 105x5x16mm (LxWxH)
Weight of driver 0.5Kg

Accessories


Choose Quantity
503120

503120

TTL Control Module For use with the MiniStar or PeriStar Pro peristaltic pumps

View details...


Choose Quantity
503121

503121

Silicone Tubing w Stops 2.4mm ID x 0.8mm wall x 1m (5 pk) for use with MINISTAR

View details...


Choose Quantity
503122

503122

Silicone Tubing with stops 1mm ID x 1mm wall x 1m (5 pk) for use with the MINISTAR p...

View details...
