MS-50M-01

There are 1 images available to view - click to enlarge and scroll through the product gallery.

MicroSquisher Brochure
/ Download as PDF

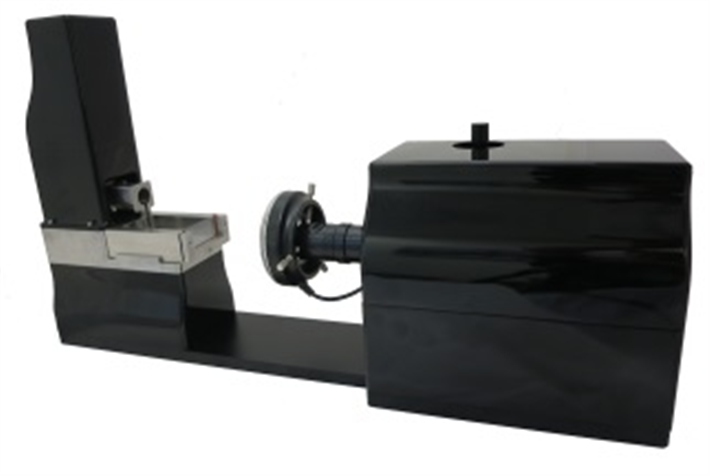

The MicroSquisher is designed to perform compression testing on specimens between 50 and 2000µm with force resolutions as small as 0.05µN.

A micro-scale tension/compression test system

The MicroSquisher does what others can’t. Smaller specimens, better force resolution, easier test setups, and great visuals. It operates on the same principles as an atomic force microscope – cantilever mechnanics – but at much larger scale. Applications are diverse but include small tissue samples, hydrogel microspheres, cell spheroids, and engineered tissue growth matrix.

The MicroSquisher’s setup, operation and data collection software module allows for simple execution of standard or customized test protocols. Test parameters such as displacement magnitudes, durations and data/image collection rates are specified in a table format for quick access and modification. A template system is used to quickly reload the desired test parameters once a protocol has been established.

While the test is running, the software provides real-time results graphing and a live video feed to facilitate user monitoring of the test progress. Ask anyone who has used our equipment and they will be quick to tell you how intuitive and useful this software package really is.

Specimens & Mounting

Uncompressed and compressed hydrogel microsphere. Original diameter: 3mm Compression: 40%
Unstretched and stretched gel scaffold Original size: 3.3mm wide, 1.6mm thick Extension: 40% Mounting via 5 puncture pins at 0.7mm spacing Modulus was 490Pa
Compressed air bubble Approximate size: 0.6mm	Compressed cell spheroid Approximate size: 500μm

 Videos

MicroScale Mechanical Testing Examples

Mechanical Testing of Soft Gels using the CellScale MicroSquisher

Muscle Tissue Construct Testing at Kent State University

CellScale MicroSquisher Instructional Overview

Compression Test of a Hydrogel Microsphere

Hydrogel Tension Test

  Zebrafish Embryo Cell Spheroid Compression Testing
