WPI Mouse And Rat Stereotaxic Instruments
Stereotaxic frame setups ready for both mice and rats of all sizes. Choose from:
- New Standard style stereotaxic frame which provides users with the ability to perform surgeries on both Mice and Rats on the same base due to vertically-adjusting ear and nose bar post and horizontally-adjusting ear and nose bar posts
- Traditional U-Frame stereotaxic base suitable for surgeries on rats with adapter and platform to allow surgery on mice and neonatal rats

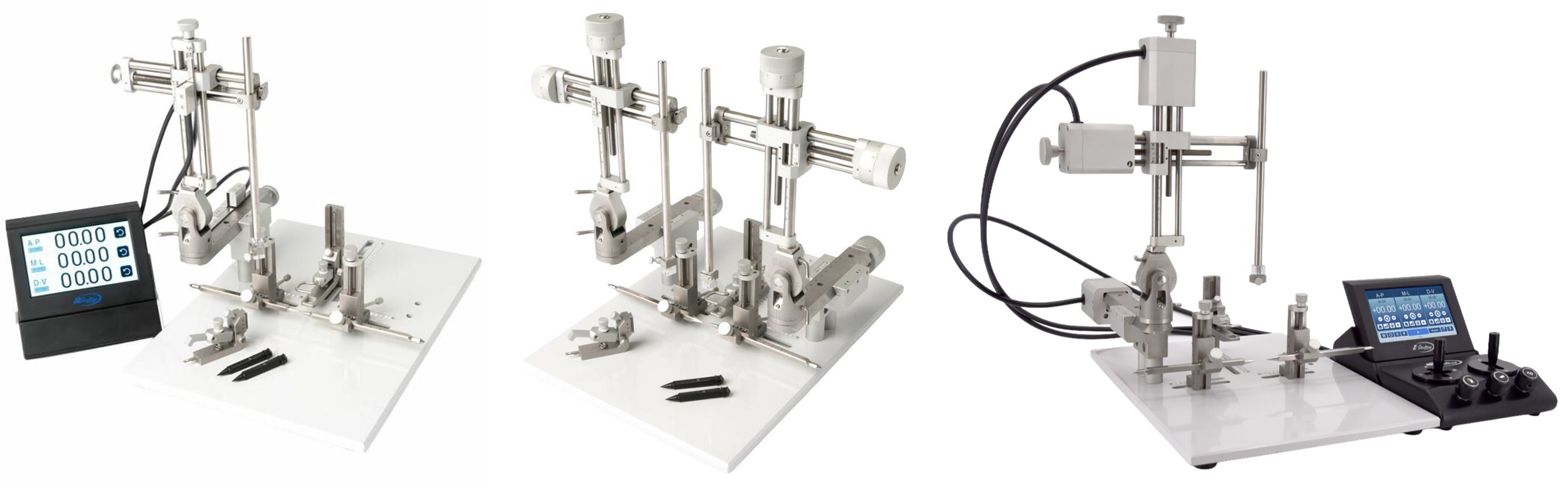

New Standard Mouse And Rat Stereotaxic Frame
The innovative design of the New Standard Frame for mice and rats stereotaxic instrument provides users with the ability to perform surgeries on a mouse or a rat on the same base.
- No U-Frame maximizes operating space
- Designed for a Rat or a Mouse on the same base
- Vertical and horizontal adjustment of ear and nose posts accommodates rodents of all sizes
- Scales at ear and nose posts allows for precise positioning
- Gas anesthesia compatible
- Easily cleaned durable surface
- Warmer ready base (requires separate controller and temperature probe) used to maintain body temperature throughout surgical procedures

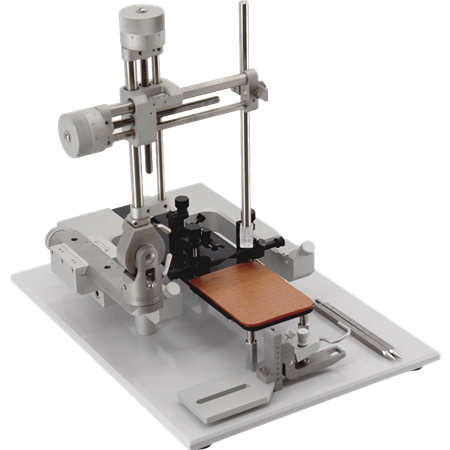

Sterotaxic U-Frame For Rats With Mouse Platform And Adaptors
The time-proven 'U'-Frame design provides stability and adaptability while the instrument's exclusive, triple-lead screws allow for smooth, consistent movements with rapid positioning.
- Large, easy to read laser engraved vernier scales
- Triple lead screws for fast positioning 80 mm of vertical, lateral and anterior-posterior travel
- Absolute lock at 90 degrees (vertical)
- Brass bushings in manipulator arm permit electrical grounding
- Gas anesthesia compatible
- Easily cleaned durable surface
- Warmer ready base (requires separate controller and temperature probe) used to maintain body temperature throughout surgical procedures
Mice And Rats Stereotaxic Frame Selection Guide
All setups include adaptors amd ear bars to accommodate mice and rats of all sizes.
| Style | Arms | Movement | Digital | Type | Part |
New Standard | None | N/A | N/A | Base Only | 505205 |
| Single | Manual | No | Standard (Vernier Scale) 100 microns (0.1 mm) Resolution | 505200 | |
| Ultra-Precise 10 microns (0.01 mm) Resolution | 505203 | ||||
| Yes | Standard (Vernier Scale) 10 microns (0.01 mm) Resolution | 505201 | |||
| Ultra-Precise 1 microns (0.001 mm) Resolution | 505204 | ||||
| Motorized | Motorized 10 micron (0.01 mm) Resolution | 505202 | |||
| Dual | Manual | No | Standard (Vernier Scale) 100 microns (0.1 mm) Resolution | 505206 | |
| Ultra-Precise 10 microns (0.01 mm) Resolution | 505208 | ||||
| Yes | Standard (Vernier Scale) 10 microns (0.01 mm) Resolution | 505207 | |||
| Ultra-Precise 1 micron (0.001 mm) Resolution | 505209 | ||||
| U-Frame & Adaptor | Single | Manual | No | Standard (Vernier Scale) 100 microns (0.1 mm) Resolution | 505281 |
| Ultra-Precise 10 microns (0.01 mm) Resolution | 505282 | ||||
| Yes | Standard (Vernier Scale) 10 microns (0.01 mm) Resolution | 505371 | |||
| Ultra-Precise 1 micron (0.001 mm) Resolution | 505372 | ||||
| Motorized | Motorized 10 micron (0.01 mm) Resolution | ||||
| Dual | Manual | Yes | Standard (Vernier Scale) 10 microns (0.01 mm) Resolution | 505373 | |
| No | Standard (Vernier Scale) 100 microns (0.1 mm) Resolution | 505283 | |||
| Ultra-Precise 10 microns (0.01 mm) Resolution | 505284 |
505205
Mouse And Rat New Standard Stereotaxic Instrument with warmer ready base only (no arms) includes
- New Standard stereotaxic frame designed with vertical and horizontal adjustment of ear and nose posts accommodate mice and rats of all sizes
- Base only, no arms
- Mouse and rat nose adaptors
- Dual-sided (traditional and non-rupture) rat ear bars, dual-sided mouse ear bars

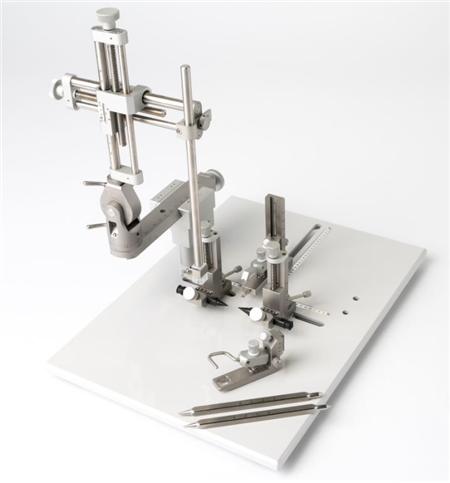

505200
Mouse And Rat New Standard Stereotaxic Instrument with warmer ready base, includes
- New Standard stereotaxic frame designed with vertical and horizontal adjustment of ear and nose posts accommodate mice and rats of all sizes
- Single Arm, No Display - 100 micron 3-axes, left -hand manipulator arm
- Mouse and rat nose adaptors
- Dual-sided (traditional and non-rupture) rat ear bars, dual-sided mouse ear bars
- Corner-clamp probe holder

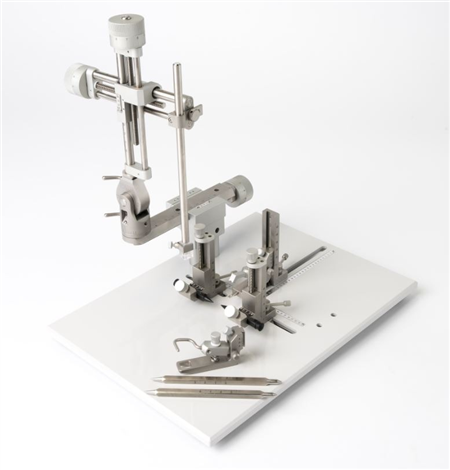

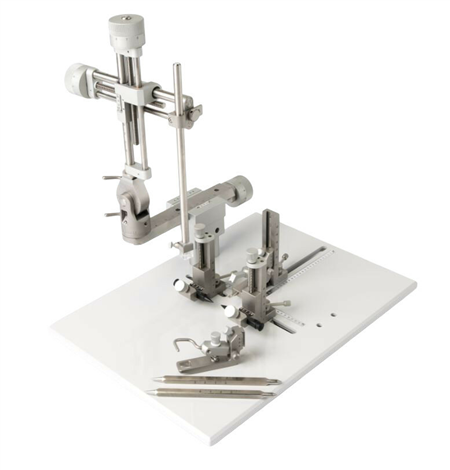

505203
Mouse And Rat New Standard Stereotaxic Instrument with warmer ready base, includes
- New Standard stereotaxic frame designed with vertical and horizontal adjustment of ear and nose posts accommodate mice and rats of all sizes
- Single Arm, Ultra-Precise, No Display - 10 micron 3-axes, left -hand manipulator arm
- Mouse and rat nose adaptors
- Dual-sided (traditional and non-rupture) rat ear bars, dual-sided mouse ear bars
- Corner-clamp probe holder

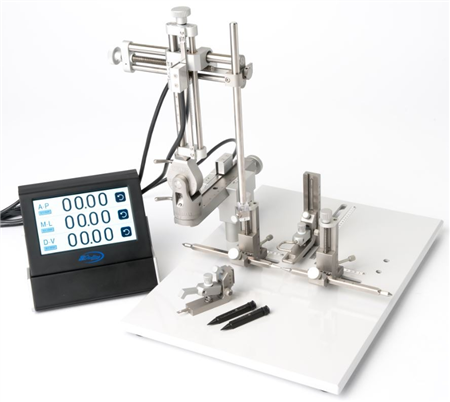

505201
Mouse And Rat New Standard Digital Stereotaxic Instrument with warmer ready base, includes
- New Standard stereotaxic frame designed with vertical and horizontal adjustment of ear and nose posts accommodate mice and rats of all sizes
- Single Arm, Digital Display - 10 micron 3-axes, left -hand manipulator arm with digital display
- Mouse and rat nose adaptors
- Dual-sided (traditional and non-rupture) rat ear bars, dual-sided mouse ear bars
- Corner-clamp probe holder

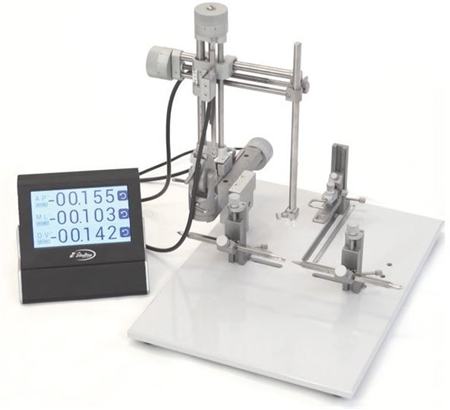

505204
Mouse And Rat New Standard Digital Stereotaxic Instrument with warmer ready base, includes
- New Standard stereotaxic frame designed with vertical and horizontal adjustment of ear and nose posts accommodate mice and rats of all sizes
- Single Arm, Ultra-Precise Digital Display - 1 micron 3-axes, left -hand manipulator arm with digital display
- Mouse and rat nose adaptors
- Dual-sided (traditional and non-rupture) rat ear bars, dual-sided mouse ear bars
- Corner-clamp probe holder

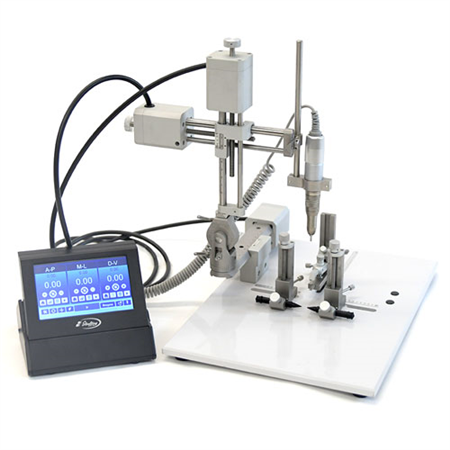

505202
Mouse And Rat New Standard Motorized Stereotaxic Instrument with warmer ready base, includes
- New Standard stereotaxic frame designed with vertical and horizontal adjustment of ear and nose posts accommodate mice and rats of all sizes
- Single Arm, Motorized - 10 micron 3-axes, left -hand manipulator arm with digital display
- Mouse and rat nose adaptors
- Dual-sided (traditional and non-rupture) rat ear bars, dual-sided mouse ear bars
- Corner-clamp probe holder
505381
Mouse And Neonatal Rat U-Frame Motorized Stereotaxic Instrument with warmer ready base, includes
- U-Frame stereotaxic frame with warmer ready base
- Single Arm, Motorized - 10 micron 3-axes, left -hand manipulator arm with digital display
- Mouse/Neonatal Rat Adaptors with integrated warming pad
- Dual-sided (traditional and non-rupture) mouse ear bars (with Delrin® ear bars with tapered points on one end, and rubber tips on the other end)
- Corner-clamp probe holder
Does not include rat nose adapter or rat ear bars

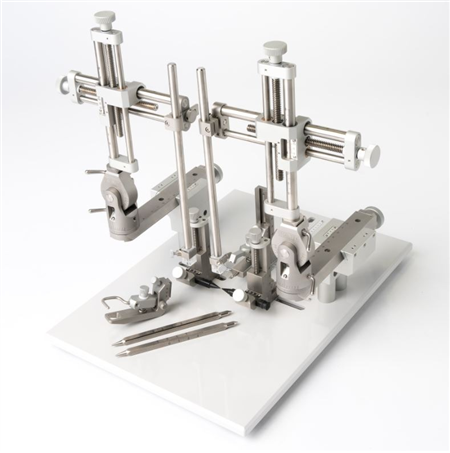

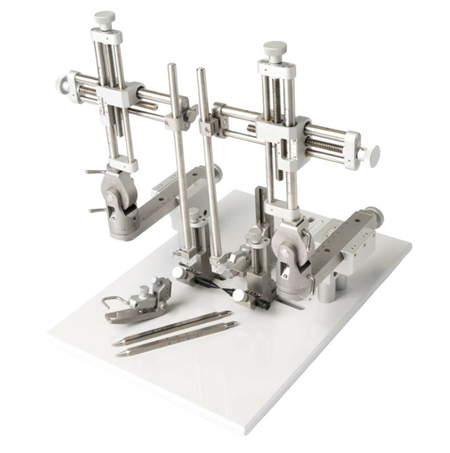

505206
Mouse And Rat New Standard Dual Arm Stereotaxic Instrument with warmer ready base, includes
- New Standard stereotaxic frame designed with vertical and horizontal adjustment of ear and nose posts accommodate mice and rats of all sizes
- Dual Arm, No Display - 100 micron 3-axes, left and right hand manipulator arms
- Mouse and rat nose adaptors
- Dual-sided (traditional and non-rupture) rat ear bars, dual-sided mouse ear bars
- Corner-clamp probe holder

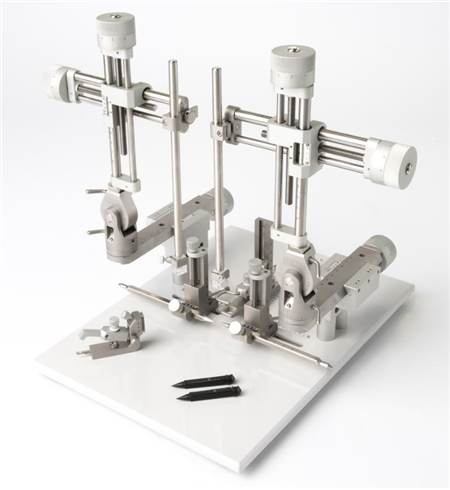

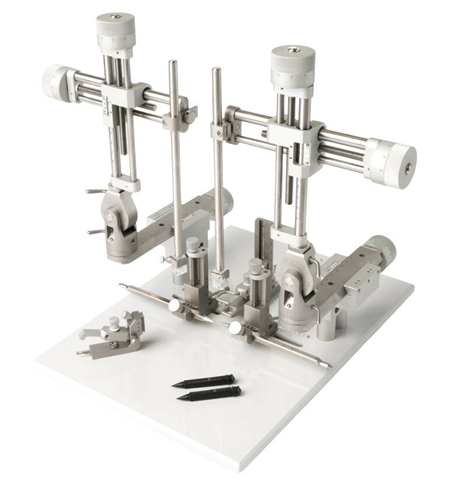

505208
Mouse And Rat New Standard Dual Arm Stereotaxic Instrument with warmer ready base, includes
- New Standard stereotaxic frame designed with vertical and horizontal adjustment of ear and nose posts accommodate mice and rats of all sizes
- Dual Arm, Ultra-Precise, No Display - 10 micron 3-axes, left and right hand manipulator arms
- Mouse and rat nose adaptors
- Dual-sided (traditional and non-rupture) rat ear bars, dual-sided mouse ear bars
- Corner-clamp probe holder

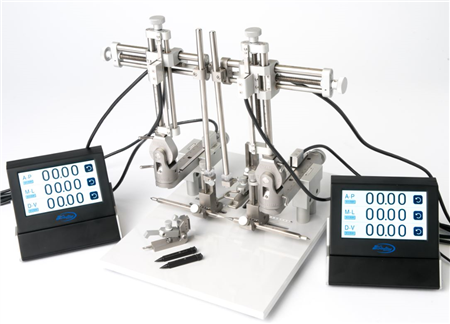

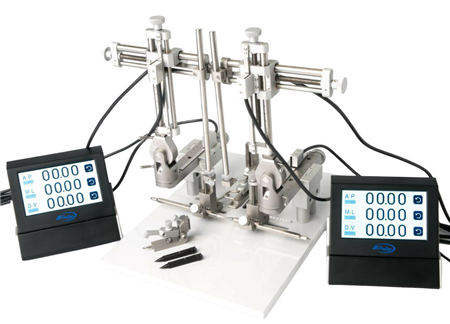

505207
Mouse And Rat New Standard Digital Dual Arm Stereotaxic Instrument with warmer ready base, includes
- New Standard stereotaxic frame designed with vertical and horizontal adjustment of ear and nose posts accommodate mice and rats of all sizes
- Dual Arm, Digital Display - 10 micron 3-axes, left and right hand manipulator arms
- Mouse and rat nose adaptors
- Dual-sided (traditional and non-rupture) rat ear bars, dual-sided mouse ear bars
- Corner-clamp probe holder

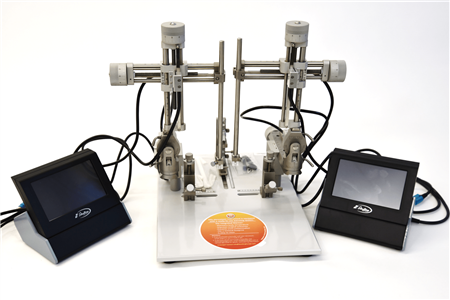

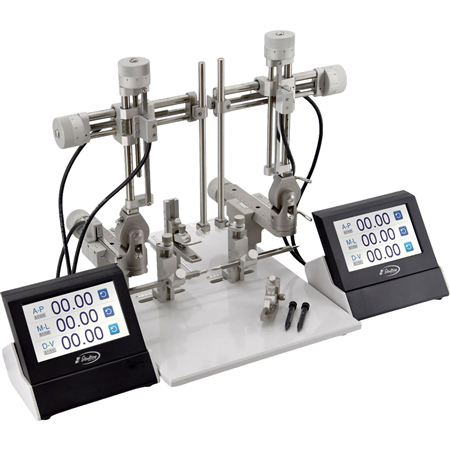

505209
Mouse And Rat New Standard Digital Dual Arm Stereotaxic Instrument with warmer ready base, includes
- New Standard stereotaxic frame designed with vertical and horizontal adjustment of ear and nose posts accommodate mice and rats of all sizes
- Dual Arm, Ultra-Precise, Digital Display - 1 micron 3-axes, left and right hand manipulator arms
- Mouse and rat nose adaptors
- Dual-sided (traditional and non-rupture) rat ear bars, dual-sided mouse ear bars
- Corner-clamp probe holder

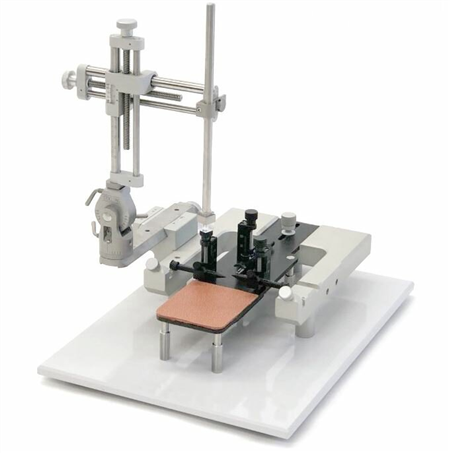

505281
Mouse And Rat U-Frame Stereotaxic Instrument with warmer ready base, includes
- U-Frame stereotaxic frame with warmer ready base
- Single Arm, No Display - 100 micron 3-axes, left -hand manipulator arm
- Mouse/Neonatal Rat Adaptors with integrated warming pad
- Mouse and rat nose adaptors
- Dual-sided (traditional and non-rupture) rat ear bars, dual-sided mouse ear bars (with Delrin® ear bars with tapered points on one end, and rubber tips on the other end)
- Corner-clamp probe holder
505282
Mouse And Rat U-Frame Stereotaxic Instrument with warmer ready base, includes
- U-Frame stereotaxic frame with warmer ready base
- Single Arm, Ultra-Precise, No Display - 10 micron 3-axes, left -hand manipulator arm
- Mouse/Neonatal Rat Adaptors with integrated warming pad
- Mouse and rat nose adaptors
- Dual-sided (traditional and non-rupture) rat ear bars, dual-sided mouse ear bars (with Delrin® ear bars with tapered points on one end, and rubber tips on the other end)
- Corner-clamp probe holder

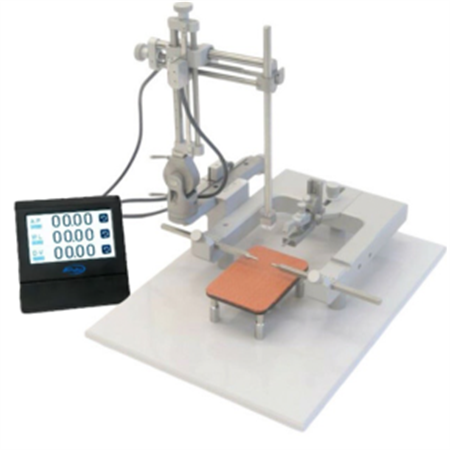

505371
Mouse And Rat U-Frame Digital Stereotaxic Instrument with warmer ready base, includes
- U-Frame stereotaxic frame with warmer ready base
- Single Arm, Digital Display - 10 micron 3-axes, left -hand manipulator arm
- Mouse/Neonatal Rat Adaptors with integrated warming pad
- Mouse and rat nose adaptors
- Dual-sided (traditional and non-rupture) rat ear bars, dual-sided mouse ear bars (with Delrin® ear bars with tapered points on one end, and rubber tips on the other end)
- Corner-clamp probe holder

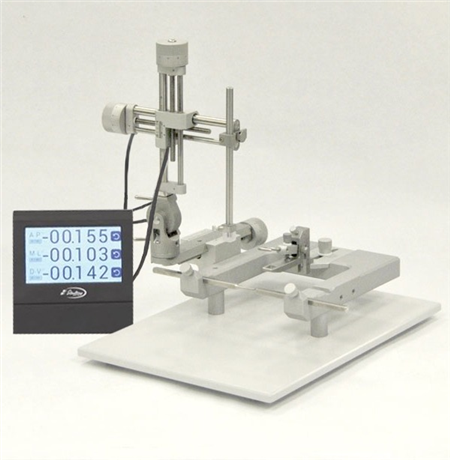

505372
Mouse And Rat U-Frame Digital Stereotaxic Instrument with warmer ready base, includes
- U-Frame stereotaxic frame with warmer ready base
- Single Arm, Ultra-Precise, Digital Display - 1 micron 3-axes, left -hand manipulator arm
- Mouse/Neonatal Rat Adaptors with integrated warming pad
- Mouse and rat nose adaptors
- Dual-sided (traditional and non-rupture) rat ear bars, dual-sided mouse ear bars (with Delrin® ear bars with tapered points on one end, and rubber tips on the other end)
- Corner-clamp probe holder
505283
Mouse And Rat U-Frame Dual Arm Stereotaxic Instrument with warmer ready base, includes
- U-Frame stereotaxic frame with warmer ready base
- Dual Arm, No Display - 100 micron 3-axes, left and right hand manipulator arms
- Mouse/Neonatal Rat Adaptors with integrated warming pad
- Mouse and rat nose adaptors
- Dual-sided (traditional and non-rupture) rat ear bars, dual-sided mouse ear bars (with Delrin® ear bars with tapered points on one end, and rubber tips on the other end)
- Corner-clamp probe holder
505284
Mouse And Rat U-Frame Ultra-Precise Dual Arm Stereotaxic Instrument with warmer ready base, includes
- U-Frame stereotaxic frame with warmer ready base
- Dual Arm, Ultra-Precise, No Display - 10 micron 3-axes, left and right hand manipulator arms
- Mouse/Neonatal Rat Adaptors with integrated warming pad
- Mouse and rat nose adaptors
- Dual-sided (traditional and non-rupture) rat ear bars, dual-sided mouse ear bars (with Delrin® ear bars with tapered points on one end, and rubber tips on the other end)
- Corner-clamp probe holder

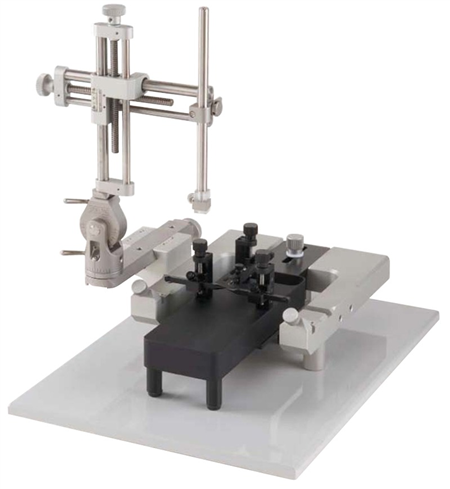

505233
Mouse & Neonatal Rat Stereotaxic frame, includes
- 100 micron 3-axes, left-hand manipulator arm
- rat adaptor, traditional (18°) ear bars, and corner clamp probe holder
- mouse and neonatal rat adaptors (with Delrin® ear bars with tapered points on one end, and rubber tips on the other end)
505234
Mouse & Neonatal Rat Stereotaxic frame, includes
- 10 micron 3-axes, Ultra-precise left-hand manipulator arm
- rat adaptor, traditional (18°) ear bars, and corner clamp probe holder
- mouse and neonatal rat adaptors (with Delrin® ear bars with tapered points on one end, and rubber tips on the other end)

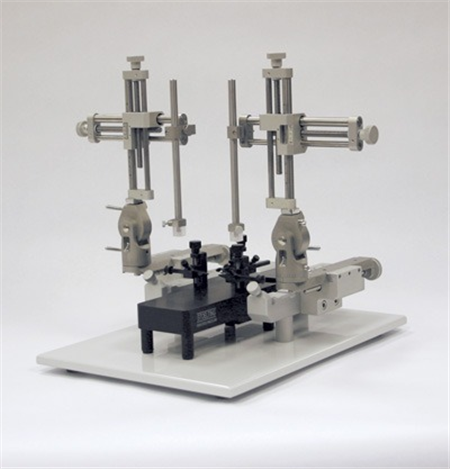

505236
Mouse & Neonatal Rat Dual Stereotax, includes
- 100 micron 3-axes, left- and right-hand manipulator arms
- rat adaptor, traditional (18°) ear bars, and corner clamp probe holder
- mouse and neonatal rat adaptors (with Delrin® ear bars with tapered points on one end, and rubber tips on the other end)
505237
Mouse & Neonatal Dual Rat Stereotaxic frame, includes
- 10 micron Ultra-precise 3-axes, left- and right-hand manipulator arms
- rat adaptor, traditional (18°) ear bars, and corner clamp probe holder
- mouse and neonatal rat adaptors (with Delrin® ear bars with tapered points on one end, and rubber tips on the other end)
505295
Drill and Microinjector Robot, Mouse/Rat

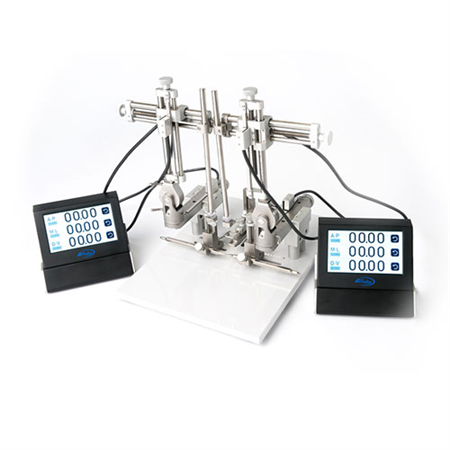

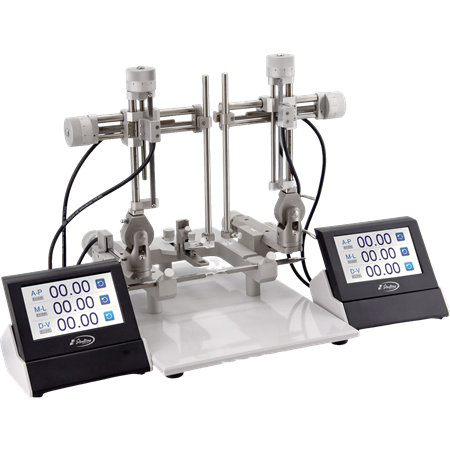

505373
Mouse & Rat Digital Dual Standard U-Frame Stereotaxic Instrument, includes
- Lab Standard U-Frame with warmer ready integrated base
- 10 micron 3-axes, left- and right- hand manipulator arms with digital displays
- Mouse and rat mouth adaptors
- Mouse/Neonatal Rat Adaptor
- Dual tipped ear bar for mice (traditional 18° and non-puncture 45°)
- Dual tipped ear bar for rat (traditional 18° and non-puncture 45°)
- Corner clamp probe holder
