Rotational Stereotaxic Frame

This rotational digital stereotaxic frame is designed for either mouse or rat experiments that allows easy and flexible rotation of their heads for adjusting the level of the skull. Another benefit of this rotational stereotaxic u-frame comes from the accuracy of mediolateral rotation perfectly solves the bleeding problem when you inject through the venous sinus. Alignment Indicator can feedback whether the height of the animal’s head is horizontal. Centering Scope helps find Bregma and Lambda points. And you don’t need to set up Bregma repeatedly.

Overview

The Rotational Digital Stereotaxic series allows for quick and precise adjustment of the animal's skull level and alignment of the sagittal suture without the need of repeatedly setting Bregma or repeatedly fixing animal, which can greatly reduce the time required for skull level adjustment. The Alignment lndicator is used to check the horizontal level and also to improve the perpendicularity of the syringe or cannula to the brain, increasing positioning. The Central Magnifier helps find Bregma and Lambda points.

Features & Benefits

• Fitted with a sagittal positioning plate design to minimize the levelness, inclination and alignment of the skull.
• The rotation adaptor can adjust head position in 3 dimensions to maximize the adjustment of horizontal degree and the midline alignment.
• Improve the efficiency of skull horizontal adjustment, and the adjustment process needs no repeated fixation.
• The 40X Central Magnifier and Alignment Indicator assist skull adjustment, achieving high horizontal degree and good repeatability.
• Anaesthesia adapter and tubing is included and can be combined with an inhalation anaesthesia system.

Options For Rotational Digital Stereotaxic Frames

69108	Rotational Digital Stereotaxic Instrument for Mouse, Single Manipulator includes Rotational stereotaxic frame with single arm and digital display (left hand 3-axis digital arm) 60° Ear bars for mouse Mouse anesthesia adaptor with tubing (for mice < 30g) 40x central magnifier 15° Angle adaptor Allignment Indicator
69118	Rotational Digital Stereotaxic Instrument for Mouse, Dual Manipulator includes Rotational stereotaxic frame with dual arm and digital display (1 left hand 3-axis digital arm and 1 right hand 3-axis digital arm) 60° Ear bars for mouse Mouse anesthesia adaptor with tubing (for mice < 30g) 40x central magnifier 15° Angle adaptor Allignment Indicator

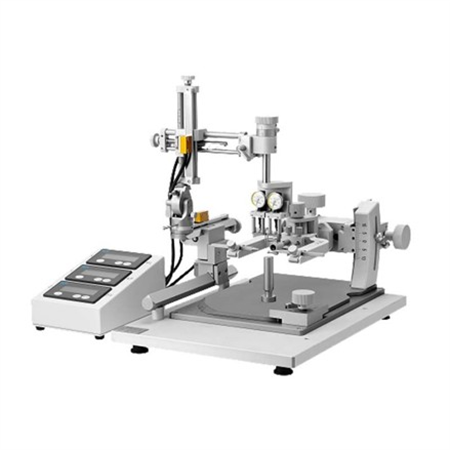

69109	Rotational Digital Stereotaxic Instrument for Rat, Single Manipulator Rotational stereotaxic frame with single arm and digital display (left hand 3-axis digital arm) 18° Ear bars for rat Rat anesthesia adaptor with tubing (for rats < 300g) 40x central magnifier 15° Angle adaptor Allignment Indicator

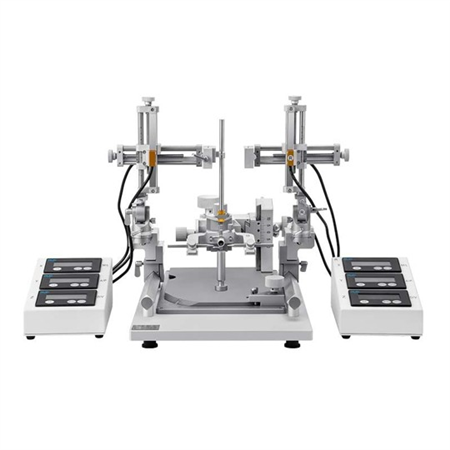

69119	Rotational Digital Stereotaxic Instrument for Rat, Dual Manipulator Rotational stereotaxic frame with dual arm and digital display (1 left hand 3-axis digital arm and 1 right hand 3-axis digital arm) 18° Ear bars for rat Rat anesthesia adaptor with tubing (for rats < 300g) 40x central magnifier 15° Angle adaptor Allignment Indicator

Specifications

• Tri-axial displacement Range in Sagittal plate (X, Y, Z axis): 30 mm
• Left and right rotation Angle adjustment range in Sagittal plate: ±30°
• Swing the Angle up and down to adjust the range in Sagittal plate: ±10°
• Horizontal Angle adjustment range in Center floor: ±10°
• Displacement distance of operating arm (X, Y, Z axis): 80 mm
• Plate size: 400 mm x 325 mm
• The mirror is still served at magnification: 40x
• Alignment Indicator resolution: 0.01 mm



---
