PSt1 Optical Oxygen Sensors For PreSens Meters

PSt1 Optical Oxygen Sensors For PreSens Meters

PSt1 Optical Oxygen Sensors For PreSens Meters

PSt1 Oxygen Sensor

Flow-Through Cell Housed Oxygen Microsensors

Implantable Oxygen Microsensors

Needle-Type Oxygen Microsensor with Fixed Sensor Tip

Needle-Type Oxygen Microsensor




Choose Quantity
FTCH-PSt1-L5-TF-OIW

FTCH-PSt1-L5-TF-OIW

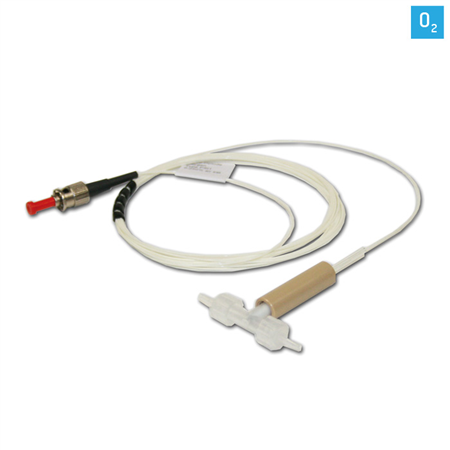

Flow-Through Cell Housed Oxygen Microsensor FTCH-PSt1

  • Perfusion monitoring in smallest volumes
  • High temporal resolution (< 5 sec.)
  • No consumption of oxygen
  • Measures in liquids as well as in the gas phase

The oxygen microsensor housed in a flow-through cell is optimized for a fast response time (t90< 1 sec in gas, < 5 sec. in liquid). The microsensor with a tip size 140 µm is integrated in a sleeve made of Teflon® tightened with a silicone rubber, which is mounted to a T-connector. The liquid volume inside the FTCH is about 310 µL. External tubing with an inner diameter of 1.6, 2.3, and 3.2 mm can be connected via Luer-Lock adpaters. Liquids (e. g. water, blood, etc.) can be pumped through the cell. The FTCH-PSt1 has a measurement range of 0 – 50 % oxygen, with a detection limit of 0.05 % oxygen.

Specification

FTCH: flow-through cell housing oxygen microsensor
PSt1: oxygen sensitive coating 0-250% air saturation
L5: cable length 5 meter
TF: flat broken glass fiber with a diameter of 140 µm
OIW: white optical isolation


Choose Quantity
IMP-PSt1-L5-LIC0-BGF3-TF-OIW

IMP-PSt1-L5-LIC0-BGF3-TF-OIW

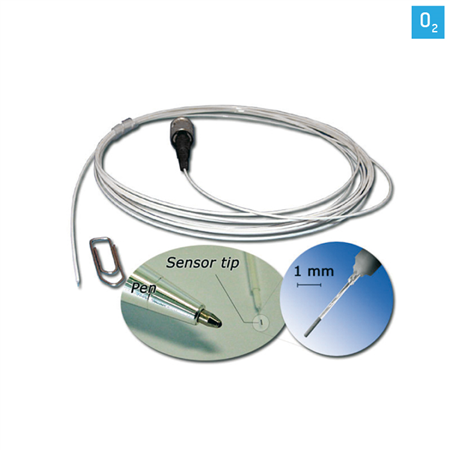

Implantable Oxygen Microsensor IMP-PSt1 (Minimum Order Quantity: 3)

  • High spatial resolution (140 μm)
  • High temporal resolution (t90 < 3 sec.)
  • Integration into customized housings and set-ups
  • No consumption of oxygen
  • Measurement in headspace & liquids

This miniaturized optical oxygen microsensor is designed for various customized applications. The tiny probe has a tip size 140 µm. The microsensor tip is not mounted into any additional housing. The bare glass fiber tip can be mounted to your own housings, steel tubes and micro respirometer chambers etc. The small outer diameter even allows insertion into implantable Venflon-tubes. Moreover, the microsensor can be deployed in sealed containers to measure the oxygen content directly. The IMP-PSt1 has a measurement range of 0 – 50 % oxygen, with a limit of detection of 0.05 % O2.

Specification

IMP: implantable oxygen microsensor
PSt1: oxygen sensitive coating 0-250% air saturation
L5: length of optical fiber is 5 meter
LIC0: additional length of free inner plastic coating is 0 mm
BGF3: bare glass fiber length (Æ 140 µm) is 3 mm
TF: flat broken fiber tip with a diameter of 140 µm
OIW: with additional white optical isolation


Choose Quantity
IMP-PSt1-L5-LIC0-BGF3-TS-YOP

IMP-PSt1-L5-LIC0-BGF3-TS-YOP

Implantable Oxygen Microsensor IMP-PSt1 (Minimum Order Quantity: 3)

  • High spatial resolution (< 50 μm)
  • High temporal resolution (t90 < 3 sec.)
  • Integration into customized housings and set-ups
  • No consumption of oxygen
  • Measurement in headspace & liquids

This miniaturized optical oxygen microsensor is designed for various customized applications. The tiny probe has a tapered tip size from 140 µm to 50 µm. The microsensor tip is not mounted into any additional housing. The bare glass fiber tip can be mounted to your own housings, steel tubes and micro respirometer chambers etc. The small outer diameter even allows insertion into implantable Venflon-tubes. Moreover, the microsensor can be deployed in sealed containers to measure the oxygen content directly. The IMP-PSt1 has a measurement range of 0 – 50 % oxygen, with a limit of detection of 0.05 % O2.

Specification

IMP: Implantable oxygen microsensor
PSt1: oxygen sensitive coating 0-250% air saturation
L5: length of optical fiber is 5 meter
LIC0: additional length of free inner plastic coating is 0 mm
BGF3: bare glass fiber length (Æ 140 µm) is 3 mm
TS: tapered glass fiber with a tip diameter below 50 µm
YOP: with additional optical isolation


Choose Quantity
NFSG-PSt1-L2.5-TF-NS40/0.8-OIW

NFSG-PSt1-L2.5-TF-NS40/0.8-OIW

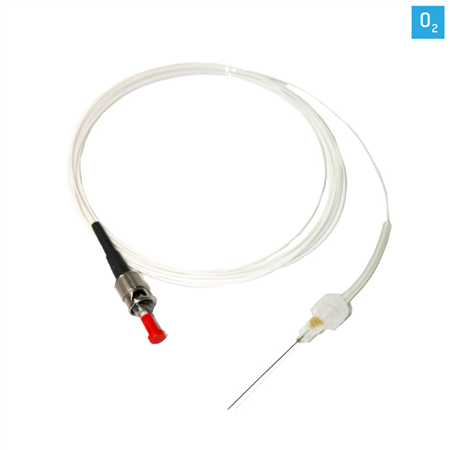

Needle-Type Oxygen Microsensor with Fixed Sensor Tip NFSG-PSt1 (Minimum Order Quantity: 3)

  • High spatial resolution (< 140 μm)
  • High temporal resolution (t90 < 3 sec.)
  • No consumption of oxygen
  • Measurement in headspace or smallest volumes

The tiny sensor tip of this oxygen microsensor is fixed inside a steel needle, so it does not protrude the needle tip. It is specially designed for packaging applications and measurements in the headspace. Fixed inside the needle the sensor can be pierced through the packaging material and the oxygen content in the headspace can be determined within seconds. The NFSG-PSt1 has a measurement range of 0 – 50 % oxygen, with a limit of detection of 0.05 % oxygen.

Specification

NFSG: needle type housing with fixed oxygen microsensor (measurement in gas)
PSt1: oxygen sensitive coating 0-250% air saturation
L2.5: length of optical fiber is 2.5 meter
TF: flat broken glass fiber with a diameter of 140 µm
NS40/0.8: stainless needle with 40 mm length and 0.8 mm outer diameter
OIW: optical isolation white


Choose Quantity
NTH-PSt1-L2.5-TF-NS40/0.8-OIW

NTH-PSt1-L2.5-TF-NS40/0.8-OIW

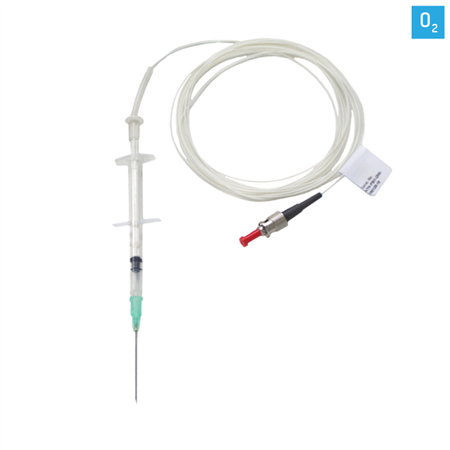

Needle-Type Oxygen Microsensor NTH-PSt1 (Minimum Order Quantity: 3)

  • High spatial resolution (< 140 μm)
  • High temporal resolution (t90 < 3 sec.)
  • No consumption of oxygen
  • Signal independent of flow velocity
  • Measures in liquids as well as in gas phase

This sensor is a miniaturized optical oxygen sensor designed for all research and packaging applications where tip size < 140 μm flat-broken sensor tip TF and fast response time (t90 < 3 s) are necessary. It is mounted inside a stainless steel needle, which protects the optical fiber and oxygen-sensitive sensor tip. This design is optimal for easy penetration of tissue, septum rubber or packaging materials. After penetration the sensor tip is extended for measurements.

Specification

NTH: needle type housing oxygen microsensor
PSt1: oxygen sensitive coating 0-250% air saturation
L2.5: length of optical fiber is 2.5 meter
TF: flat broken glass fiber with a diameter of 140 µm
NS40/0.8: mounted in a stainless needle with 40 mm length and 0.8 mm outer diameter
OIW: with a white optical  isolation


Choose Quantity
NTH-PSt1-L5-TF-NS40/0.8-OIW

NTH-PSt1-L5-TF-NS40/0.8-OIW

Needle-Type Oxygen Microsensor NTH-PSt1 (Minimum Order Quantity: 3)

  • High spatial resolution (< 140 μm)
  • High temporal resolution (t90 < 3 sec.)
  • No consumption of oxygen
  • Signal independent of flow velocity
  • Measures in liquids as well as in gas phase

This sensor is a miniaturized optical oxygen sensor designed for all research and packaging applications where size < 140 μm flat-broken sensor tip TF and fast response time (t90 < 3 s) are necessary. It is mounted inside a stainless steel needle, which protects the optical fiber and oxygen-sensitive sensor tip. This design is optimal for easy penetration of tissue, septum rubber or packaging materials. After penetration the sensor tip is extended for measurements.

Specification

NTH: needle type housing oxygen microsensor
PSt1: oxygen sensitive coating 0-250% air saturation
L5: length of optical fiber is 5 meter
TF: flat broken glass fiber with a diameter of 140 µm
NS40/0.8: mounted in a stainless needle with 40 mm length and 0.8 mm outer diameter
OIW: optical isolation white


Choose Quantity
NTH-PSt1-L5-TS-NS40/0.8-NOP

NTH-PSt1-L5-TS-NS40/0.8-NOP

Needle-Type Oxygen Microsensor NTH-PSt1 (Minimum Order Quantity: 3)

  • High spatial resolution (< 50 μm)
  • High temporal resolution (t90 < 3 sec.)
  • No consumption of oxygen
  • Signal independent of flow velocity
  • Measures in liquids as well as in gas phase

This sensor is a miniaturized optical oxygen sensor designed for all research and packaging applications where size < 50 µm tapered sensor tip TS and fast response time (t90 < 3 s) are necessary. It is mounted inside a stainless steel needle, which protects the optical fiber and oxygen-sensitive sensor tip. This design is optimal for easy penetration of tissue, septum rubber or packaging materials. After penetration the sensor tip is extended for measurements.

Specification

NTH: needle type housing oxygen microsensor
PSt1: oxygen sensitive coating 0-250% air saturation
L5: length of optical fiber is 5 meter
TS: tapered glass fiber with a diameter of < 50 µm
NS40/0.8: mounted in a stainless needle with 40 mm length and 0.8 mm outer diameter
NOP: no optical isolation


Choose Quantity
NTH-PSt1-L5-TS-NS40/0.8-YOP

NTH-PSt1-L5-TS-NS40/0.8-YOP

Needle-Type Oxygen Microsensor NTH-PSt1 (Minimum Order Quantity: 3)

  • High spatial resolution (< 50 μm)
  • High temporal resolution (t90 < 3 sec.)
  • No consumption of oxygen
  • Signal independent of flow velocity
  • Measures in liquids as well as in gas phase

This sensor is a miniaturized optical oxygen sensor designed for all research and packaging applications where size < 50 µm tapered sensor tip TS and fast response time (t90 < 3 s) are necessary. It is mounted inside a stainless steel needle, which protects the optical fiber and oxygen-sensitive sensor tip. This design is optimal for easy penetration of tissue, septum rubber or packaging materials. After penetration the sensor tip is extended for measurements.

Specification

NTH: needle type housing oxygen microsensor
PSt1: oxygen sensitive coating 0-250% air saturation
L5: length of optical fiber is 5 meter
TS: tapered glass fiber with a diameter of < 50 µm
NS40/0.8: mounted in a stainless needle with 40 mm length and 0.8 mm outer diameter
YOP: with additional optical isolation
