PSt3 Optical Oxygen Sensors For PreSens Meters
PSt3 Optical Oxygen Sensors For PreSens Meters
PSt3 Oxygen Sensor |
Oxygen Dipping Probe
|
O2 Flow-Through Cell
|
Single-Use O2 Flow-Through Cell |
Oxygen Probe for In-Line Measurement
SensorVial
Oxygen Sensor
Self-adhesive Oxygen Sensor
O2 Sensor Stick
|
DP-PSt3-L2.5-St10-YOP

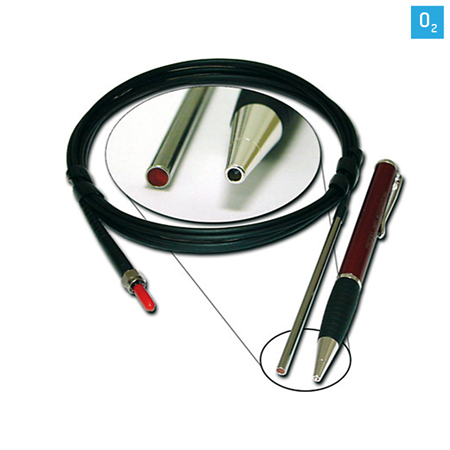

Oxygen Dipping Probe DP-PSt3
- Excellent long-term stability
- Pressure resistant (max. 5 bar)
- Polarization-free
- No membrane cleaning and replacement necessary
- No electrolyte solution to replenish
- Long shelf life
The oxygen dipping probe type PSt3 for measurement in normal oxygen range consists of a polymer optical fiber where one end is coated with an oxygen-sensitive foil. The end of the fiber is covered in a high grade steel tube to protect both the sensor material and the fiber. The steel tube has an outer diameter of 4 mm and a length of 10 cm. Other lengths are available on request. Due to the use of a polymer optical fiber this probe is compatible to temperatures up to + 70 °C.
Specification
DP: Dipping Probe
PSt3: oxygen sensitive coating, 0 - 100 % oxygen
L2.5: length of optical fiber is 2.5 meter
St10: length of steel tube is 10 cm
YOP: with additional optical isolation
FTC-PSt3-L2.5

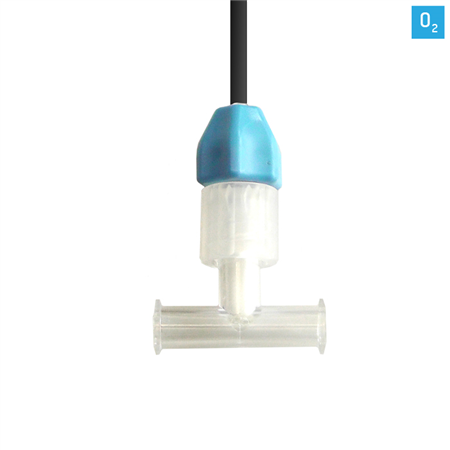

O2 Flow-Through Cell FTC-PSt3
- Precise online monitoring of oxygen
- Different sizes and shapes for various flow rates
- Easy connection to external tubing
Miniaturized chemical optical oxygen sensors integrated in flow-through cells (FTC-PSt3) allow non-invasive online monitoring of oxygen in perfusion systems. The sensors are fixed to color coded sticks, which can be attached to flow-through cells of different size and shape according to your requirements. A polymer optical fiber connects the sensor inside the flow-through cell to the respective O2 meter (e. g. Fibox 4). The FTC-PST3 cells are made of polycarbonate.
Specification
FTC: flow through cell with integrated planar oxygen sensor
PSt3: oxygen sensitive coating, 0 - 100 % oxygen
L2.5: length of optical fiber is 2.5 meter
FTC-PSt3-OIW-4mm
O2 Flow-Through Cell FTC-PSt3
- Precise online monitoring of oxygen
- Different sizes and shapes for various flow rates
- Easy connection to external tubing
Miniaturized chemical optical oxygen sensors integrated in flow-through cells (FTC-PSt3) allow non-invasive online monitoring of oxygen in perfusion systems. The sensors are fixed to color coded sticks, which can be attached to flow-through cells of different size and shape according to your requirements. A polymer optical fiber connects the sensor inside the flow-through cell to the respective O2 meter (e. g. Fibox 4). The FTC-PST3 cells are made of polycarbonate.
Specification
FTC: flow-through cell
PSt3: oxyen sensitive coating, 0 -100 % oxygen
OIW: with white optical isolation
4mm: 4 mm connection, Luer Lock
FTC-PSt3-YOP-1/2''
O2 Flow-Through Cell FTC-PSt3
- Precise online monitoring of oxygen
- Different sizes and shapes for various flow rates
- Easy connection to external tubing
Miniaturized chemical optical oxygen sensors integrated in flow-through cells (FTC-PSt3) allow non-invasive online monitoring of oxygen in perfusion systems. The sensors are fixed to color coded sticks, which can be attached to flow-through cells of different size and shape according to your requirements. A polymer optical fiber connects the sensor inside the flow-through cell to the respective O2 meter (e. g. Fibox 4). The FTC-PST3 cells are made of polycarbonate.
Specification
FTC: flow-through cell
PSt3: oxygen sensitive coating, 0 - 100 % oxygen
YOP: with additional optical isolation
1/2'': 1/2'' connection, Luer Lock
FTC-PSt3-YOP-1/4''
O2 Flow-Through Cell FTC-PSt3
- Precise online monitoring of oxygen
- Different sizes and shapes for various flow rates
- Easy connection to external tubing
Miniaturized chemical optical oxygen sensors integrated in flow-through cells (FTC-PSt3) allow non-invasive online monitoring of oxygen in perfusion systems. The sensors are fixed to color coded sticks, which can be attached to flow-through cells of different size and shape according to your requirements. A polymer optical fiber connects the sensor inside the flow-through cell to the respective O2 meter (e. g. Fibox 4). The FTC-PST3 cells are made of polycarbonate.
Specification
FTC: flow-through cell
PSt3: oxygen sensitive coating, 0 - 100 % oxygen
YOP: with additional optical isolation
1/4'': 1/4'' connection, Luer Lock
FTC-PSt3-YOP-4mm
O2 Flow-Through Cell FTC-PSt3
- Precise online monitoring of oxygen
- Different sizes and shapes for various flow rates
- Easy connection to external tubing
Miniaturized chemical optical oxygen sensors integrated in flow-through cells (FTC-PSt3) allow non-invasive online monitoring of oxygen in perfusion systems. The sensors are fixed to color coded sticks, which can be attached to flow-through cells of different size and shape according to your requirements. A polymer optical fiber connects the sensor inside the flow-through cell to the respective O2 meter (e. g. Fibox 4). The FTC-PST3 cells are made of polycarbonate.
Specification
FTC: flow-through cell
PSt3: oxygen sensitive coating, 0 -100 % oxygen
YOP: with additional optical isolation
4mm: 4 mm connection, Luer Lock
FTC-SU-PSt3-S

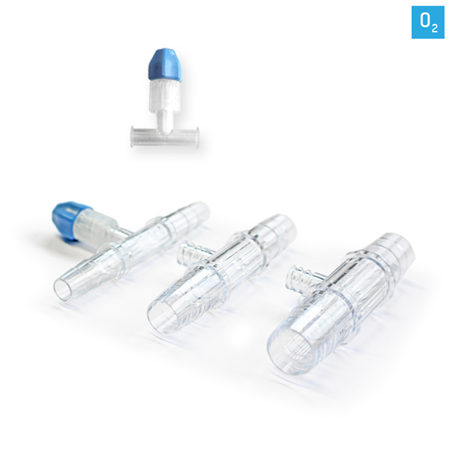

Single-Use O2 Flow-Through Cell FTC-SU-PSt3-S (Minimum Order Quantity: 3)
- Single-use flow-through cells
- Precise online monitoring of oxygen
- Different sizes and shapes for various flow rates
- Easy connection to external tubing
- Beta-irradiated
Miniaturized chemical optical oxygen sensors integrated in single-use flow-through cells (FTC-SU-PSt3) allow non-invasive online monitoring of oxygen in perfusion systems. The sensors are fixed to color coded sticks, which can be attached to flow-through cells of different size and shape, according to your requirements. A polymer optical fiber connects the sensor inside the flow-through cell to the respective O2 meter (e. g. Fibox 4). The FTC-SU-PST3-S single-use cells are made of polycarbonate and are delivered beta-irradiated.
Specification
FTC: flow-through cell
SU: single-use
PSt3: oxygen sensitive coating, 0-100 % oxygen
S: beta-irradiated
OIM-PSt3-D12/L120-L2.5

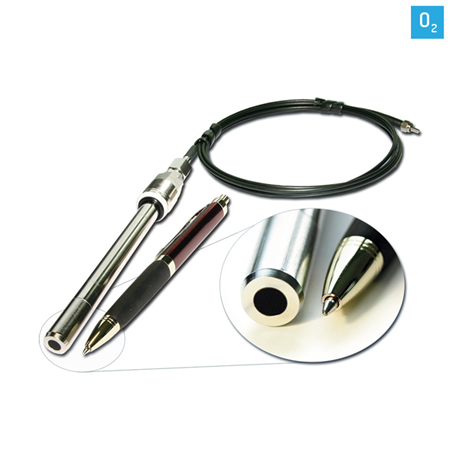

Oxygen Probe for In-Line Measurement OIM-PSt3
- Stands autoclaving, SIP (+ 130 °C, 1.5 atm) & CIP (2 % NaOH, + 80 °C)
- Polarization-free
- No membrane cleaning and replacement necessary
- No electrolyte solutions to replenish
- Pressure resistant
- Measurement in steel fermenters
- Oxygen measurements in biotech & pharma
The oxygen probe for in-line measurement (OIM) consists of a fitting made of stainless steel with an optical exchange cap (OEC) in which the oxygen sensor is integrated. The OEC is screwed to the top of the metal fitting, and can be exchanged. The OIM is connected to the oxygen meter via an optical fiber, has a standardized thread and length and is compatible with most bioreactors and port adapters. In addition, customized fittings for e. g. sight glasses are offered.
Specification
OIM: oxygen probe for inline measurement in fermenter
PSt3: Sensor coating type PSt3 0 - 50% oxygen
D12/L120: Steel tube diameter 12 mm / length 120 mm thread PG13.5
L2.5: length of optical fiber is 2.5 meter
SensorVial SV-PSt3-20mL-NST

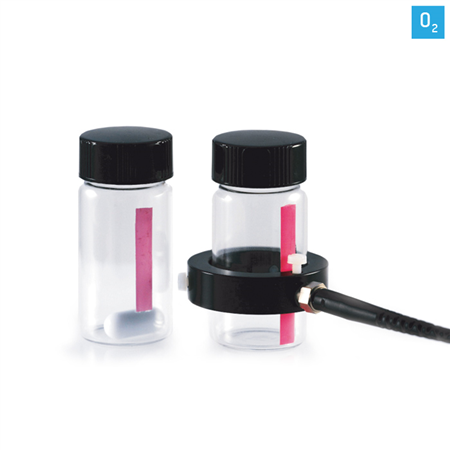

SensorVial SV-PSt3-20mL-NST
- Non-invasive online oxygen measurements
- No consumption of oxygen
- Signal independent of flow velocity
- Oxygen measurements in liquids and gas phase
- Autoclavable
A sensor stripe is integrated in this 20 mL glass vial. The sensor is read out with an optical fiber, which is held in place by the Vial Adapter. The Vial Adapter can be positioned in different heights. The SensorVial SV-PSt3-20mL-NST is autoclavable, and the ideal tool for respiration measurements. Since the sensor stripes are optically isolated with a black layer they are also very well suited for photosynthesis measurements. For stirred applications the SensorVial is also available with a sensor stripe that does not reach all the way to the bottom. Oxygen can be measured simultaneously in liquid and headspace.
Specification
SV: SensorVial
PSt3: oxygen-sensitive coating 0 - 100 % oxygen
20mL: volume of the vessel = 20 mL
NST: for non-stirred applications
SensorVial SV-PSt3-20mL-YST
SensorVial SV-PSt3-20mL-NST
- Non-invasive online oxygen measurements
- No consumption of oxygen
- Signal independent of flow velocity
- Oxygen measurements in liquid and gas phase
- Autoclavable
The SensorVial is a 20 mL glass vial with an integrated optical oxygen sensor stripe. It is connected to the transmitter by an optical fiber. With the Vial Adapter the optical fiber can be positioned in different heights for oxygen measurements. The SensorVial SV-PSt3-20mL-YST is autoclavable, and the ideal tool for respiration measurements. Since the sensor spots are optically isolated with a black layer they are also very well suited for photosynthesis measurements. For non-stirred applications vials with a sensor stripe, that reaches all the way to the bottom are also available. Oxygen can be measured simultaneously in liquid and headspace.
Specification
SV: SensorVial
PSt3: oxygen-sensitive coating 0 - 100 % oxygen
20mL: volume of the vessel = 20 mL
YST: for stirred applications
SP-PSt3-NAU-D5-NOP

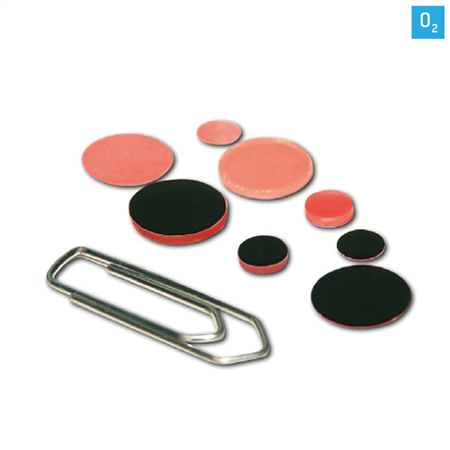

Oxygen Sensor Spot SP-PSt3-NAU (Minimum Order Quantity: 10)
- Non-invasive measurements through the vessel wall
- No consumption of oxygen
- Signal independent of flow velocity
- Measure oxygen in liquids as well as in gas phase
Sensor spots are the most versatile version of non-invasive optical oxygen sensors. The red side of the spot can be attached to the inner surface of any transparent glass or plastic vessel like e. g. shake and spinner flasks, tubes, Petri dishes or cultivation bags. Oxygen is measured contactless and non-destructively through the transparent vessel wall. The SP-PSt3-NAU has a measurement range of 0 – 100 % oxygen in dissolved or gaseous phase. The oxygen sensitive coating is immobilized on 125 µm flexible transparent polyester foil, which does not stand autoclaving.
Specification
SP: planar sensor spot
PSt3: oxygen sensitive coating 0 - 100 % oxygen
NAU: stands CIP but does not stand autoclavation,
immobilized on 125 µm flexible transparent polyester foil
D5: spot diameter is 5 mm
NOP: without optical isolation
SP-PSt3-NAU-D5-YOP
Oxygen Sensor Spot SP-PSt3-NAU (Minimum Order Quantity: 10)
- Non-invasive measurements through the vessel wall
- No consumption of oxygen
- Signal independent of flow velocity
- Measure oxygen in liquids as well as in gas phase
Sensor spots are the most versatile version of non-invasive optical oxygen sensors. The red side of the spot can be attached to the inner surface of any transparent glass or plastic vessel like e. g. shake and spinner flasks, tubes, Petri dishes or cultivation bags. Oxygen is measured contactless and non-destructively through the transparent vessel wall. The SP-PSt3-NAU has a measurement range of 0 – 100 % oxygen in dissolved or gaseous phase. The oxygen sensitive coating is immobilized on 125 µm flexible transparent polyester foil, which does not stand autoclaving
Specification
SP: planar sensor spot
PSt3: oxygen sensitive coating 0 - 100 % oxygen
NAU: stands CIP but does not stand autoclavation,
immobilized on 125 µm flexible transparent polyester foil
D5: spot diameter is 5 mm
YOP: with additional optical isolation
SP-PSt3-SA23-D5-YOP-S

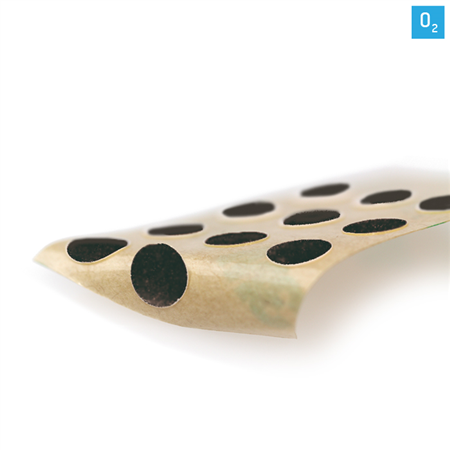

Self-adhesive Oxygen Sensor Spot SP-PSt3-SA (Minimum Order Quantity: 10)
- Simplified integration with new self-adhesive technology
- Compatible with glass & nearly all plastic vessels
- Pre-calibrated & ready-to-use
- Online monitoring without sampling
- Non-invasive measurements through the vessel wall
With the new self-adhesive technology it is easy to integrate these sensor spots in nearly any transparent glass or plastic vessel. The oxygen is measured contactless and non-destructively from the outside – through the vessel wall. The SP-PSt3-SA has a measurement range of 0 – 100 % oxygen in dissolved or gaseous phase and can therefore be used for measurements in liquids as well as in headspace. These sensor spots are extremely versatile and can be applied from biotechnological applications up to quality checks for packed or bottled products.
Specification
SP: planar sensor spot
PSt3: wide-range oxygen sensitive coating
SA23: self-adhesive (23 µm support thickness)
D5: spot diameter is 5 mm
YOP: with optical isolation
S: Beta irradiated
SP-PSt3-SA23-D5-YOP-US
Self-adhesive Oxygen Sensor Spot SP-PSt3-SA (Minimum Order Quantity: 10)
- Simplified integration with new self-adhesive technology
- Compatible with glass & nearly all plastic vessels
- Pre-calibrated & ready-to-use
- Online monitoring without sampling
- Non-invasive measurements through the vessel wall
With the new self-adhesive technology it is easy to integrate these sensor spots in nearly any transparent glass or plastic vessel. The oxygen is measured contactless and non-destructively from the outside – through the vessel wall. The SP-PSt3-SA has a measurement range of 0 – 100 % oxygen in dissolved or gaseous phase and can therefore be used for measurements in liquids as well as in headspace. These sensor spots are extremely versatile and can be applied from biotechnological applications up to quality checks for packed or bottled products.
Specification
SP: planar sensor spot
PSt3: wide-range oxygen sensitive coating
SA23: self-adhesive (23 µm support thickness)
D5: spot diameter is 5 mm
YOP: with optical isolation
US: non-sterile
SP-PSt3-SA-D5-YOP-S
Self-adhesive Oxygen Sensor Spot SP-PSt3-SA (Minimum Order Quantity: 10)
- Simplified integration with new self-adhesive technology
- Compatible with glass & nearly all plastic vessels
- Pre-calibrated & ready-to-use
- Online monitoring without sampling
- Non-invasive measurements through the vessel wall
With the new self-adhesive technology it is easy to integrate these sensor spots in nearly any transparent glass or plastic vessel. The oxygen is measured contactless and non-destructively from the outside – through the vessel wall. The SP-PSt3-SA has a measurement range of 0 – 100 % oxygen in dissolved or gaseous phase and can therefore be used for measurements in liquids as well as in headspace. These sensor spots are extremely versatile and can be applied from biotechnological applications up to quality checks for packed or bottled products.
Specification
SP: planar sensor spot
PSt3: wide-range oxygen sensitive coating
SA: self-adhesive (125 µm support thickness)
D5: spot diameter is 5 mm
YOP: with optical isolation
S: Beta irradiated
SP-PSt3-SA-D5-YOP-US
Self-adhesive Oxygen Sensor Spot SP-PSt3-SA (Minimum Order Quantity: 10)
- Simplified integration with new self-adhesive technology
- Compatible with glass & nearly all plastic vessels
- Pre-calibrated & ready-to-use
- Online monitoring without sampling
- Non-invasive measurements through the vessel wall
With the new self-adhesive technology it is easy to integrate these sensor spots in nearly any transparent glass or plastic vessel. The oxygen is measured contactless and non-destructively from the outside – through the vessel wall. The SP-PSt3-SA has a measurement range of 0 – 100 % oxygen in dissolved or gaseous phase and can therefore be used for measurements in liquids as well as in headspace. These sensor spots are extremely versatile and can be applied from biotechnological applications up to quality checks for packed or bottled products.
Specification
SP: planar sensor spot
PSt3: wide-range oxygen sensitive coating
SA: self-adhesive (125 µm support thickness)
D5: spot diameter is 5 mm
YOP: with optical isolation
US: non-sterile
SP-PSt3-YAU-D5-YOP
Oxygen Sensor Spot SP-PSt3-YAU (Minimum Order Quantity: 5)
- Contactless measurements through the vessel wall
- No consumption of oxygen
- Signal independent of flow velocity
- Measures oxygen in liquids as well as in gas phase
- Autoclavable
Sensor spots are the most versatile version of non-invasive optical oxygen sensors. They can be attached to the inner surface of any transparent glass or plastic vessel like e. g. shake and spinner flasks, tubes, Petri dishes or cultivation bags. Oxygen is measured non-invasively and non-destructively through the transparent vessel wall. The SP-PSt3-YAU has a measurement range of 0 – 100 % oxygen in dissolved or gaseous phase. The oxygen sensitive coating is immobilized on a 1 mm glass support, which can be autoclaved (+ 130 °C, 1.5 atm).
Specification
SP: planar sensor spot
PSt3: oxygen sensitive coating 0 - 100 % oxygen
YAU: stands CIP and autoclavation, immobilized on 1 mm glass support
D5: spot diameter is 5 mm
YOP: with additional optical isolation
SST-PSt3-YOP

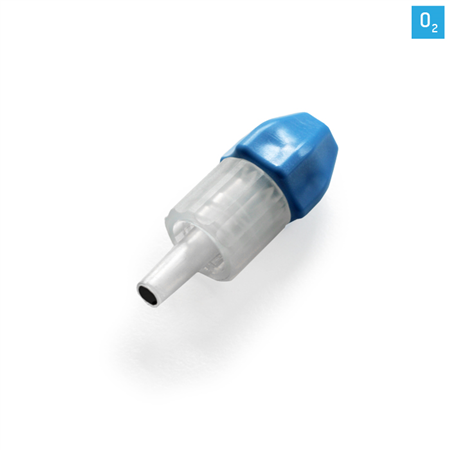

O2 Sensor Stick SST-PSt3-US (Minimum Order Quantity: 3)
- Non-invasive oxygen measurements in a max. range of 0 - 100 % O2
- Small size
- Easy connection via Luer Lock
- For customized integration & perfusion cell culture monitoring
This Luer Lock adapter is equipped with a miniaturized O2 Sensor Spot type PSt3 (max. measurement range 0 - 100 % O2). A polymer optical fiber is attached to the Sensor Stick and connects it to an oxygen meter. This way continuous, non-invasive oxygen measurements can be performed. The O2 Sensor Stick can easily be integrated in customer specific flow-through cells or experimental set-ups via Luer connectors. The SST-PSt3-US is independent of flow velocity or electromagnetic fields and due to its small size it can be implemented in many set-ups where other oxygen measurement equipment simply does not fit.
Specification
SST: sensor stick
PSt3: oxygen sensitive coating
YOP: with additional optical isolation
