PSt7 Optical Oxygen Sensors For PreSens Meters

PSt7 Optical Oxygen Sensors For PreSens Meters

PSt7 Optical Oxygen Sensors For PreSens Meters

PSt7 Oxygen Sensor

Oxygen Dipping Probe

Oxygen Microsensor Integrated in Metal Flow-Through Cell

O2 Flow-Through Cell

Implantable Oxygen Microsensor

Needle-Type Oxygen Microsensor with Fixed Sensor

Needle-Type Oxygen Microsensor

Profiling Oxygen Microsensor

Oxygen Sensor Spot




Choose Quantity
DP-PSt7-10-L2.5-ST10-YOP

DP-PSt7-10-L2.5-ST10-YOP

Oxygen Dipping Probe DP-PSt7

  • Excellent long-term stability
  • Pressure resistant (max. 5 bar)
  • Polarization-free
  • No membrane cleaning and replacement necessary
  • No electrolyte solution to replenish
  • Long shelf life

The oxygen dipping probe type PSt7 is compatible with the multi-purpose oxygen meters Microx 4 & Microx 4 trace. The fiber end with attached oxygen sensor is covered by a stainless steel fitting so the probe can be put into semi-solid samples as well as in liquids without a problem. The probe has an outer diameter of 3 mm and a standard length of 10 cm, but also other lengths are available on request.

Specification

Oxygen Dipping Probe
DP: Dipping Probe
PSt7: oxygen sensitive coating 0-100% oxygen
L2.5: length of optical fiber is 2.5 meter
ST10: length of steel tube is 10 cm
YOP: with additional optical isolation


Choose Quantity
FTCM-PSt7-02-L2.5-VAL1/16''-TF-OIW

FTCM-PSt7-02-L2.5-VAL1/16''-TF-OIW

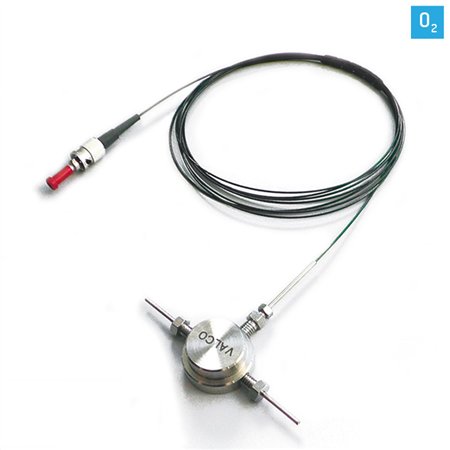

Oxygen Microsensor Integrated in Metal Flow-Through Cell FTCM-PSt7

  • Perfusion monitoring in smallest volumes
  • High temporal resolution (t90 < 3 s)
  • No consumption of oxygen
  • Signal independent of flow velocity
  • Measures in liquids as well as in the gas phase

The FTCM-PSt7 is a stainless steel tee with integrated microsensor. It has connectors for 1/16” steel tubing. Its inner volume of 2.1 µL is extraordinarily small, so it is ideally suited for all applications where only small volumes are available. With the tapered sensor type and its fast response time of t90 < 3 sec. in gas and < 10 sec. in liquids, real-time oxygen monitoring can be performed. The integrated PSt7 type sensor has a measurement range of 0 – 100 % oxygen, and a detection limit of 0.03 % oxygen.

Specification

Flow-Through Sensor integrated in a metal housing
FTCM: flow-through microsensor integrated in a VALCO metal housing
PSt7-02:  oxygen sensitive coating 0-100 % oxygen
L2.5: length of optical fiber is 2.5 meter
VAL1/16": diameter of connectors is 1/16"
TF: flat broken glass fiber with a diameter of 230 µm
OIW: optical isolation white


Choose Quantity
FTC-PSt7-10-YOP-4mm

FTC-PSt7-10-YOP-4mm

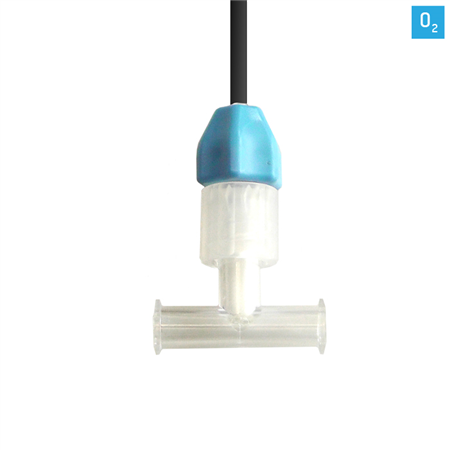

O2 Flow-Through Cell FTC-PSt7

  • Precise online monitoring of oxygen
  • Different sizes and shapes for various flow rates
  • Easy connection to external tubing

A miniaturized oxygen sensor type PSt7 is integrated in a flow-through cell. It allows non-invasive online monitoring of oxygen in perfusion systems. The sensor is fixed to a color coded stick, which can be attached to flow-through cells of different size and shape according to requirements. A polymer optical fiber connects the sensor inside the flow-through cell to the respective O2 meter. The cells are made of polycarbonate.

Specification

FTC: flwo through cell
PSt7-10: oxygen sensitive coating
YOP: with additional optical coating
4mm: 4 mm connection, Luer Lock


Choose Quantity
IMP-PSt7-02-L2.5-LIC0-BGF3-TF-OIW

IMP-PSt7-02-L2.5-LIC0-BGF3-TF-OIW

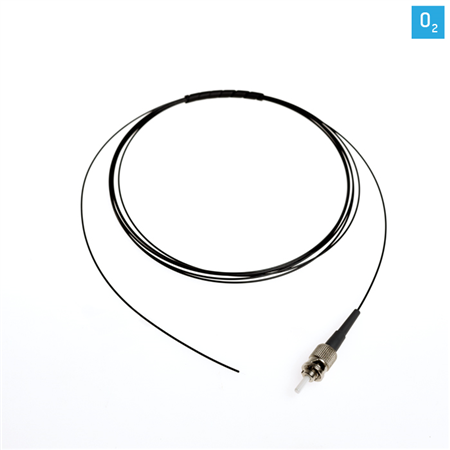

Implantable Oxygen Microsensor IMP-PSt7 (Minimum Order Quantity: 3)

  • High spatial resolution (< 230 μm)
  • High temporal resolution (t90 < 3 sec.)
  • Integration into customized housings and set-ups
  • No consumption of oxygen
  • Measurement in headspace & liquids

This optical oxygen microsensor can be applied in various customized applications. The tiny probe has a tip size 230 µm. The microsensor tip is not mounted into any additional housing. The bare glass fiber tip can be mounted to your own housings, steel tubes and micro respirometer chambers etc. The small outer diameter even allows insertion into implantable Venflon-tubes. Moreover the microsensor can be deployed in sealed containers to measure the oxygen content directly. The IMP-PSt7 has a measurement range of 0 – 100 % oxygen, with a limit of detection of 0.03 % O2.

Specification

IMP: implantable oxygen microsensor
PSt7-02: oxygen sensitive coating 0-100% oxygen
L2.5: length of optical fiber is 2.5 meter
LIC0: additional length of free inner plastic coating is 0 cm
BGF3: bare glass fiber length (Æ 230 µm) is 3 mm
TF: flat broken fiber tip with a diameter of 230 µm
OIW: with additional white optical isolation


Choose Quantity
NFSG-PSt7-02-L5-TF-NS40/0.8-OIW

NFSG-PSt7-02-L5-TF-NS40/0.8-OIW

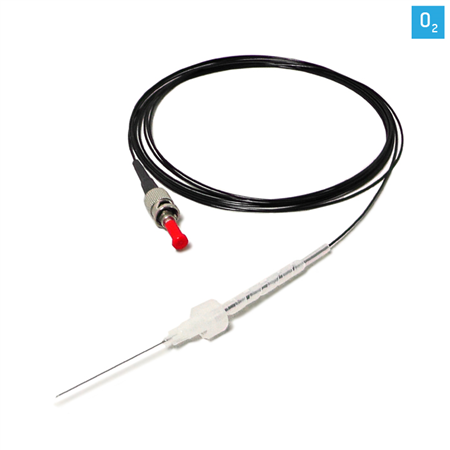

Needle-Type Oxygen Microsensor with Fixed Sensor Tip NFSG-PSt7 (Minimum Order Quantity: 3)

  • High spatial resolution (< 140 μm)
  • High temporal resolution (t90 < 3 sec.)
  • No consumption of oxygen
  • Signal independent of flow velocity
  • Measurement in headspace or smallest volumes

The NFSG-PSt7 is specially designed for headspace measurement in packaging or other applications where gaseous oxygen measurements in small compartments have to be conducted. The sensor tip of this microsensor is fixed inside a steel needle, so it does not protrude the needle tip. Secured this way inside the needle, the sensor can be pierced through material and the oxygen content in smallest headspace volumes can be determined. The NFSG-PSt7 has a measurement range of 0 – 100 % oxygen, with a limit of detection of 0.03 % oxygen.

Specification

NFSG: needle type housing with fixed oxygen microsensor (measurement in gas)
PSt7-02: oxygen sensitive coating 0-100% oxygen
L5: length of optical fiber is 5 meter
TF: flat broken glass fiber with a diameter of 140 µm
NS40/0.8: stainless needle with 40 mm length and 0.8 mm outer diameter
OIW: Optical isolation white


Choose Quantity
NTH-PSt7-02-L2.5-TF-NS40/0.8-OIW

NTH-PSt7-02-L2.5-TF-NS40/0.8-OIW

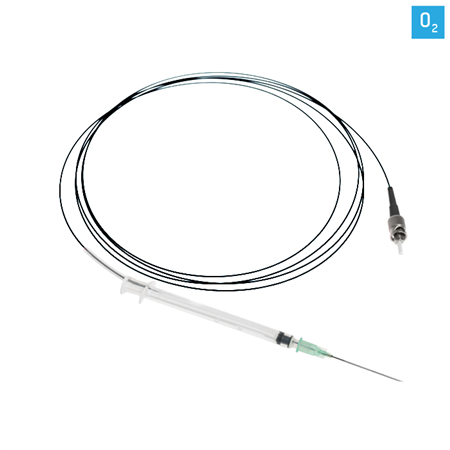

Needle-Type Oxygen Microsensor NTH-PSt7 (Minimum Order Quantity: 3)

  • High spatial resolution down to (< 230 μm)
  • High temporal resolution (t90 < 3 sec.)
  • No consumption of oxygen
  • Signal independent of flow velocity
  • Measures in liquids as well as in gas phase

The glass fiber with its oxygen-sensitive tip < 230 µm with flat-broken sensor tip TF is protected inside a stainless steel needle and can be extended for measurements. As long as the sensor tip is retracted and sheltered inside this needle the microsensor can be pierced through septum rubber or any other harsh material. With its small tip size and fast response time (t90 < 3 s) this sensor is ideally suited for research and packaging applications, where micro-invasive and small sensors are needed.

Specification

NTH: needle type housing oxygen microsensor
PSt7-02: oxygen sensitive coating 0-100% oxygen
L2.5: length of optical fiber is 2.5 meter
TF: flat broken glass fiber with a diameter of 230 µm
NS40/0.8: mounted in a stainless needle with 40 mm length and 0.8 mm diameter
OIW: with a white optical isolation


Choose Quantity
NTH-PSt7-02-L2.5-TS-NS40/0.8-NOP

NTH-PSt7-02-L2.5-TS-NS40/0.8-NOP

Needle-Type Oxygen Microsensor NTH-PSt7 (Minimum Order Quantity: 3)

  • High spatial resolution (< 230 μm)
  • High temporal resolution (t90 < 3 sec.)
  • No consumption of oxygen
  • Signal independent of flow velocity
  • Measures in liquids as well as in gas phase

The glass fiber with its oxygen-sensitive tip < 50 µm with tapered sensor tip TS is protected inside a stainless steel needle and can be extended for measurements. As long as the sensor tip is retracted and sheltered inside this needle the microsensor can be pierced through septum rubber or any other harsh material. With its small tip size and fast response time (t90 < 3 s) this sensor is ideally suited for research and packaging applications, where micro-invasive and small sensors are needed.

Specification

NTH: needle type housing oxygen microsensor
PSt7-02: oxygen sensitive coating 0-100% oxygen
L2.5: length of optical fiber is 2.5 meter
TS: tapered glass fiber with a diameter of < 50 µm
NS40/0.8: mounted in a stainless needle with 40 mm length and 0.8 mm diameter
NOP: no optical isolation


Choose Quantity
PM-PSt7-02-L2.5-TF-NB40/0.8-OIW

PM-PSt7-02-L2.5-TF-NB40/0.8-OIW

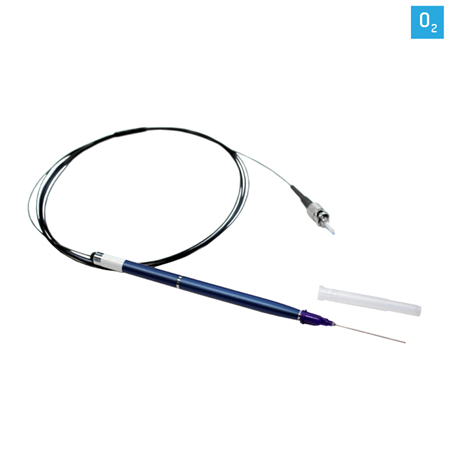

Profiling Oxygen Microsensor PM-PSt7 (Minimum Order Quantity: 3)

  • High spatial resolution (< 230 μm)
  • High temporal resolution (t90 < 3 sec.)
  • Penetration probe for insertion into semi-solids
  • Mechanical interlock for precise vertical localization inside the sample
  • Splash-proof metal housing
  • No electrical interference due to optical measurements

The PM-PSt7 is one of the most robust oxygen microsensor PreSens offers – with a firmer fiber construction and a splash-proof metal housing. It is specifically designed for profiling applications and should be used whenever minimal invasive measurements need to be performed in semi-solid samples, e. g. in sediments, microbial mats or biofilms. The PM-PSt7 is compatible with the Microx 4 and OXY-1 / -4 ST series oxygen meters and has a measurement range of 0 – 100 % oxygen, with a detection limit of 0.03 % oxygen. Together with the Automated Micromanipulator and the software PreSens Profiling Studio boundary layers and gradients can be followed online, while the sensor is automatically moved inside the sample.

Specification

PM: Profiling oxygen microsensor
PSt7-02: oxygen sensitive coating 0-100 % oxygen
L2.5: length of optical fiber is 2.5 meter
TF: flat broken glass fiber with a diameter of 230 µm
NB40/0.8: mounted in a blunt stainless needle with 40 mm length and 0.8 mm outer diameter
OIW: with a white optical isolation


Choose Quantity
PM-PSt7-02-L2.5-TF-NB75/0.8-OIW

PM-PSt7-02-L2.5-TF-NB75/0.8-OIW

Profiling Oxygen Microsensor PM-PSt7 (Minimum Order Quantity: 3)

  • High spatial resolution (< 230 μm)
  • High temporal resolution (t90 < 3 sec.)
  • Penetration probe for insertion into semi-solids
  • Mechanical interlock for precise vertical localization inside the sample
  • Splash-proof metal housing
  • No electrical interference due to optical measurements

The PM-PSt7 is one of the most robust oxygen microsensor PreSens offers – with a firmer fiber construction and a splash-proof metal housing. It is specifically designed for profiling applications and should be used whenever minimal invasive measurements need to be performed in semi-solid samples, e. g. in sediments, microbial mats or biofilms. The PM-PSt7 is compatible with the Microx 4 and OXY-1 / -4 ST series oxygen meters and has a measurement range of 0 – 100 % oxygen, with a detection limit of 0.03 % oxygen. Together with the Automated Micromanipulator and the software PreSens Profiling Studio boundary layers and gradients can be followed online, while the sensor is automatically moved inside the sample.

Specification

PM: Profiling oxygen microsensor
PSt7-02: oxygen sensitive coating 0-100 % oxygen
L2.5: length of optical fiber is 2.5 meter
TF: flat broken glass fiber with a diameter of 230 µm
NB75/0.8: mounted in a blunt stainless needle with 75 mm length and 0.8 mm outer diameter
OIW: with a white optical isolation


Choose Quantity
PM-PSt7-02-L2.5-TF-NS40/0.8-OIW

PM-PSt7-02-L2.5-TF-NS40/0.8-OIW

Profiling Oxygen Microsensor PM-PSt7 (Minimum Order Quantity: 3)

  • High spatial resolution (< 230 μm)
  • High temporal resolution (t90 < 3 sec.)
  • Penetration probe for insertion into semi-solids
  • Mechanical interlock for precise vertical localization inside the sample
  • Splash-proof metal housing
  • No electrical interference due to optical measurements

The PM-PSt7 is one of the most robust oxygen microsensor PreSens offers – with a firmer fiber construction and a splash-proof metal housing. It is specifically designed for profiling applications and should be used whenever minimal invasive measurements need to be performed in semi-solid samples, e. g. in sediments, microbial mats or biofilms. The PM-PSt7 is compatible with the Microx 4 and OXY-1 / -4 ST series oxygen meters and has a measurement range of 0 – 100 % oxygen, with a detection limit of 0.03 % oxygen. Together with the Automated Micromanipulator and the software PreSens Profiling Studio boundary layers and gradients can be followed online, while the sensor is automatically moved inside the sample

Specification

PM: Profiling oxygen microsensor
PSt7-02: oxygen sensitive coating 0-100 % oxygen
L2.5: length of optical fiber is 2.5 meter
TF: flat broken glass fiber with a diameter of 230 µm
NS40/0.8: mounted in a sharp stainless needle with 40 mm length and 0.8 mm outer diameter
OIW: with a white optical isolation


Choose Quantity
PM-PSt7-02-L2.5-TS-NB40/0.8-NOP

PM-PSt7-02-L2.5-TS-NB40/0.8-NOP

Profiling Oxygen Microsensor PM-PSt7 (Minimum Order Quantity: 3)

  • High spatial resolution (< 50 μm)
  • High temporal resolution (t90 < 3 sec.)
  • Penetration probe for insertion into semi-solids
  • Mechanical interlock for precise vertical localization inside the sample
  • Splash-proof metal housing
  • No electrical interference due to optical measurements

The PM-PSt7 is one of the most robust oxygen microsensor PreSens offers – with a firmer fiber construction and a splash-proof metal housing. It is specifically designed for profiling applications and should be used whenever minimal invasive measurements need to be performed in semi-solid samples, e. g. in sediments, microbial mats or biofilms. The PM-PSt7 is compatible with the Microx 4 and OXY-1 / -4 ST series oxygen meters and has a measurement range of 0 – 100 % oxygen, with a detection limit of 0.03 % oxygen. Together with the Automated Micromanipulator and the software PreSens Profiling Studio boundary layers and gradients can be followed online, while the sensor is automatically moved inside the sample.

Specification

PM: Profiling oxygen microsensor
PSt7-02: oxygen sensitive coating 0-100 % oxygen
L2.5: length of optical fiber is 2.5 meter
TS: tapered glass fiber with a tip diameter < 50 µm
NB40/0.8: mounted in a blunt stainless needle with 40 mm length and 0.8 mm outer diameter
NOP: no optical isolation


Choose Quantity
PM-PSt7-02-L2.5-TS-NB75/0.8-NOP

PM-PSt7-02-L2.5-TS-NB75/0.8-NOP

Profiling Oxygen Microsensor PM-PSt7 (Minimum Order Quantity: 3)

  • High spatial resolution (< 50 μm)
  • High temporal resolution (t90 < 3 sec.)
  • Penetration probe for insertion into semi-solids
  • Mechanical interlock for precise vertical localization inside the sample
  • Splash-proof metal housing
  • No electrical interference due to optical measurements

The PM-PSt7 is one of the most robust oxygen microsensor PreSens offers – with a firmer fiber construction and a splash-proof metal housing. It is specifically designed for profiling applications and should be used whenever minimal invasive measurements need to be performed in semi-solid samples, e. g. in sediments, microbial mats or biofilms. The PM-PSt7 is compatible with the Microx 4 and OXY-1 / -4 ST series oxygen meters and has a measurement range of 0 – 100 % oxygen, with a detection limit of 0.03 % oxygen. Together with the Automated Micromanipulator and the software PreSens Profiling Studio boundary layers and gradients can be followed online, while the sensor is automatically moved inside the sample

Specification

PM: Profiling oxygen microsensor
PSt7-02: oxygen sensitive coating 0-100 % oxygen
L2.5: length of optical fiber is 2.5 meter
TS: tapered glass fiber with a tip diameter < 50 µm
NB75/0.8: mounted in a blunt stainless needle with 75 mm length and 0.8 mm outer diameter
NOP: no optical isolation


Choose Quantity
PM-PSt7-02-L2.5-TS-NS40/0.8-NOP

PM-PSt7-02-L2.5-TS-NS40/0.8-NOP

Profiling Oxygen Microsensor PM-PSt7 (Minimum Order Quantity: 3)

  • High spatial resolution (< 50 μm)
  • High temporal resolution (t90 < 3 sec.)
  • Penetration probe for insertion into semi-solids
  • Mechanical interlock for precise vertical localization inside the sample
  • Splash-proof metal housing
  • No electrical interference due to optical measurements

The PM-PSt7 is one of the most robust oxygen microsensor PreSens offers – with a firmer fiber construction and a splash-proof metal housing. It is specifically designed for profiling applications and should be used whenever minimal invasive measurements need to be performed in semi-solid samples, e. g. in sediments, microbial mats or biofilms. The PM-PSt7 is compatible with the Microx 4 and OXY-1 / -4 ST series oxygen meters and has a measurement range of 0 – 100 % oxygen, with a detection limit of 0.03 % oxygen. Together with the Automated Micromanipulator and the software PreSens Profiling Studio boundary layers and gradients can be followed online, while the sensor is automatically moved inside the sample

Specification

PM: Profiling oxygen microsensor
PSt7-02: oxygen sensitive coating 0-100 % oxygen
L2.5: length of optical fiber is 2.5 meter
TS: tapered glass fiber with a tip diameter < 50 µm
NB75/0.8: mounted in a blunt stainless needle with 40 mm length and 0.8 mm outer diameter
NOP: no optical isolation


Choose Quantity
SP-PSt7-10-NAU-D5-YOP

SP-PSt7-10-NAU-D5-YOP

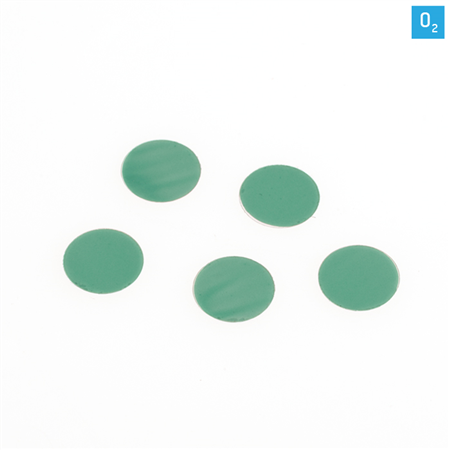

Oxygen Sensor Spot SP-PSt7-NAU (Minimum Order Quantity: 10)

  • Non-invasive measurements through the vessel wall
  • No consumption of oxygen
  • Signal independent of flow velocity
  • Measures oxygen in liquids as well as in gas phase

The oxygen sensor spot SP-PSt7-NAU can be integrated in any transparent or semi-transparent vessel, or optical window while measurements are then taken contactless from the outside – through the vessel wall. Due to their small size these sensors are most versatile and can be implemented in manifold applications for measuring dissolved and gaseous O2. These oxygen sensor spots have a measurement range from 0 – 100 % O2, with a detection limit of 0.03 % O2. The SP-PSt7-NAU does not stand autoclaving.

Specification

SP: planar sensor spot
PSt7-10: oxygen sensitive coating 0-100% oxygen
NAU: stands CIP but does not stand autoclavation;
immobilized on 125 µm flexible transparent polyester foil
D5: spot diameter is 5 mm
YOP: with additional optical isolation


Choose Quantity
SP-PSt7-10-YAU-D5-YOP

SP-PSt7-10-YAU-D5-YOP

Oxygen Sensor Spot SP-PSt7-YAU (Minimum Order Quantity: 5)

  • Non-invasive measurements through the vessel wall
  • No consumption of oxygen
  • Signal independent of flow velocity
  • Measures oxygen in liquids as well as in gas phase

These oxygen sensor spots are most versatile tools for precise oxygen monitoring in any transparent or semi-transparent vessel. Measurements are then taken contactless from the outside – through the vessel wall. The SP-PSt7-YAU measure dissolved as well as gaseous O2. They have a measurement range from 0 – 100 % O2, with a detection limit of 0.03 % O2. The SP-PSt7-YAU can be autoclaved.

Specification

SP: planar sensor spot
PSt7-10: oxygen sensitive coating 0-100% oxygen
YAU: immobilized on 1 mm glass support
D5: spot diameter is 5 mm
YOP: with additional optical isolation

Our Clients Include:

GlaxoSmithKline
University College London
Novartis
Imperial College
University of Cambridge
University of Oxford

Keep in Touch

We promise NEVER to share your details with anyone. You can opt out at any time.
