PSt8 Optical Oxygen Sensors For PreSens Meters

PSt8 Optical Oxygen Sensors For PreSens Meters

PSt8 Optical Oxygen Sensors For PreSens Meters

PSt8 Oxygen Sensor

Oxygen Dipping Probe

Oxygen Microsensor Integrated in Metal Flow-Through Cell

Implantable Oxygen Microsensor

Needle-Type Oxygen Microsensor with Fixed Sensor Tip

Needle-Type Oxygen Microsensor

Oxygen Sensor Spot




Choose Quantity
DP-PSt8-10-L2.5-ST10-YOP

DP-PSt8-10-L2.5-ST10-YOP

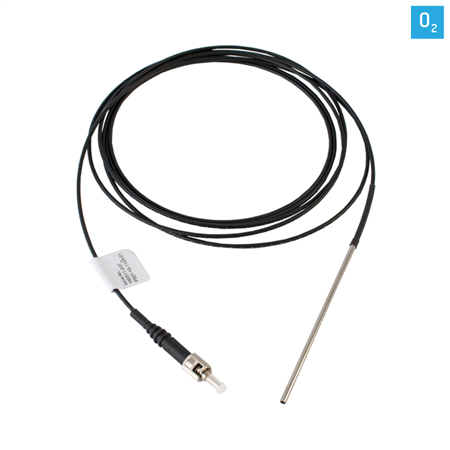

Oxygen Dipping Probe DP-PSt8

  • Excellent long-term stability
  • Pressure resistant (max. 5 bar)
  • Polarization-free
  • No membrane clenaing and replacement necessary
  • No electrolyte solution to replenish
  • Long shelf life

This oxygen probe is used for trace oxygen monitoring in liquids or gasses. It has a stainless steel fitting that covers the end of a polymer optical fiber with an oxygen-sensitive foil attached to it. Protected by this steel housing and with its small outer diameter of 3 mm the sensor can be integrated in liquids and semi-solid samples, such as e. g. sediments or filter sand, without causing disturbance. The probe has a length of 10 cm, but other lengths are also available on request.

Specification

Trace Oxygen Dipping Probe
DP: Dipping Probe
PSt8: oxygen sensitive coating 0-10% oxygen
L2.5: length of optical fiber is 2.5 m
ST10: length of steel tube is 10 cm
YOP: with additional optical isolation


Choose Quantity
FTCM-PSt8-02-L2.5-VAL1/16''-TF-OIW

FTCM-PSt8-02-L2.5-VAL1/16''-TF-OIW

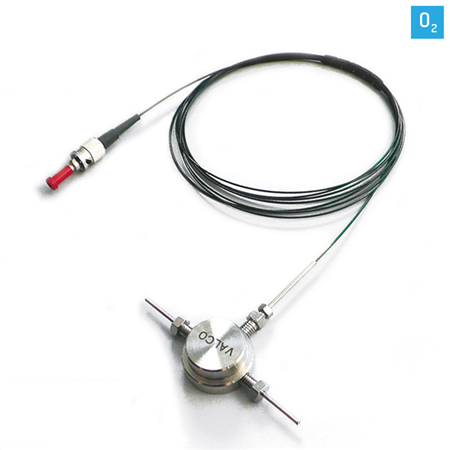

Oxygen Microsensor Integrated in Metal Flow-Through Cell FTCM-PSt8

  • Perfusion monitoring in smallest volumes
  • High temporal resolution (t90 < 3 s)
  • No consumption of oxygen
  • Signal independent of flow velocity
  • Measures in liquids as well as in the gas phase

A stainless steel tee is equipped with an oxygen microsensor. The FTCM-PSt8 has connectors for 1/16” steel tubing, and an inner volume of only 2.1 µL. It is suited for all applications where only small volumes are available. With a tapered microsensor tip and its extraordinarily fast response time t90 < 3 sec. oxygen monitoring in real time can be performed. The PSt8 type sensor has a measurement range of 0 – 10 % oxygen, with a detection limit of 0.007 % oxygen.

Specification

Flow-Through Sensor integrated in a metal housing
FTCM: flow-through microsensor integrated in a VALCO metal housing
PSt8-02:  oxygen sensitive coating 0-10 % oxygen
L2.5: length of optical fiber is 2.5 meter
VAL1/16": diameter of connectors is 1/16"
TF: flat broken glass fiber with a diameter of 230 µm
OIW: optical isolation white


Choose Quantity
IMP-PSt8-02-L2.5-LIC0-BGF3-TF-OIW

IMP-PSt8-02-L2.5-LIC0-BGF3-TF-OIW

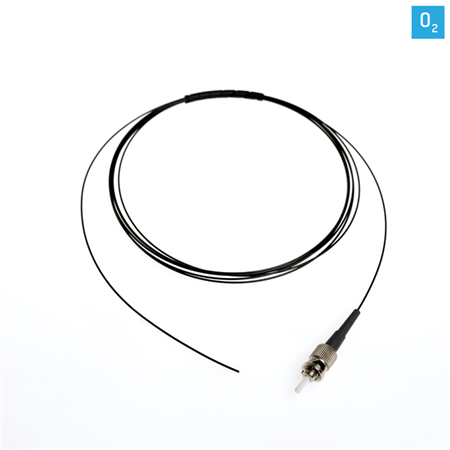

Implantable Oxygen Microsensor IMP-PSt8 (Minimum Order Quantity: 3)

  • High spatial resolution down to (< 230 μm)
  • High temporal resolution (t90 < 3 sec.)
  • Integration into customized housings or set-ups
  • No consumption of oxygen
  • Measurement in headspace & liquids

This tiny probe has a tip size of 230 µm. The microsensor tip is not mounted into any additional housing, so it can be applied in various customized applications. The bare glass fiber tip can be mounted to your own housings, steel tubes and micro respirometer chambers etc. The small outer diameter even allows insertion into implantable Venflon-tubes. Moreover the microsensor can be deployed in sealed containers to measure the oxygen content directly. The IMP-PSt8 has a measurement range of 0 – 10 % oxygen, with a limit of detection of 0.007 % O2.

Specification

IMP: implantable oxygen microsensor
PSt8-02: trace oxygen sensitive coating 0-10% oxygen
L2.5: length of optical fiber is 2.5 meter
LIC0: additional length of free inner plastic coating is 0 cm
BGF3: bare glass fiber length (Æ 230 µm) is 3 mm
TF: flat broken fiber tip with a diameter of 230 µm
OIW: with additional white optical isolation


Choose Quantity
NFSG-PSt8-02-L2.5-TF-NS40/0.8-OIW

NFSG-PSt8-02-L2.5-TF-NS40/0.8-OIW

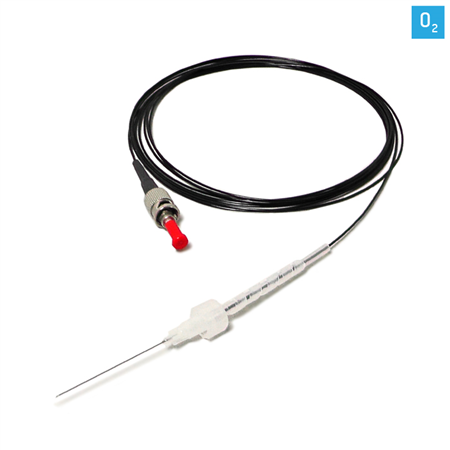

Needle-Type Oxygen Microsensor with Fixed Sensor Tip NFSG-PSt8 (Minimum Order Quantity: 3)

  • High spatial resolution (< 140 μm)
  • High temporal resolution (t90 < 3 sec.)
  • No consumption of oxygen
  • Signal independent of flow velocity
  • Measurement in headspace or smallest volumes

This oxygen sensor is specially designed for headspace measurement in packaging or other applications where gaseous oxygen measurements in small compartments have to be conducted. The tiny sensor tip is fixed inside a steel needle, so it does not protrude the needle tip. Secured inside the needle the sensor can be pierced through material and oxygen traces inside the headspace can be determined within seconds. The NFSG-PSt8 has a measurement range of 0 – 10 % oxygen, with a detection limit of 0.007 % O2.

Specification

NFSG: needle type housing with fixed oxygen microsensor (measurement in gas)
PSt8-02: trace oxygen sensitive coating 0-10% oxygen
L2.5: length of optical fiber is 2.5 meter
TF: flat broken glass fiber with a diameter of 140 µm
NS40/0.8: stainless needle with 40 mm length and 0.8 mm outer diameter
OIW: Optical isolation white


Choose Quantity
NTH-PSt8-02-L2.5-TF-NS40/0.8-OIW

NTH-PSt8-02-L2.5-TF-NS40/0.8-OIW

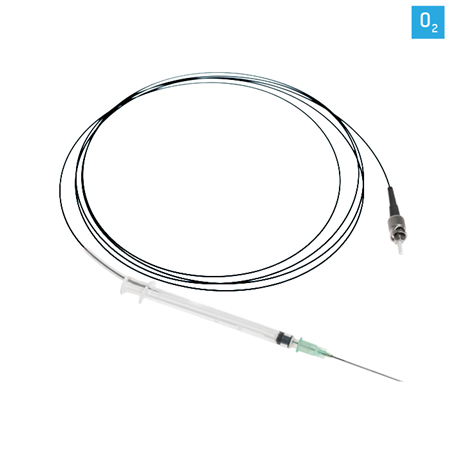

Needle-Type Oxygen Microsensor NTH-PSt8 (Minimum Order Quantity: 3)

  • High spatial resolution (< 230 μm)
  • High temporal resolution (t90 < 3 sec.)
  • No consumption of oxygen
  • Signal independent of flow velocity
  • Measures liquids as well as in gas phase

The end of a glass fiber is coated with oxygen-sensitive material with a measurement range of 0 – 10 % oxygen. This tip (230 µm) is protected inside a stainless steel needle and can be extended for measurements. As long as the sensor tip is retracted and protected by the needle the microsensor can be pierced through septum rubber or any other harsh material. With its small tip size and fast response time (t90 < 3 s) this sensor is ideally suited for trace oxygen measurements in research and packaging applications.

Specification

NTH: needle type housing oxygen microsensor
PSt8-02: trace oxygen sensitive coating 0-10% oxygen
L2.5: length of optical fiber is 2.5 meter
TF: flat broken glass fiber with a diameter of 230 µm
NS40/0.8: mounted in a stainless needle with 40 mm length and 0.8 mm diameter
OIW: with a white optical  isolation


Choose Quantity
SP-PSt8-10-NAU-D5-YOP

SP-PSt8-10-NAU-D5-YOP

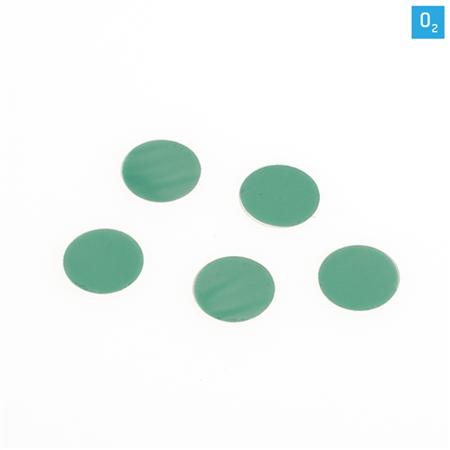

Oxygen Sensor Spot SP-PSt8-NAU (Minimum Order Quantity: 10)

  • Non-invasive measurements through the vessel wall
  • No consumption of oxygen
  • Signal independent of flow velocity
  • Measures oxygen in liquids as well as in gas phase

These oxygen sensors measure the partial pressure of both dissolved and gasseous oxygen. They are fixed to the inner surface of glass or transparent plastic containers and can then be read out from the outside – through the vessel wall. The trace oxygen sensors type PSt8 can be used for measurements in trace oxygen range of 0 – 10 % O2 and have a detection limit of 0.007 % O2. The SP-PSt8-NAU is not suitable for autoclaving.

Specification

SP: planar sensor spot
PSt8-10: trace oxygen sensitive coating 0-10% oxygen
NAU: stands CIP but does not stand autoclavation;
immobilized on 125 µm transparent polyester foil
D5: spot diameter is 5 mm
YOP: with additional optical isolation


Choose Quantity
SP-PSt8-10-YAU-D5-YOP

SP-PSt8-10-YAU-D5-YOP

Oxygen Sensor Spot SP-PSt8-YAU (Minimum Order Quantity: 5)

  • Non-invasive measurements through the vessel wall
  • No consumption of oxygen
  • Signal independent of flow velocity
  • Measures oxygen in liquids as well as in gas phase

These oxygen sensor spots are most versatile tools for precise oxygen monitoring in any transparent or semi-transparent vessel. The spots are attached to the inner container surface, and measurements are taken contactless from the outside – through the vessel wall. The SP-PSt8-YAU measure dissolved as well as gaseous O2. They have a measurement range from 0 – 10 % O2, with a detection limit of 0.007 % O2. The SP-PSt8-YAU can be autoclaved.

Specification

SP: planar sensor spot
PSt8-10: trace oxygen sensitive coating 0-10% oxygen
YAU: immobilized on 1 mm glass support
D5: spot diameter is 5 mm
YOP: with additional optical isolation
