TBR1025

TBR1025

One-Channel Free Radical Analyzer



Choose Quantity
  • Overview
  • Specifications
  • Accessories
  • Citations
  • Related Products

Overview

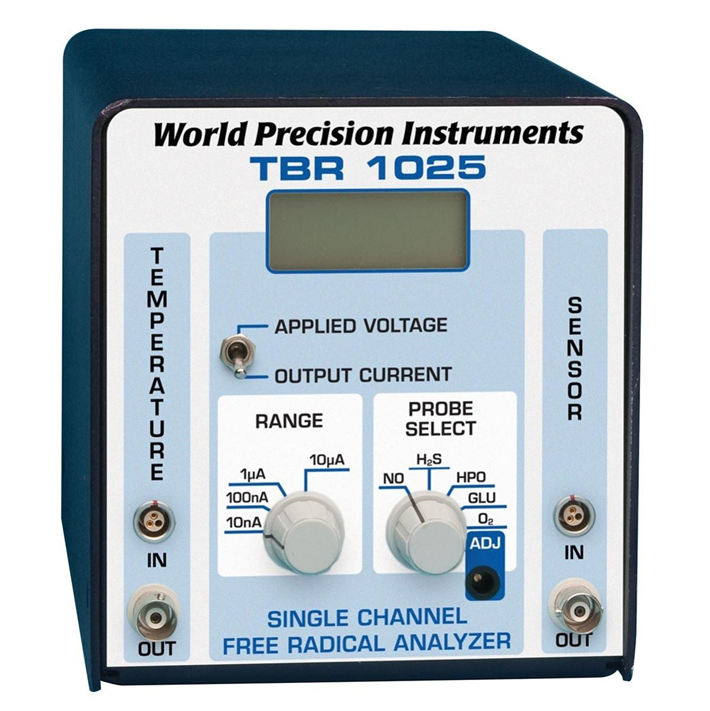

TBR1025 One-Channel Free Radical Analyzer

There are 1 images available to view - click to enlarge and scroll through the product gallery.

TBR Instruction Manual
/ Download as PDF

TBR Datasheet
/ Download as PDF

  • Real-time detection using electrochemical microsensors
  • Integrated system - includes sensors and start-up kit
  • Wide dynamic range for detection
  • Measure
    • Carbon monoxide from 10 nM to 10 µM
    • Nitric oxide from < 0.3 nM to 100 µM
    • Hydrogen peroxide < 10 nM to 100 mM
    • Hydrogen sulfide
    • Glucose
    • Oxygen from 0.1% to 100%

Details

A single channel free radical analyzer includes a sensor of your choice and a start-up kit. To complete the system add a Lab-Trax data logger.

Real-time detection and measurement of a variety of redox-reactive species is fast and easy using the electrochemical (amperometric) detection principle employed in the TBR1025. Simply plug a sensor into the input channel on the front panel and select the current range. Poise voltage can be selected from a range of values tuned for optimal response from WPI sensors. An independent output for real-time monitoring of temperature is also included.

The analyzer utiliszes PC-based data acqusition via our Lab-Trax interface; data traces are displayed and recorded in real-time. The LabScribe software (formerly called Data-Trax) comes pre-configured for single or multiple electrode recording;  filters, gains, and smoothing are all set for optimal results. Data can be viewed making adjustments to smoothing and filter settings without affecting the original stored raw data. Electrode calibration from multiple concentration readings can be input into the software's Multipoint Calibration utility quickly provides a plot and slope calculation for electrode sensitivity determination.

  • Current measurement range from 300 fA to 10 µA (four ranges) permits wide dynamic range for detection
  • Wide bandwidth allows recording of fast events
  • Total galvanic isolation of channel inputs
  • Pre-adjusted selectable Poise voltage values for each type of WPI free radical sensor, as well as an adjustable voltage settings
  • Front panel mounted digital panel meters to monitor poise voltage and sensor current output on each channel simultaneously
  • Front panel BNC output connectors providing a low impedance voltage output signal, suitable for direct connection to any standard data recording device
  • Front panel input connectors designed to provide easy connection to the entire line of WPI free radical sensors

What's Included

(1) TBR1025 Free Radical Analyzer
(1) Sensor of your choice and sensor start-up kit, if applicable
(1) ISO-TEMP-2 Temperature Sensor
(2) 2851 6' BNC Cable
(1) 91210 Assembly Test Resistor
(1) 91580 Microsensor Cable, if applicable
(1) Potentiometer Adjustment Tool

The Free Radical Analyzer will require a datalogging system (not included). We recommend LAB-TRAX-4

Support Videos

When using a TBR Free Radical Analyzer, accurate measurements of an analyte requires an accurate calibration. The calibration of nitric oxide, hydrogen peroxide and hydrogen sulfide sensors is similar. WPI oxygen and glucose sensors require different methods which will not be discussed here.

The video below shows how to calibrate your oxygen sensor (6 minutes).

Specifications

Power Power 100 ~ 240 VAC, 50-60 Hz,
Operating Temperature (ambient) 0 - 50°C (32 - 122°F)
Operating Humidity (ambient) 15 - 70% RH non-condensing
Warm up Time
Dimensions 135 X 419 X 217 mm (5.25" X 16.5" X 8.16")
Weight 1.35 kg (3 lb)
Display Functions 18 mm (0.7") LCD readout, 4.5 digit Polarization Voltage (mV) Current input (nA, µA)
Controls Power (on/off) Current Input Range Polarization Voltage
Analog Output Range +/- 10 V (continuous)
Analog Output Impedance 10 kohm
Channel to Channel Isolation >10 Gohm
Channel to Output Isolation >10 Gohm
Power Supply to AC Line Isolation >100 Mohm
Analog Output Drift
Temperature Input: Number of Channels 1
Temperature Input: Sensing Element Platinum RTD, 1000 Ohm
Temperature Input: Range 0-100°C
Temperature Input: Accuracy +/- 1°C
Temperature Input: Resolution 0.1°C
Temperature Input: Analog Output 31.25 mV/°C (continuous)
Amperometric Input: Number of Amperometric Channels 1
Amperometric Input: Signal Bandwidth 0-3 Hz
Amperometric Input: Polarization Voltage (selectable via rotary switch) Nitric Oxide 865 mV
Amperometric Input: Polarization Voltage (selectable via rotary switch) Hydrogen Sulfide 150mV
Amperometric Input: Polarization Voltage (selectable via rotary switch) Hydrogen Peroxide 450 mV
Amperometric Input: Polarization Voltage (selectable via rotary switch) Glucose 600 mV
Amperometric Input: Polarization Voltage (selectable via rotary switch) Oxygen 700 mV
Amperometric Input: Polarization Voltage (selectable via rotary switch) ADJ (user adjustable) +/- 2500 mV
Polarization Voltage Accuracy +/- 5 mV
Polarization Voltage Display Resolution +/- 1mV
Current measurement Performance: Range +/- 10 Na, +/- 100 nA, +/- 1 µA, +/- 10 µA
Current measurement Performance: Analog Output 1 mV / 1 pA, 1 mV / 10pA, 1 mV / 100pA, 1 mV / 1 µA
Current measurement Performance: Noise @ 3Hz * < 1 pA, < 7 pA, < 70 pA, < 700 pA
Current measurement Performance: Noise @ 0.3 Hz * < 0.3 pA, < 3 pA, < 30 pA, < 300 pA

Notes:

*Instrument performance is measured as the (max-min) over 20 seconds period with open input. Typical values are given at 3 Hz and 0.3 Hz bandwidth.  Typical sensor performance with TBR4100: ISO-NOPF100 noise 0.2 nM NO (

**Sensor noise is measured as the (max-min) over a 20 seconds period with the sensor immersed in 0.1 M CuCl2 solution.
