Mechanical Stimulation - Bioreactor Systems

Mechanical stimulation bioreactor systems for tissue and cell culture.

MechanoCulture Data Sheet

MechanoCulture platforms are mechanical stimulation bioreactor systems designed for long-duration experiments in culture. These instruments help researchers apply repeatable loading profiles while tissues, cells, and engineered constructs remain in sterile, physiologic environments. If you are evaluating a tissue bioreactor for mechanobiology studies or building workflows for cell culture mechanical stimulation in an incubator.

Each MechanoCulture platform is a bioreactor built around a simple goal: to deliver controlled mechanical inputs in culture with repeatable sterile workflows. Compared to many general-purpose tissue bioreactor designs, these systems emphasize programmable regimens, incubator compatibility, and data logging that supports stiffness tracking and cohort comparisons.

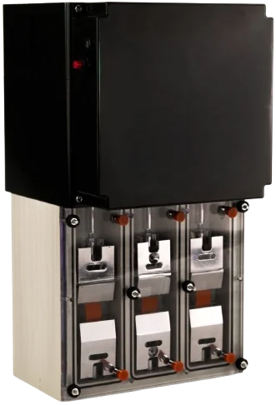

	MechanoCulture J1 Cyclic Strain Bioreactor   A cyclic strain bioreactor and 6-chamber cell stretching system for incubator-based substrate stretching and construct stretching. Independent per-well control supports parallel cell mechanical stimulation studies and long-duration conditioning workflows. Cyclic strain stimulation (tension) 6 independent chambers Per-well actuator and load cell Incubator-compatible with fluid cooling 25 mm travel, up to 2 Hz Onboard data logging (force + displacement)

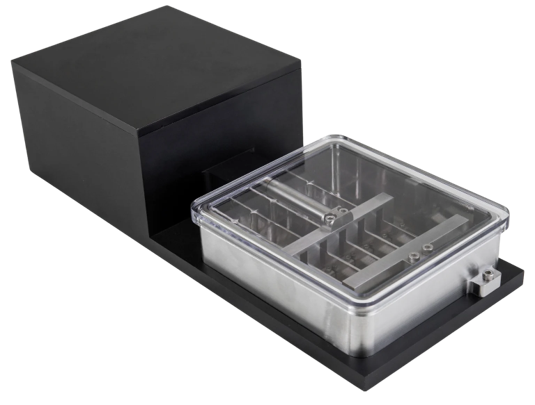

	MechanoCulture T6 Tension Stimulation System   A tissue engineering bioreactor for higher-force uniaxial stretch stimulation of up to six specimens, using clamp-based gripping for stable long-duration regimens. The MCT6 is commonly selected as a tissue bioreactor when constructs are larger or require more robust mounting. Uniaxial tension stretch conditioning in culture Up to 6 specimens in parallel High force tension stimulation (up to 200 N) Grip separation up to 80 mm PC-independent incubator operation Autoclavable culture-contacting components

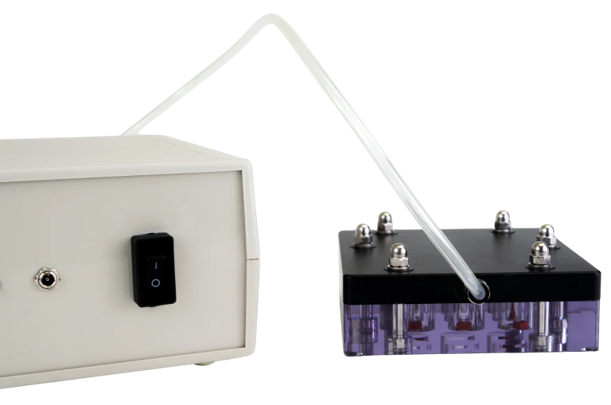

	MechanoCulture TR Hydrostatic Pressure Stimulation System   A hydrostatic pressure stimulation system that applies pressure through media using sealed well workflows. The MCTR is designed for hydrostatic pressure stimulation studies where uniform pressure dosing, sterility, and parallel cohorts are priorities. Cyclic hydrostatic compression up to 0.5 Hz 9 individual wells Up to 500 kPa hydrostatic pressure stimulation Sterile sealed well plate design PC-independent incubator operation Autoclavable culture-contacting components

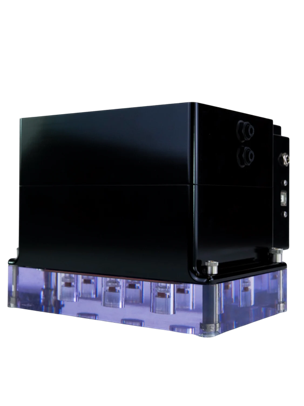

	MechanoCulture TX Compression Stimulation Bioreactor   A compression stimulation bioreactor for incubator-based uniaxial cyclic compression of 3D specimens in six independent wells. The MCTX supports long-duration cell mechanical stimulation studies and logs force and displacement for stiffness tracking across culture time. Uniaxial compression stimulation during culture 6 independent wells Cyclic compression stimulation up to 2 Hz Max displacement 2 mm Load cell options (10–100 N) with stiffness tracking Incubator-ready with sterile culture barrier

How to Choose A Mechanical Stimulation Bioreactor

The best mechanical stimulation bioreactor choice depends on stimulus type, specimen format, and how you want to structure cohorts. Use the guide below to match your study design to the MechanoCulture platform that best fits.

Choose a cyclic strain bioreactor for uniaxial stretch stimulation

Select the MCJ1 or MCT6 when you need uniaxial stretch regimens such as sinusoidal cyclic strain, intermittent dosing, or multi-phase conditioning

• The MCJ1 is the preferred cyclic strain bioreactor when you want per-well control for substrate stretching and smaller constructs, with stiffness tracking
• The MCT6 is a strong fit for higher-force tension stimulation with clamp-based mounting without force control per-well or stiffness tracking

Choose a compression stimulation bioreactor for contact compression

Select the MCTX when uniaxial contact compression is the primary stimulus

• The MCTX is a dedicated compression stimulation bioreactor for cyclic compression studies and long-duration conditioning, with per-well control and stiffness tracking

Choose hydrostatic pressure stimulation for pressure dosing through media

Select the MCTR when you want pressure as the stimulus, applied through media rather than through direct contact compression

• The MCTR supports hydrostatic pressure stimulation regimens in sealed wells for parallel cohorts and repeatable dosing profiles

---
