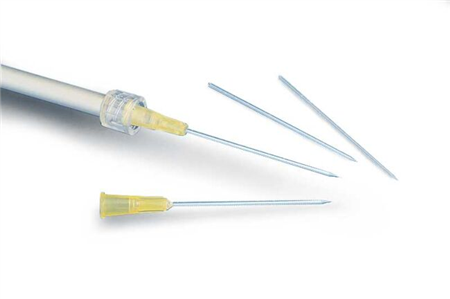

Tip Pre-Pulled Glass Capillaries

Tip Pre-Pulled Glass Capillaries

Calibrated micropipettes eliminate the cost and trouble of making your own micropipettes


Variety of Pre-pulled Micropipettes Available

Eliminate the cost and trouble of making your own micropipettes — WPI can quickly supply your need for consistently sized pre-pulled glass micropipettes for injection of dyes or proteins into cells, oocytes and for many other biomedical laboratory applications. Tip diameters (ID) range from 0.1 to 10 micrometers. Micropipettes are available as plain shank or with luer fittings.

Applications

    • CCIT (Closed Container Integrity Testing)
    • Injection of dyes or proteins into cells, oocytes or other biomedical laboratory applications

WPI can quickly supply your need for consistently sized, pre-pulled, glass, calibrated micropipettes. Tip diameters (ID) range from 0.1 to 10 µm. Silanized Tips (Luer Shank) are available. Silanization waterproofs the glass to retard water when inserting into cell. This will not let the outside fluid run down the glass pipettes and get inside so easily.These glass needles are fabricated from Schott Duran borosilicate glass.

  • Every glass pipette individually tested and inspected
  • Schott Duran borosilicate glass pipettes
  • 0.5 µm and smaller ID micropipettes include internal glass fiber for easy filling
  • Tip inner diameter tolerance ±20%
  • Short taper yields high strength
  • Nominal length ≈ 50 mm
  • OD:ID = 1.33:1
  • Vacuum packed
  • Luer fitting
  • Glass Outside Diameter: 1.0mm thin wall
  • MicroTips with an ID smaller than 1µm have a filament
  • 10 per package



Certificate of Compliance

A Certificate of Compliance is available for these MicroTips. Please request one when placing your order.



Models Available

With Luer Connector

Order code Tip ID Glass OD Filament Fire Polish
TIP01TW1F-L 0.1µm 1.0mm Thin wall Yes --
TIP02TW1F-L 0.2 µm 1.0mm Thin wall Yes --
TIP05TW1F-L 0.5 µm 1.0mm Thin wall Yes --
TIP1TW1-L 1 µm 1.0mm Thin wall No --
TIP2TW1-L 2 µm 1.0mm Thin wall No  --
TIP5TW1-L 5 µm 1.0mm Thin wall No --
TIP10TW1-L 10 µm 1.0mm Thin wall No --
TIP30TW1-L 30 µm    1.0mm Thin wall No --



Without Luer connector

Order code Tip ID Glass OD Filament Fire Polish
TIP01TW1F 0.1µm 1.0mm Thin wall Yes No
TIP02TW1F 0.2 µm 1.0mm Thin wall Yes No
TIP03TW1F 0.3 µm 1.0mm Thin wall Yes  No
TIP04TW1F 0.4 µm 1.0mm Thin wall  Yes No
TIP05TW1F 0.5 µm 1.0mm Thin wall Yes No
TIP1TW1 1 µm 1.0mm Thin wall No Yes
TIP2TW1 2 µm 1.0mm Thin wall No  Yes
TIP5TW1 5 µm 1.0mm Thin wall No Yes
TIP10TW1 10 µm 1.0mm Thin wall No Yes
TIP20TW1 20 µm 1.0mm Thin wall No Yes
TIP30TW1 30 µm 1.0mm Thin wall No Yes



Other options

Order code Tip ID Glass OD Filament Fire Polish
TIP10XV119 10 µm 1.14mm A203XV glass*  No Yes
TIP15LT  - 1.5mm No Yes
TIP15FLT  - 1.5mm Yes Yes



Specifications

CTE (20 °C; 300 °C)   3.3± 0.110-6/K
Transformation temperature Tg   525 ± 15 °C
Density   2.23 ± 0.02 g/cm3
Temperature at the viscosity 1013 dPa·s
107.6 dPa·s
104 dPa·s
560 ± 10°C
820 ± 10°C
1260 ± 20°C
Heat conductivity l at 100 °C
Specific heat CP
  1.2W/(m·K)
0.8J / (g·K)
Elasicity-modulus
Poisson-ratio μ
  64GPa
0.20GPa
Photoelasticity
Refractive index nd
  4.0·10-6 mm² / N
1.473mm² / N
Relative dielectric constant
tan d
at 1 MHz
and 25 °C
4.6 10-4
37 10-4
Tk 100 (DIN 52326)   250°C
Classes of chemical stability water
acid
alkaline solution
DIN ISO 719
DIN 12 116
DIN ISO 695

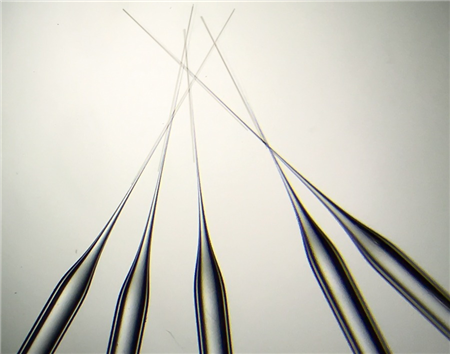

TIP15LT/TIP15FLT

TIP15LT/TIP15FLT

Pre-Pulled Glass Pipettes, Long taper

View details...


Choose Quantity

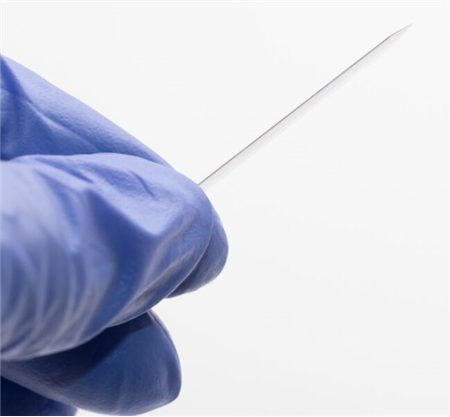

TIP10XV119

TIP10XV119

Micropipettes for Nanoliter Injector. 10 µm ID Tip, 1.14 mm Nanoliter2010 glass, w/o Filament (10)


Choose Quantity
TIP01TW1F

TIP01TW1F

Plain; Tip ID 0.1µm; 1.0mm OD Thin-Wall; Filament, Qty: 10. Pipettes are fabricated from Schott Duran borosilicate glass. Tip inner diameter tolerance +/- 20%. Short taper yields high strength. Nominal length approximately 50 mm. OD:ID ratio is 1.33:1. A Certificate of Compliance is available for these microtips, please request one when placing your order.


Choose Quantity
TIP01TW1F-L

TIP01TW1F-L

Luer; Tip ID 0.1 µm; 1.0mm OD Thin-Wall; Filament; Qty: 10. Pipettes are fabricated from Schott Duran borosilicate glass. Tip inner diameter tolerance +/- 20%. Short taper yields high strength. Nominal length approximately 50 mm. OD:ID ratio is 1.33:1. A Certificate of Compliance is available for these microtips, please request one when placing your order.


Choose Quantity
TIP02TW1F

TIP02TW1F

Plain; Tip ID 0.2µm; 1.0mm OD Thin-Wall; Filament, Qty: 10. Pipettes are fabricated from Schott Duran borosilicate glass. Tip inner diameter tolerance +/- 20%. Short taper yields high strength. Nominal length approximately 50 mm. OD:ID ratio is 1.33:1. A Certificate of Compliance is available for these microtips, please request one when placing your order.


Choose Quantity
TIP02TW1F-L

TIP02TW1F-L

Luer; Tip ID 0.2 µm; 1.0mm OD Thin-Wall; Filament; Qty: 10. Pipettes are fabricated from Schott Duran borosilicate glass. Tip inner diameter tolerance +/- 20%. Short taper yields high strength. Nominal length approximately 50 mm. OD:ID ratio is 1.33:1. A Certificate of Compliance is available for these microtips, please request one when placing your order.


Choose Quantity
TIP03TW1F

TIP03TW1F

Plain; Tip ID 0.3µm; 1.0mm OD Thin-Wall; Filament, Qty: 10. Pipettes are fabricated from Schott Duran borosilicate glass. Tip inner diameter tolerance +/- 20%. Short taper yields high strength. Nominal length approximately 50 mm. OD:ID ratio is 1.33:1. A Certificate of Compliance is available for these microtips, please request one when placing your order.


Choose Quantity
TIP04TW1F

TIP04TW1F

Plain; Tip ID 0.4µm; 1.0mm OD Thin-Wall; Filament, Qty: 10. Pipettes are fabricated from Schott Duran borosilicate glass. Tip inner diameter tolerance +/- 20%. Short taper yields high strength. Nominal length approximately 50 mm. OD:ID ratio is 1.33:1. A Certificate of Compliance is available for these microtips, please request one when placing your order.


Choose Quantity
TIP04TW1F-L

TIP04TW1F-L

Luer; Tip ID 0.4 µm; 1.0mm OD Thin-Wall; Filament; Qty: 10. Pipettes are fabricated from Schott Duran borosilicate glass. Tip inner diameter tolerance +/- 20%. Short taper yields high strength. Nominal length approximately 50 mm. OD:ID ratio is 1.33:1. A Certificate of Compliance is available for these microtips, please request one when placing your order.


Choose Quantity
TIP05TW1F

TIP05TW1F

Plain; Tip ID 0.5µm; 1.0mm OD Thin-Wall; Filament, Qty: 10. Pipettes are fabricated from Schott Duran borosilicate glass. Tip inner diameter tolerance +/- 20%. Short taper yields high strength. Nominal length approximately 50 mm. OD:ID ratio is 1.33:1. A Certificate of Compliance is available for these microtips, please request one when placing your order.


Choose Quantity
TIP05TW1F-L

TIP05TW1F-L

Luer; Tip ID 0.5 µm; 1.0mm OD Thin-Wall; Filament; Qty: 10. Pipettes are fabricated from Schott Duran borosilicate glass. Tip inner diameter tolerance +/- 20%. Short taper yields high strength. Nominal length approximately 50 mm. OD:ID ratio is 1.33:1. A Certificate of Compliance is available for these microtips, please request one when placing your order.


Choose Quantity
TIP1TW1

TIP1TW1

Plain; Tip ID 1 µm; 1.0mm OD Thin-Wall; Fire-Polished, Qty: 10. Pipettes are fabricated from Schott Duran borosilicate glass. Tip inner diameter tolerance +/- 20%. Short taper yields high strength. Nominal length approximately 50 mm. OD:ID ratio is 1.33:1. A Certificate of Compliance is available for these microtips, please request one when placing your order.


Choose Quantity
TIP1TW1-L

TIP1TW1-L

Luer; Tip ID 1 µm; 1.0mm OD Thin-Wall; Qty: 10. Pipettes are fabricated from Schott Duran borosilicate glass. Tip inner diameter tolerance +/- 20%. Short taper yields high strength. Nominal length approximately 50 mm. OD:ID ratio is 1.33:1. A Certificate of Compliance is available for these microtips, please request one when placing your order.


Choose Quantity
TIP2TW1

TIP2TW1

Plain; Tip ID 2 µm; 1.0mm OD Thin-Wall; Fire-Polished, Qty: 10. Pipettes are fabricated from Schott Duran borosilicate glass. Tip inner diameter tolerance +/- 20%. Short taper yields high strength. Nominal length approximately 50 mm. OD:ID ratio is 1.33:1. A Certificate of Compliance is available for these microtips, please request one when placing your order.


Choose Quantity
TIP2TW1-L

TIP2TW1-L

Luer; Tip ID 2 µm; 1.0mm OD Thin-Wall; Qty: 10. Pipettes are fabricated from Schott Duran borosilicate glass. Tip inner diameter tolerance +/- 20%. Short taper yields high strength. Nominal length approximately 50 mm. OD:ID ratio is 1.33:1. A Certificate of Compliance is available for these microtips, please request one when placing your order.


Choose Quantity
TIP5TW1

TIP5TW1

Plain; Tip ID 5 µm; 1.0mm OD Thin-Wall; Fire-Polished, Qty: 10. Pipettes are fabricated from Schott Duran borosilicate glass. Tip inner diameter tolerance +/- 20%. Short taper yields high strength. Nominal length approximately 50 mm. OD:ID ratio is 1.33:1. A Certificate of Compliance is available for these microtips, please request one when placing your order.


Choose Quantity
TIP5TW1-L

TIP5TW1-L

Luer; Tip ID 5 µm; 1.0mm OD Thin-Wall; Qty: 10. Pipettes are fabricated from Schott Duran borosilicate glass. Tip inner diameter tolerance +/- 20%. Short taper yields high strength. Nominal length approximately 50 mm. OD:ID ratio is 1.33:1. A Certificate of Compliance is available for these microtips, please request one when placing your order.


Choose Quantity
TIP5TW1LS01

TIP5TW1LS01

Luer/Silanized (1 inch long); Tip ID 5 µm; 1.0mm OD Thin-Wall; Qty: 10. Pipettes are fabricated from Schott Duran borosilicate glass. Tip inner diameter tolerance +/- 20%. Short taper yields high strength. Nominal length approximately 50 mm. OD:ID ratio is 1.33:1. A Certificate of Compliance is available for these microtips, please request one when placing your order.


Choose Quantity
TIP5TW1LS02

TIP5TW1LS02

Luer/Silanized (2 inch long); Tip ID 5 µm; 1.0mm OD Thin-Wall; Qty: 10. Pipettes are fabricated from Schott Duran borosilicate glass. Tip inner diameter tolerance +/- 20%. Short taper yields high strength. Nominal length approximately 50 mm. OD:ID ratio is 1.33:1. A Certificate of Compliance is available for these microtips, please request one when placing your order.

TIP10LT/TIP10FLT

TIP10LT/TIP10FLT

Pre-Pulled Glass Pipettes, Long taper

View details...


Choose Quantity
TIP10TW1

TIP10TW1

Plain; Tip ID 10 µm; 1.0mm OD Thin-Wall; Fire-Polished, Qty: 10. Pipettes are fabricated from Schott Duran borosilicate glass. Tip inner diameter tolerance +/- 20%. Short taper yields high strength. Nominal length approximately 50 mm. OD:ID ratio is 1.33:1. A Certificate of Compliance is available for these microtips, please request one when placing your order.


Choose Quantity
TIP10TW1-L

TIP10TW1-L

Luer; Tip ID 10 µm; 1.0mm OD Thin-Wall; Qty: 10. Pipettes are fabricated from Schott Duran borosilicate glass. Tip inner diameter tolerance +/- 20%. Short taper yields high strength. Nominal length approximately 50 mm. OD:ID ratio is 1.33:1. A Certificate of Compliance is available for these microtips, please request one when placing your order.


Choose Quantity
TIP10TW1LS01

TIP10TW1LS01

Luer/Silanized (1 inch long); Tip ID 10 µm; 1.0mm OD Thin-Wall; Qty: 10. Pipettes are fabricated from Schott Duran borosilicate glass. Tip inner diameter tolerance +/- 20%. Short taper yields high strength. Nominal length approximately 50 mm. OD:ID ratio is 1.33:1. A Certificate of Compliance is available for these microtips, please request one when placing your order.


Choose Quantity
TIP10TW1LS02

TIP10TW1LS02

Luer/Silanized (2 inch long); Tip ID 10 µm; 1.0mm OD Thin-Wall; Qty: 10. Pipettes are fabricated from Schott Duran borosilicate glass. Tip inner diameter tolerance +/- 20%. Short taper yields high strength. Nominal length approximately 50 mm. OD:ID ratio is 1.33:1. A Certificate of Compliance is available for these microtips, please request one when placing your order.


Choose Quantity
TIP20TW1

TIP20TW1

Plain; Tip ID 20 µm; 1.0mm OD Thin-Wall; Fire-Polished, Qty: 10. Pipettes are fabricated from Schott Duran borosilicate glass. Tip inner diameter tolerance +/- 20%. Short taper yields high strength. Nominal length approximately 50 mm. OD:ID ratio is 1.33:1. A Certificate of Compliance is available for these microtips, please request one when placing your order.


Choose Quantity
TIP30TW1

TIP30TW1

Plain; Tip ID 30 µm; 1.0mm OD Thin-Wall; Fire-Polished, Qty: 10. Pipettes are fabricated from Schott Duran borosilicate glass. Tip inner diameter tolerance +/- 20%. Short taper yields high strength. Nominal length approximately 50 mm. OD:ID ratio is 1.33:1. A Certificate of Compliance is available for these microtips, please request one when placing your order.


Choose Quantity
TIP30TW1-L

TIP30TW1-L

Luer; Tip ID 30 µm; 1.0mm OD Thin-Wall; Qty: 10. Pipettes are fabricated from Schott Duran borosilicate glass. Tip inner diameter tolerance +/- 20%. Short taper yields high strength. Nominal length approximately 50 mm. OD:ID ratio is 1.33:1. A Certificate of Compliance is available for these microtips, please request one when placing your order.


Choose Quantity
TIP30TW1LS01

TIP30TW1LS01

Luer/Silanized (1 inch long); Tip ID 30 µm; 1.0mm OD Thin-Wall; Qty: 10. Pipettes are fabricated from Schott Duran borosilicate glass. Tip inner diameter tolerance +/- 20%. Short taper yields high strength. Nominal length approximately 50 mm. OD:ID ratio is 1.33:1. A Certificate of Compliance is available for these microtips, please request one when placing your order.


Choose Quantity
TIP30TW1LS02

TIP30TW1LS02

Luer/Silanized (2 inch long); Tip ID 30 µm; 1.0mm OD Thin-Wall; Qty: 10. Pipettes are fabricated from Schott Duran borosilicate glass. Tip inner diameter tolerance +/- 20%. Short taper yields high strength. Nominal length approximately 50 mm. OD:ID ratio is 1.33:1. A Certificate of Compliance is available for these microtips, please request one when placing your order.
