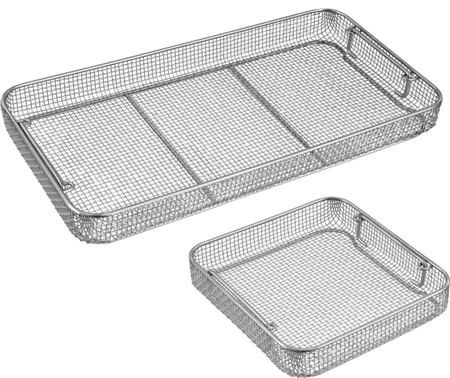

Wire Mesh Sterilisation Baskets, Drop Handles

• Sterilisation Baskets

Features

• Manufactured with stainless steel 304
• Electropolished
• Burr free to protect wraps and prevent injury
• Smooth rounded corners
• Handles are mounted on the inside and drop inside the basket for stacking
• Single frame, double frame and detention frame lids available

Benefits

• Meets all the requirements of automatic washing and sterilization for all types of instruments
• Top and bottom frame diameter: 5.0 mm
• Wire mesh with mesh openings of 4.5 mm, wire diameter of 1.0 mm
• Baskets are stackable (see image)

Image above shows the drop in handles (upper left), a closeup of the corner edge (upper right), the bottom stacking frame (lower left) and the stacked wire mesh baskets (lower right)

Applications

• Instrument cleaning and sterilization
• Instrument storage

Size Options for Sterilisation Baskets

WPI#	Basket Size		WPI #	Basket Size		WPI #	Basket Size
WP-4401	105 x 240 x 30 mm		WP-4416	250 x 250 x 30 mm		WP-4431	480 x 250 x 30 mm
WP-4402	105 x 240 x 50 mm		WP-4417	250 x 250 x 50 mm		WP-4432	480 x 250 x 50 mm
WP-4403	105 x 240 x 60 mm		WP-4418	250 x 250 x 60 mm		WP-4433	480 x 250 x 60 mm
WP-4404	105 x 240 x 70 mm		WP-4419	250 x 250 x 70 mm		WP-4434	480 x 250 x 70 mm
WP-4405	105 x 240 x 100 mm		WP-4420	250 x 250 x 100 mm		WP-4435	480 x 250 x 100 mm
WP-4406	240 x 240 x 30 mm		WP-4421	405 x 250 x 30 mm		WP-4436	480 x 480 x 30 mm
WP-4407	240 x 240 x 50 mm		WP-4422	405 x 250 x 50 mm		WP-4437	480 x 480 x 50 mm
WP-4408	240 x 240 x 60 mm		WP-4423	405 x 250 x 60 mm		WP-4438	480 x 480 x 60 mm
WP-4409	240 x 240 x 70 mm		WP-4424	405 x 250 x 70 mm		WP-4439	480 x 480 x 70 mm
WP-4410	240 x 240 x 100 mm		WP-4425	405 x 250 x 100 mm		WP-4440	480 x 480 x 100 mm
WP-4411	240 x 250 x 30 mm		WP-4426	480 x 240 x 30 mm		WP-4441	540 x 250 x 30 mm
WP-4412	240 x 250 x 50 mm		WP-4427	480 x 240 x 50 mm		WP-4442	540 x 250 x 50 mm
WP-4413	240 x 250 x 60 mm		WP-4428	480 x 240 x 60 mm		WP-4443	540 x 250 x 60 mm
WP-4414	240 x 250 x 70 mm		WP-4429	480 x 240 x 70 mm		WP-4444	540 x 250 x 70 mm
WP-4415	240 x 250 x 100 mm		WP-4430	480 x 240 x 100 mm		WP-4445	540 x 250 x 100 mm

---
