MT-1000/MT-1078

Overview

There are 1 images available to view - click to enlarge and scroll through the product gallery.

Features

• 25mm travel in X & Y
• 5 micron resolution
• Open design allows easy access to specimen and microscope
• Highly stable for experiments intolerant of drift
• Accomodates a variety of stage inserts
• Compatible with Nikon, Olympus, Zeiss and Leica upright and inverted microscopes

The MT-1000/MT-1078 is a microscope translator, fixed-stage and manipulator platform for moving optical pathway electrophysiology. Two general styles are available. In the classic design (MT-1000), an independent stand is used for each manipulator and a similar stand holds the tissue chamber. A new style (MT-1078) uses a single large, fixed stage that is used for multiple manipulators and for the sample as well.

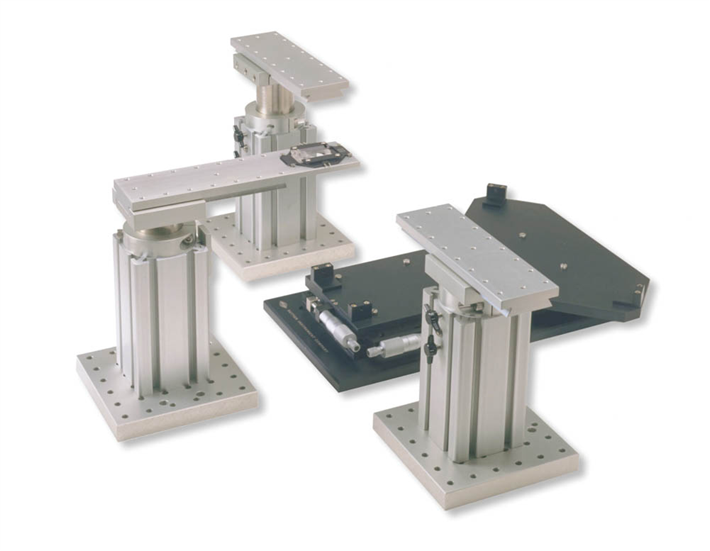

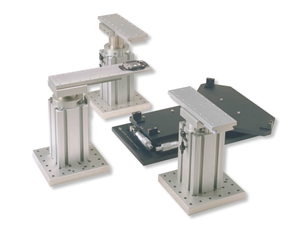

MT-1000: the classic modular design features free-standing columns that provide rock solid mounting for the tissue recording chamber (MT-150) and multiple micromanipulators (MT-75). The columns are positioned around a movable table that provides X-Y translation of the optical pathway in order to view multiple locations within the chamber at high resolution. Many prefer this methodology as it maximizes working room for adjusting the microscope and changing pipettes. Furthermore, the independent stand design minimizes movement-related cross talk between manipulators.

In the new MT-1078 translator system, the large fixed stage MT-78-FS is employed. In this design, it is easy to add additional manipulators and other devices to expand a setup as the manipulator/chamber support is a single large platform. Furthermore, an available magnetic stainless steel insert holds the chamber and allows the easy positioning of magnetically attached small devices nearby

At the core of both the MT-1000 and MT-1078 translator systems is the MT-500 X-Y translation table. It is designed to allow movement of a microscope’s optics with respect to the fixed stage(s). This methodology was developed by electrophysiologists recording from tissue slice preparations. The translator allows visualization and/or imaging of multiple tissue locations while maintaining multiple stable recordings from the preparation. Such a system is also useful for experiments on cells in culture where one wishes to monitor several cells not in the same field of view, e.g. recording from pre and post synaptic neurons in culture and/or imaging one cell while recording from or stimulating another.

Translators are available for the Olympus BX-51WI, Nikon FN-1, Zeiss Axioskop 2 FS and the Leica DMLFS as well as older fixed stage models.. Inverted microscope translators are available for the Olympus IX71.

Various different recording chambers can be accommodated in either the MT-150 chamber column or the insert in the MT-78-FS large stage. Sutter currently supports the Warner Instruments/Harvard Apparatus Series 20 chambers and the ALA 35mm chambers. Others can be accommodated. Dovetail slides for the MT-150 or inserts for the MT-78-FS are available with generic openings for users who wish to develop custom chambers.

NOTE: Not currently for sale to our customers in Germany and Italy - contact us for information

Specifications

TECHNICAL SPECIFICATIONS

Baseplate Dimensions
8 in x 15.25 in x 2.25 in | 200 mm x 375 mm x 55 mm

Maximum Travel
1 in | 25 mm

Resolution
0.0002 in | 5µm

Maximum Load
100 lbs | 50 kg

Weight
35 lbs | 16 kg

RoHS Compliant

COMPLETE SYSTEM w/ MT-75 MANIPULATOR STANDS

Includes the MT-500 manual X-Y translator, MT-150 chamber column, two MT-75 micromanipulator columns (without linear slide)

Catalog Number and Description

MT-1000/Y511
Complete system for the Olympus BX51WI

MT-1000/Y711
Complete system for the Olympus IX71

MT-1000/Z251
Complete system for the Zeiss Axioskop 2 FS

MT-1000/Z451
Complete system for the Zeiss Axio Examiner

MT-1000/N651
Complete system for the Nikon FN1

MT-1000/L301
Complete system for the Leica DMLFS

MT-1000/L351
Complete system for the Leica DM6000 FS

COMPLETE SYSTEM w/ MT-78 FIXED STAGE PLATFORM

Includes the MT-500 manual X-Y translator and MT-78-FS fixed stage platform

Catalog Number and Description

MT-1078/Y511
Complete system for the Olympus BX51WI

MT-1078/Y711
Complete system for the Olympus IX71

MT-1078/Z251
Complete system for the Zeiss Axioskop 2 FS

MT-1078/Z451
Complete system for the Zeiss Axio Examiner

MT-1078/N651
Complete system for the Nikon FN1

MT-1078/L301
Complete system for the Leica DMLFS

MT-1078/L351
Complete system for the Leica DM6000 FS

Accessories

Citations

Michel, S., & Marek, R. (2013). Mechanism of bilateral communication in the suprachiasmatic nucleus. European Journal of …. Retrieved from https://onlinelibrary.wiley.com/doi/10.1111/ejn.12109/full

Zhang, F., Gradinaru, V., & Adamantidis, A. (2010). Optogenetic interrogation of neural circuits: technology for probing mammalian brain structures. Nature Protocols. Retrieved from https://www.nature.com/nprot/journal/v5/n3/abs/nprot.2009.226.html
