NanoFil Syringe

NanoFil Syringe

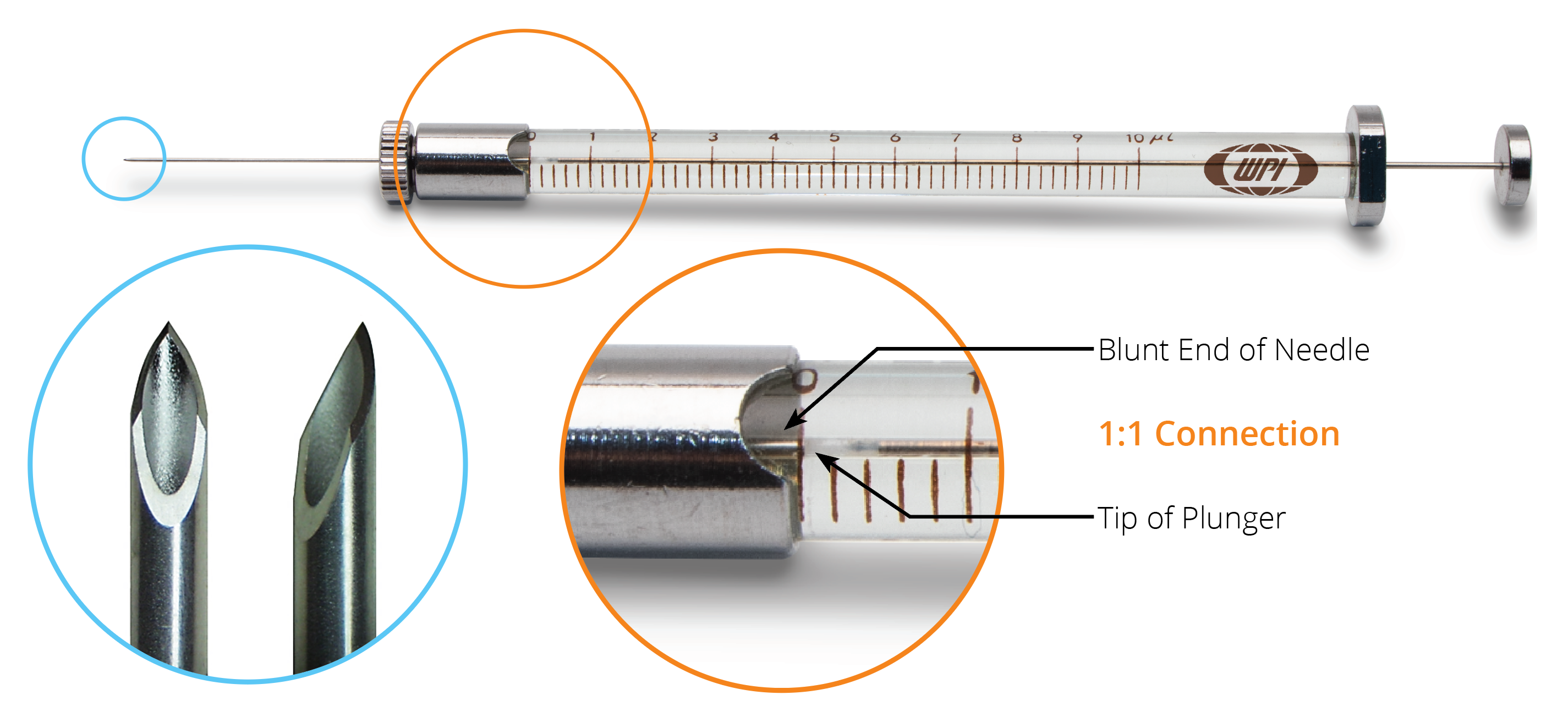

NanoFil™ is a specially designed microliter syringe range developed for improved microinjection in mice and other small animals.The interchangable needles advance directly into the syringe barrel, creating a 1:1 connection with the plunger — a truly gas-tight system built for low-volume sample control.


Features

  • NanoFil™ is the smallest dead volume microinjection system
  • Biologically compatible injection syringe
  • Various needle sizes available: 26-36G
  • Blunt or tri-beveled needles
  • Compatible with WPI's UMP3 microinjection system for precision injections

Benefits

  • Very low dead volume injections (0.5 µL or less)
  • Biologically compatible injection syringe (All the seals are constructed of inert materials for better chemical and biological compatibility)
  • Switching the syringe tip during an experiment is easy
  • Variety of injection tip options (needles and quartz tubing)
  • Unique tri-beveled needles for easier penetration

Applications

  • Animal research, viral targeting (e.g. AAV construct, DREADDS)
  • Capillary electrophoresis
  • Versatile research applications — Retinal Pigment Epithelial (RPE) and Intra Ocular (IO) injection kits

NanoFil Needles

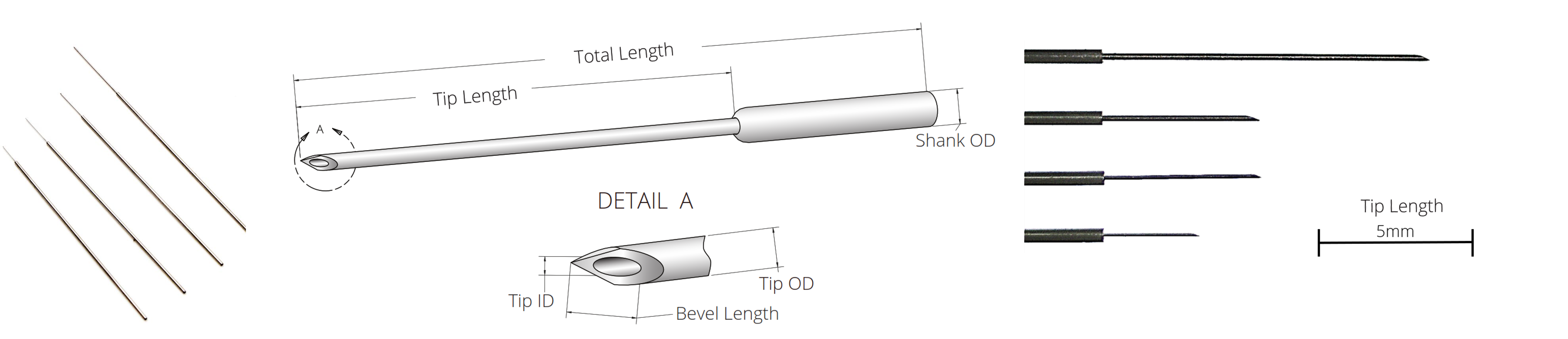

The replaceable needles used with the NanoFil are available with either blunt or beveled tip designs. The blunt tip is used for injection into soft tissue and when a uniform solution distribution is needed. The beveled style NanoFil needles are used for applications that involve the penetration through a tough tissue. Nanofil needles are offered in sizes of 26G to 36G (OD of 460 µm to 120 µm).

Generally, a smaller needle tip diameter is better to limit diffusion occurring at the needle tip. A 36G needle would be the best suitable needle to restrict the diffusion at the tip of the needle. Any possible error resulting from diffusion when using a 36G NanoFil needle is expected to be negligible. (The error would be in the sub-nanoliter range). Thus, the use of NanoFil needles can help you maintain better accuracy during the injection of microliter and sub-microliter volumes.

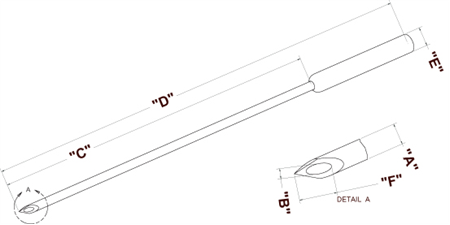

Tip Order Number Gauge Tip O.D. Tip I.D. Tip
Length
Total
Length
Shank
O.D.
Bevel
Length
Total Dead Volume
NF33BV 33 210 μm 115 μm 10 mm 40 mm 460 μm ≈348 μm 0.416 μL
NF34BV 34 185 μm 85 μm 5 mm 35 mm 460 μm ≈290 μm 0.199 μL
NF35BV 35 135 μm 55 μm 5 mm 35 mm 460 μm ≈204 μm 0.435 μL
NF36BV 36 110 μm 35 μm 3 mm 33 mm 460 μm ≈156 μm 0.340 μL
NF33BL 33 210 μm 115 μm 10 mm 40 mm 460 μm ≈0 0.416 μL
NF34BL 34 185 μm 85 μm 5 mm 35 mm 460 μm ≈0 0.199 μL
NF35BL 35 135 μm 55 μm 5 mm 35 mm 460 μm ≈0 0.435 μL
NF36BL 36 110 μm 35 μm 3 mm 33 mm 460 μm ≈0 0.340 μL
NF26BV-2 26 460 μm 110 μm 3 mm 40 mm 460 μm   0.380 μL

Tip Material: Stainless Steel

Using NanoFil™ in different configurations

Direct injection by hand

This is the simplest and most economical way to inject. Any of our tips can be inserted directly into the NanoFil™ microliter syringe. Even the SilFlex tubing can be inserted to switch from hand injection to the other methods listed below. This method is limited by the accuracy of plunger movement that is achievable with a human hand.

Installed on WPI’s UMP3 microsyringe pump

This will allow the user to achieve nanoliter resolution and reproducibility. For neural system injection, mount the UMP3 on a stereotaxic frame.

SilFlex tubing and holder

The needle is mounted on a small plastic holder that is connected to the NanoFil by a 35 cm length of flexible tubing. The NanoFil syringe is mounted on the UMP3 pump. This configuration allows the user to hold the animal in one hand and insert the needle with the other. When the needle reaches the desired location, activate the pump using the footswitch and the pre-programmed injection volume will be delivered. This configuration gives a nanoliter level of accuracy and reproducibility. It is best suited for applications such as the RPE and IO injection.



Ordering Information

NanoFil Syringe

NANOFIL

NanoFil 10 µL Syringe
Includes (1) NF26BV 26 gauge needle, (1) 1 cc plastic syringe and (2) MF28G Microfil 28g needles for back filling the syringe

NANOFIL-100

NanoFil 100 µL Syringe
Includes (1) NF26BV 26 gauge needle



NanoFil Needles

NF33BL 33G Blunt NanoFil Needle 1/pk
NF34BL 34G Blunt NanoFil Needle 1/pk
NF35BL 35G Blunt NanoFil Needle 1/pk
NF36BL 36G Blunt NanoFil Needle 1/pk
NF33-36BL Blunt NanoFil Needle Assortment Pack 4/pk
NF33BV 33G Beveled NanoFil Needle 1/pk
NF34BV 34G Beveled NanoFil Needle 1/pk
NF35BV 35G Beveled NanoFil Needle 1/pk
NF36BV 36G Beveled NanoFil Needle 1/pk
NF33-36BV Beveled NanoFil Needle Assortment Pack 4/pk



Optional NanoFil Accessories & Replacement Parts

NF26BV-2 Replacement 26G Beveled NanoFil Needle 2/pk
NFINHLD NanoFil Injection Holder
NFINHLD-G10 1.0 mm Glass Pipette Holder for NanoFil Syringe
SILFLEX-2 SilFlex Tubing 35 cm Long 2/pk (Dead Volume = 2.74 µL)
NFQ34-5 34G Flexible Quartz Tubing for filling, 7.5 cm long 5/pk

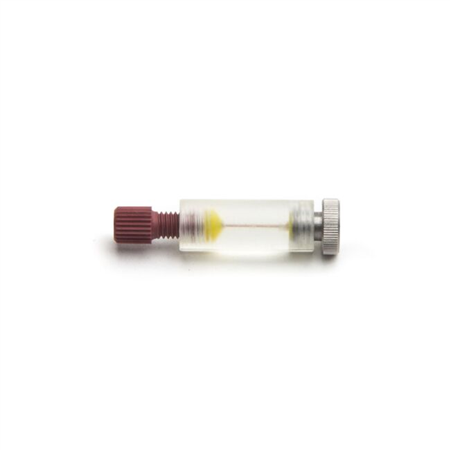

IO-KIT Intraocular Injection Kit
RPE-KIT Retinal Pigment Epithelium Kit




NANOFIL

NANOFIL

NanoFil 10 µL Syringe

View details...

NANOFIL-100

NANOFIL-100

NanoFil 100 µL Syringe

View details...

IO-KIT

IO-KIT

Intraocular Injection Kit

View details...

RPE-KIT

RPE-KIT

Retinal Pigment Epithelium Kit

View details...


Choose Quantity
NF33BL

NF33BL

33g Blunt NanoFil Needle 1/pk

  • Tip OD: 210 µm
  • Tip ID: 115 µm
  • Tip Length: 10.0 mm
  • Total Length: 40.0 mm
  • Tip Material: Stainless Steel
  • Package of 1

(Note this used to be sold in a pack of 2 against part number NF33BL-2)


Choose Quantity
NF34BL

NF34BL

34g Blunt NanoFil Needle 1/pk

  • Tip OD: 185 µm
  • Tip ID: 85 µm
  • Tip Length: 5.0 mm
  • Total Length: 35.0 mm
  • Tip Material: Stainless Steel
  • Package of 1

(Note this used to be sold in a pack of 2 against part number NF34BL-2)


Choose Quantity
NF35BL

NF35BL

35g Blunt NanoFil Needle 1/pk

  • Tip OD: 135 µm
  • Tip ID: 55 µm
  • Tip Length: 5.0 mm
  • Total Length: 35.0 mm
  • Tip Material: Stainless Steel
  • Package of 1

(Note this used to be sold in a pack of 2 against part number NF35BL-2)


Choose Quantity
NF36BL

NF36BL

36g Blunt NanoFil Needle 1/pk

  • Tip OD: 110 µm
  • Tip ID: 35 µm
  • Tip Length: 3.0 mm
  • Total Length: 33.0 mm
  • Tip Material: Stainless Steel
  • Package of 1

(Note this used to be sold in a pack of 2 against part number NF36BL-2)


Choose Quantity

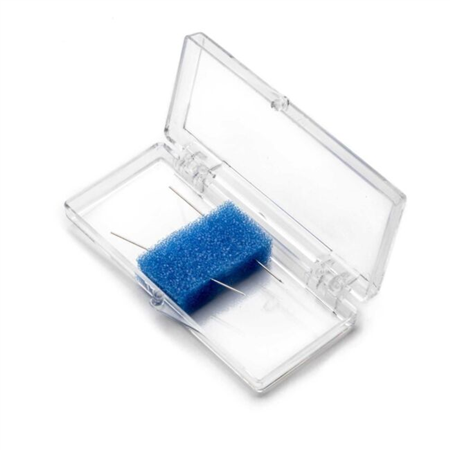

NF26BV-2

NF26BV-2

26g Beveled Replacement NanoFil Needle 2/pk

  • Tip OD: 460 µm
  • Tip ID: 110 µm
  • Total Length: 40.0 mm
  • Tip Material: Stainless Steel
  • Package of 2


Choose Quantity
NF33BV

NF33BV

33g Beveled NanoFil Needle 1/pk

  • Tip OD: 210 µm
  • Tip ID: 115 µm
  • Tip Length: 10.0 mm
  • Total Length: 40.0 mm
  • Tip Material: Stainless Steel
  • Package of 1

(Note this used to be sold in a pack of 2 against part number NF33BV-2)


Choose Quantity
NF34BV

NF34BV

34g Beveled NanoFil Needle 1/pk

  • Tip OD: 185 µm
  • Tip ID: 85 µm
  • Tip Length: 5.0 mm
  • Total Length: 35.0 mm
  • Tip Material: Stainless Steel
  • Package of 1

(Note this used to be sold in a pack of 2 against part number NF34BV-2)


Choose Quantity
NF35BV

NF35BV

35g Beveled NanoFil Needle 1/pk

  • Tip OD: 135 µm
  • Tip ID: 55 µm
  • Tip Length: 5.0 mm
  • Total Length: 35.0 mm
  • Tip Material: Stainless Steel
  • Package of 1

(Note this used to be sold in a pack of 2 against part number NF35BV-2)


Choose Quantity
NF36BV

NF36BV

36g Beveled NanoFil Needle 1/pk

  • Tip OD: 110 µm
  • Tip ID: 35 µm
  • Tip Length: 3.0 mm
  • Total Length: 33.0 mm
  • Tip Material: Stainless Steel
  • Package of 1

(Note this used to be sold in a pack of 2 against part number NF36BV-2)

SILFLEX-2

SILFLEX-2

SilFlex flexible Tubing for Nanofil, 35cm long 2/pk

View details...


Choose Quantity
NFINHLD

NFINHLD

NanoFil Injection Holder

  • For use with NANOFIL and SILFLEX for manual Injection

Use this holder for direct hand-held injections. The NFINHLD is 18 mm long and has a diameter of 9.6 mm (there are also two flat spots to 8.6 mm on the 0 and 180 degree axis). The cap is 8.1 mm diameter.


Choose Quantity

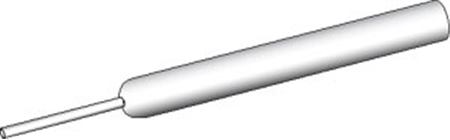

NF33-36BL

NF33-36BL

Blunt NanoFil Needle Assortment Pack 4/pk

  • Includes one each of 33, 34, 35, and 36 g blunt needles
  • Tip Material: Stainless Steel
  • Package of 4


Choose Quantity
NF33-36BV

NF33-36BV

Beveled NanoFil Needle Assortment Pack 4/pk

  • Includes one each of 33, 34, 35, and 36 g beveled needles
  • Tip Material: Stainless Steel
  • Package of 4


Choose Quantity
NFGSK-5

NFGSK-5

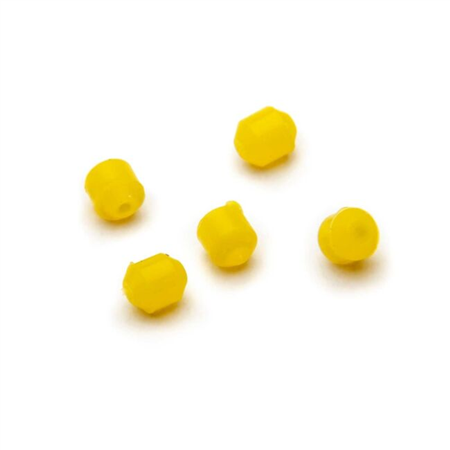

Spare Silicone Gasket for NanoFil & Holder 5/pk

  • Replacement gaskets for NanoFil syringes and Holders
  • Package of 5
  • The colours may vary

NFINHLD-G10

NFINHLD-G10

1.0 mm Glass Pipette Holder for NANOFIL Syringe

View details...


Choose Quantity

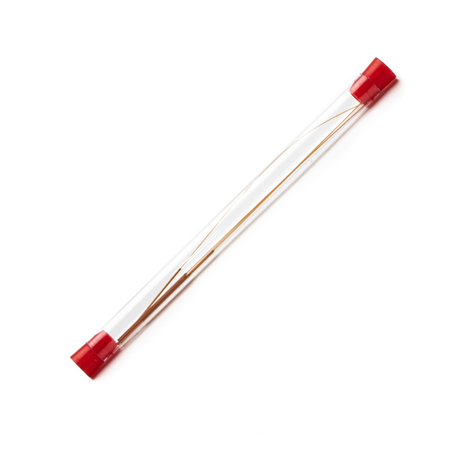

NFQ34-5

NFQ34-5

34g Flexible Quartz Tubing For Filling, 75.0 mm Long 5/pk

  • Tip OD: 160 µm
  • Tip ID: 100 µm
  • Tip Length: 55.0 mm
  • Total Length: 75.0 mm
  • Tip Material: Quartz
  • Package of 5
