Cuvettes

Cuvettes

WPI’s glass and synthetic quartz cuvettes are ideal for UV/VIS/NIR absorbance or fluorescence experiments. Synthetic quartz can be used in deep UV applications and is recommended for fluorescent applications, as it does not exhibit background fluorescence. Quartz cuvettes (absorbance, fluorescence and flow) are shipped individually packaged. These economic quartz are ideal for precision measurements because of their high quality materials used and their low manufacturing tolerances.

Technical Characteristics: Spectral Range (>80%): 200-2500 nm; Transmission Difference between different cuvettes: Less than 1% (Typical transmission curves of synthetic quartz cuvettes were measured empty, thickness 1.25 mm x 2, including surface reflections, measured with a TIDAS II against air as reference).




Choose Quantity
89337

89337

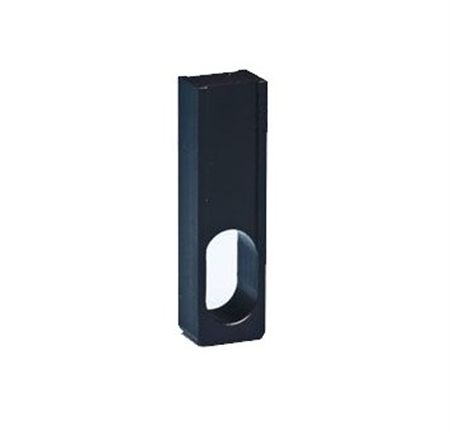

Cuvette spacer for 5 mm cuvettes

  • Spacer for 5 mm cuvettes
  • For use with CUV2011-1, CUV2023-1 and CUV2063-1


Choose Quantity
89341

89341

Cuvette spacer for 1mm cuvettes

  • Spacer for 1 mm cuvettes
  • For use with CUV2101-1


Choose Quantity
89342

89342

 Cuvette spacer for 2mm cuvettes

  • Spacer for 2 mm cuvettes
  • For use with CUV2102-1


Choose Quantity
CUV1022-10

CUV1022-10

Standard Rectangular Optical Glass Cuvette, 10mm path, 10ct

  • 350-2500nm range
  • V=3.5mL
  • Beam Width 10mm


Choose Quantity
CUV2011-1

CUV2011-1

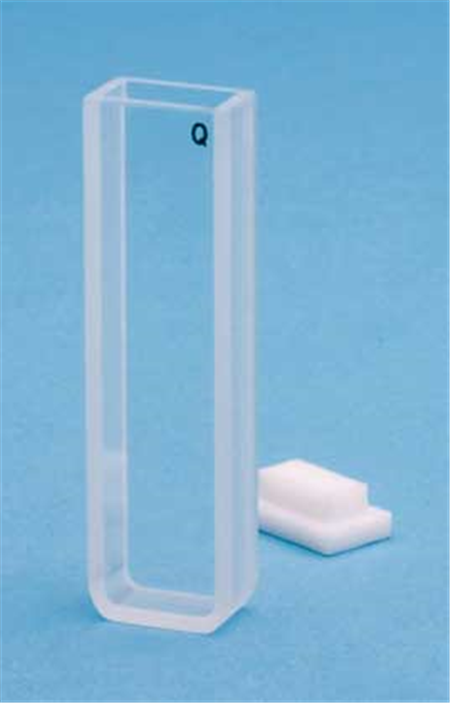

Standard Rectangular Quartz Cuvette, 5mm path, Style B

  • 7.5 x 12.5 x 45mm
  • V=1.7mL
  • Beam Width 10mm


Choose Quantity
CUV2012-1

CUV2012-1

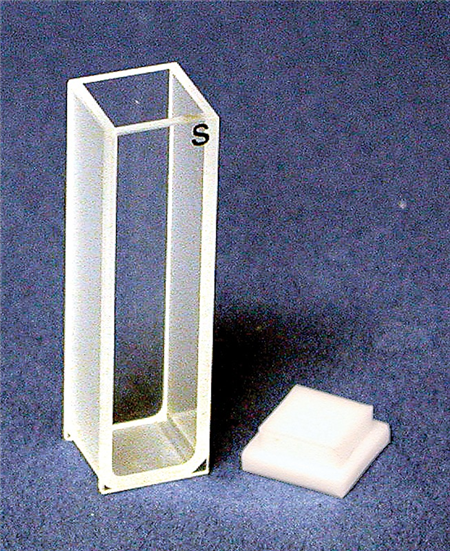

Standard Rectangular Quartz Cuvette, 10mm path, Style C

  • 12.5 x 12.5 x 45mm
  • V=3.5mL
  • Beam Width 10mm


Choose Quantity
CUV2025-1

CUV2025-1

Semi-micro, self-masking Quartz Cuvette, 20mm path, Style D

  • 22.5x12.5x45mm
  • V=2.8mL
  • Beam Width 4 mm


Choose Quantity
CUV2031-1

CUV2031-1

Semi-micro, self-masking Quartz Cuvette, 10mm path, Style D, V=1.4mL

  • 12.5 x 12.5 x 45mm
  • V=1.4mL
  • Beam Width 4mm


Choose Quantity
CUV2032-1

CUV2032-1

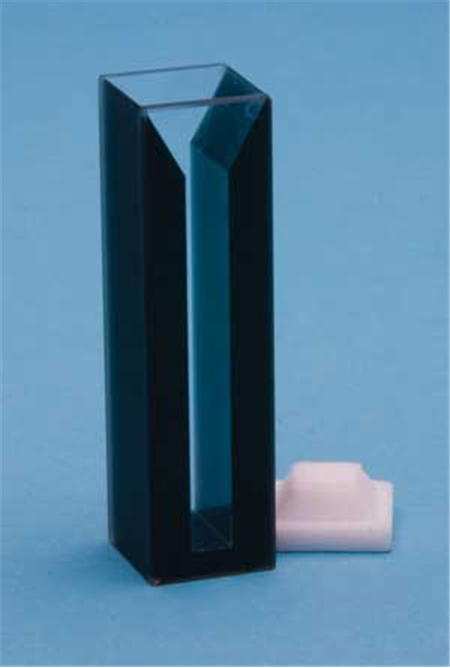

Semi-micro, self-masking Quartz Cuvette, 10mm path, Style D, V=1.0mL

  • 12.5 x 12.5 x 45mm
  • V=1.0mL
  • Beam Width 3mm


Choose Quantity
CUV2033-1

CUV2033-1

Semi-micro, self-masking Quartz Cuvette, 10mm path, Style D, V=0.7mL

  • 12.5 x 12.5 x 45mm
  • V=0.7mL
  • Beam Width 2mm


Choose Quantity
CUV2034-1

CUV2034-1

Semi-micro, self-masking Quartz Cuvette, 10mm path, Style D, V=0.35mL

  • 12.5 x 12.5 x 45 mm
  • V=0.35mL
  • Beam Width 1mm


Choose Quantity
CUV2051-1

CUV2051-1

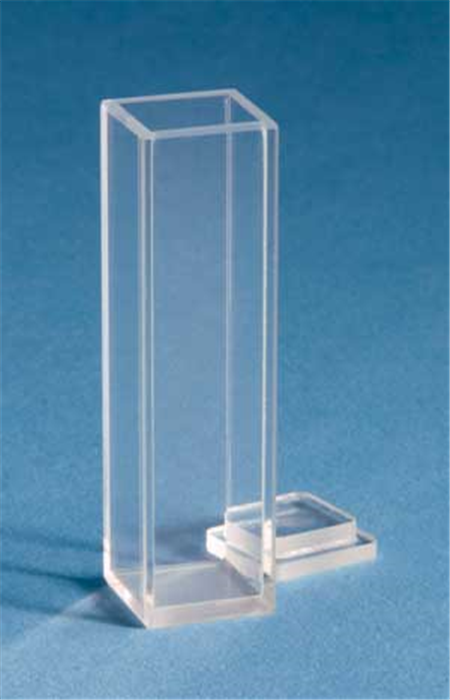

Standard Fluorometer Cell, 10mm, Style A, 3.5mL

  • 12.5 x 12.5 x 45mm
  • 3.5mL
  • Beam Width 10mm


Choose Quantity
CUV2052-1

CUV2052-1

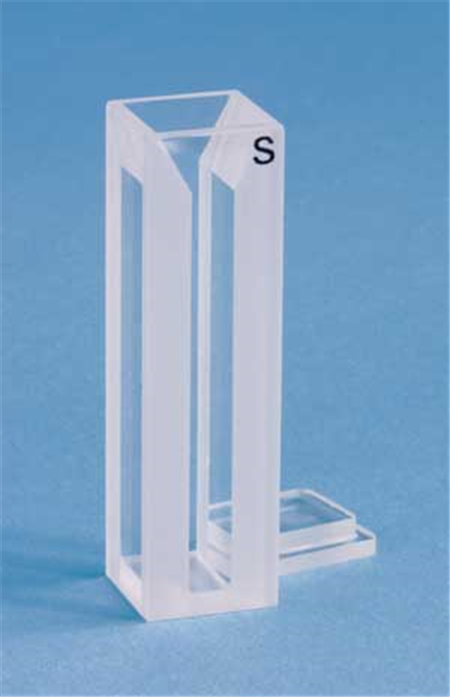

Standard Fluorometer Cell, 10mm, Style A, 1.4mL

  • 12.5 x 12.5 x 45mm
  • V=1.4mL
  • Beam Width 4mm


Choose Quantity
CUV2061-1

CUV2061-1

Flow-cell, Micro-volume, 10mm path, Style E

  • Z dim = 15
  • 0.07 mL Compartment V
  • Beam Width = 3mm


Choose Quantity

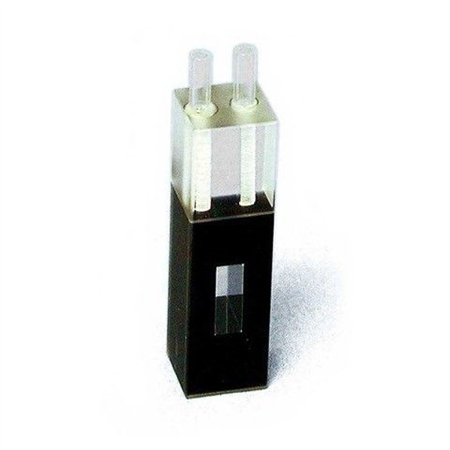

CUV2062-1

CUV2062-1

Flow-cell, Small Volume, 10mm path, Style F

  • Z dim=15
  • 0.48 mL Compartment V
  • Chamber dim: 4x10x11mm


Choose Quantity
CUV2063-1

CUV2063-1

Flow-cell, Small Volume, 5mm path, Style E

  • Z dim = 15
  • 0.035 mL
  • Beam Width = 3mm


Choose Quantity
CUV2065-1

CUV2065-1

Flow-cell, Small Volume, 20mm path, Style E

  • Z dim=15
  • 0.14 mL Compartment V
  • Beam Width 3mm


Choose Quantity
CUV2066-1

CUV2066-1

Flow-cell, Small Volume, 30mm path, Style E

  • Z dim=15
  • 0.21mL Compartment V
  • Beam Width 3mm


Choose Quantity

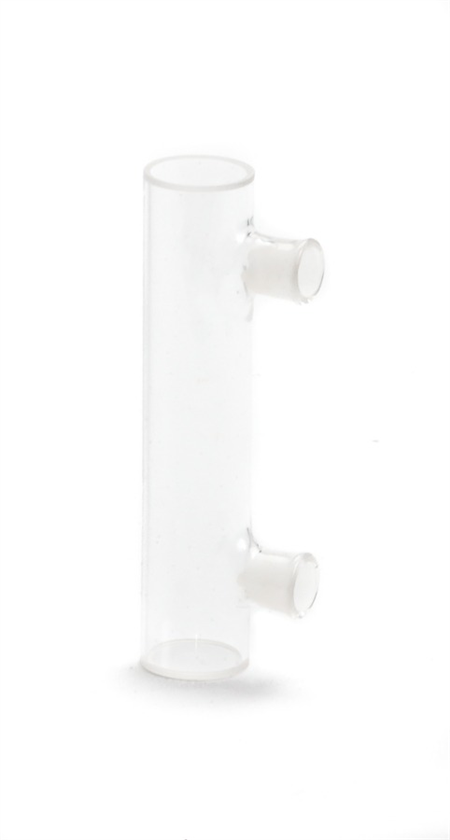

CUV2071-1

CUV2071-1

Cylindrical Quartz Cuvette, 100mm path, Style G

  • 102.5 L x 22mm OD
  • 28 mL V
  • Beam Width 19mm


Choose Quantity

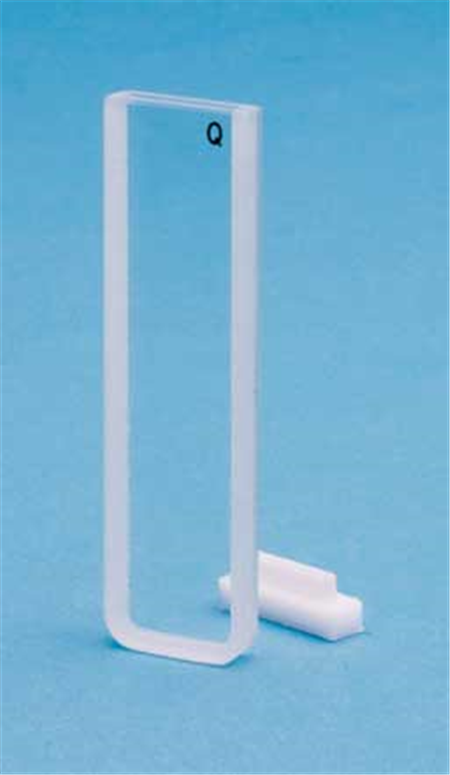

CUV2101-1

CUV2101-1

Standard Rectangular Quartz Cuvette, 1mm path, Style B

  • 3.5 x 12.5 x 45mm
  • V=0.35mL
  • Beam Width 10mm


Choose Quantity
CUV2102-1

CUV2102-1

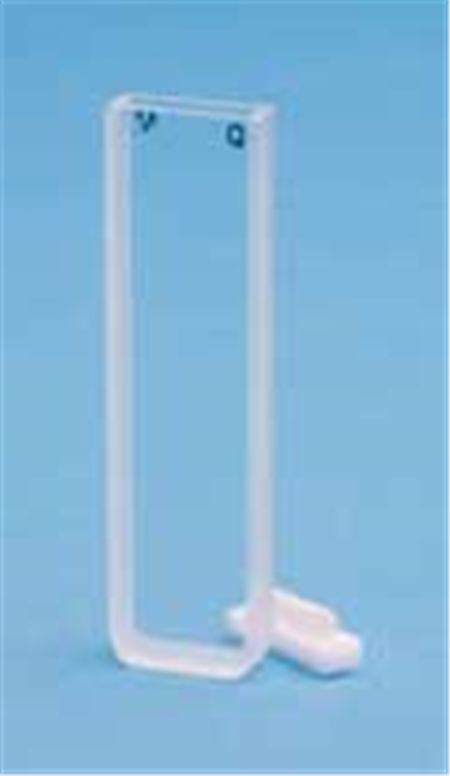

Standard Rectangular Quartz Cuvette, 2mm path, Style B

  • 4.5 x 12.5 x 45mm
  • V=0.7mL
  • Beam Width 10mm


Choose Quantity

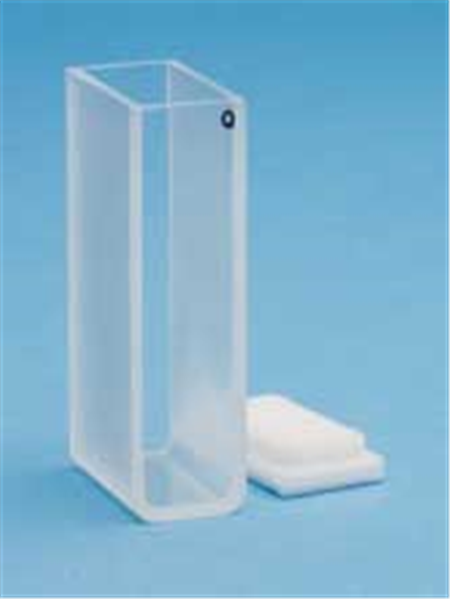

CUV2105-1

CUV2105-1

Standard Rectangular Quartz Cuvette, 20mm path, Style C

  • 22.5 x 12.5 x 45mm
  • V=7.0mL
  • Beam Width 10mm


Choose Quantity
CUV2106-1

CUV2106-1

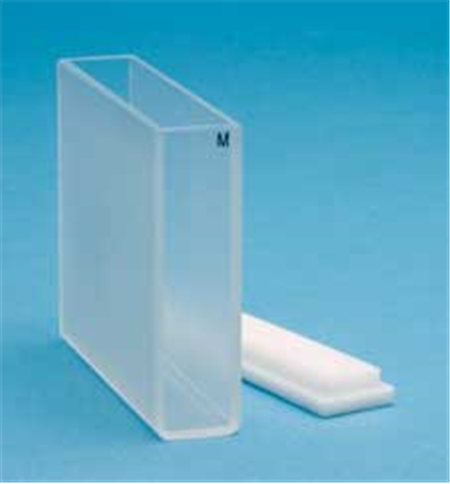

Standard Rectangular Quartz Cuvette, 30mm path, Style C

  • 32.5 x 12.5 x 45mm
  • V=10.5mL
  • Beam Width 10mm
