BioFlowCell
BioFlowCell is an innovative disposable flowcell designed with sterility assurance in mind for real time, in-line absorbance and turbidity analysis applications.
BioFlowCell Brocure
BioFlowCell is an innovative patent pending disposable flowcell sampling accessory thoughtfully designed with sterility assurance in mind for real time absorbance and turbidity analysis applications. These flowcells are ideal for bio-process upstream and downstream applications with small sample volume enabling in-situ continuous monitoring or on-the-spot analysis without sample taking or laborious offline analytics.

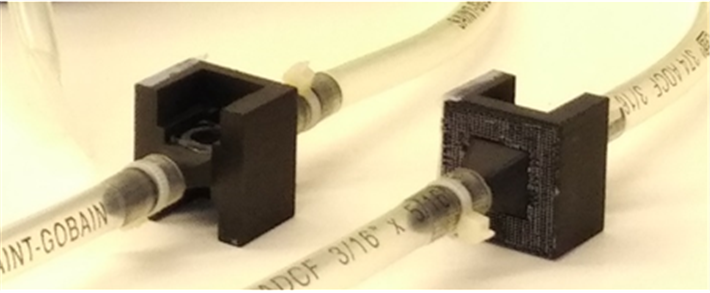

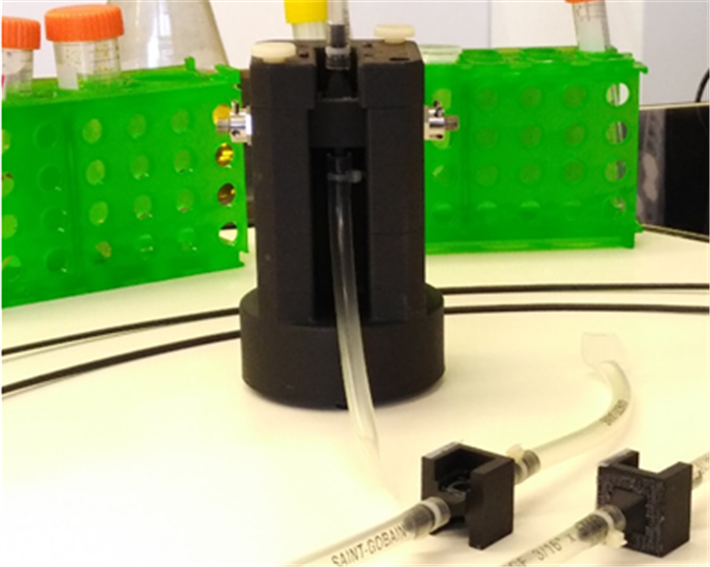

The BioFlowCell sample accessory couples to two SMA terminated fibers and is configurable to hold a variety of pre-sterilized disposable pathlength flow cells, which have been used in long-term measurements and biotechnological applications of 10 days and longer. This is ideal for solution providers in the bioprocess and bioresearch industry where there is a need for either continuous maintenance monitoring or discrete testing.
Features
- Disposable Flowcells for bio-process control
- Absorbance and turbidity
- 1, 3, 5, 10 & 20 mm pathlength
- UV, VIS and NIR
- Re-usable flowcell holder with SMA 905 fiber coupling
- Continuous flow and discrete sampling
- Gamma and EtOH sterilizable
- Pre-sterilized flowcells available on request
- Downstream and Upstream in Bypass
Benefits
- Simple Luer based fluid connection applicable with all types of bioreactors and liquid samplers
- # BIOF-S-Holder fits all single path flowcells
- No loss of biofluid as online measurement in bypass with return of volume to the bioreactor
- No need for time consuming offline analytics
- Larger inner diameter improves baseline stability of aqueous samples
- Connects directly to a Peristaltic pump (#MINISTAR)
- Integrates easily with leading providers of fiber optic spectrometers and light sources
Applications
- Upstream and downstream bioprocess
- Flow injection analysis
- DNA, RNA & protein analysis
- Water Quality Analysis
- Colorimetric nutrient and trace metal analysis
- Drug discovery
- Process control
