Differential Applications for Metal Electrodes

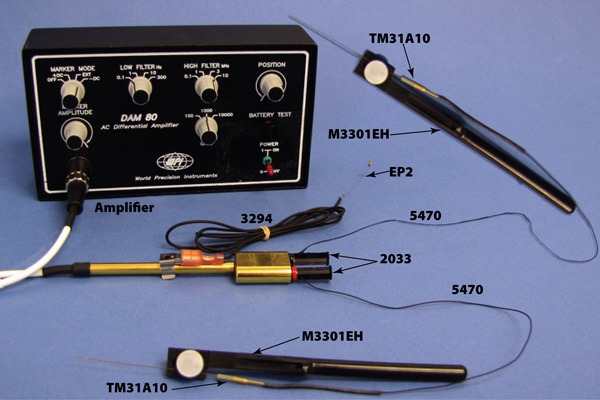

In this setup, metal electrodes are used with a differential amplifier. In this setup, a DAM80 is shown, but you could easily substitute a DAM50 (with 5489) or ISO-80.
5489
Optional Probe for DAM50
- Metal microelectrode adapter #5469 included with probe
TM31A10
Tungsten Electrode, 76 mm, 1.0 MOhm;1 µm Insulation; 0.127 mm shaft dia; 1.0 MOhm Nominal Impedance; 1 µm tip.Typical Use: Multi unit and single unit recording and microstimulation; Package of 10
EP2
2.0 mm dia. x 4 mm Ag/AgCl Electrode. Ag wire 50 mm long.
M3301EH
Replacement Electrode Holder, 14 cm x 7.2 mm diameter.
Replacement Electrode for Manual Manipulator Left/Hand M3301L and Right/Hand M3301R
3294
Ground Wire for DAM80 Probe, Clip with 3 ft (0.9m) cable, no plug
- Connector A: Clip
- Connector B: none
- Cable: 3 ft (0.9 m)
2033
Black Insulated Mini Banana Plug
- Mini banana plug connector (male)
- Wire held in place with an internal set screw
- Insulated
- Jack and plug are gold plated to resist corrosion and provide optimal electrical connectivity
- Rated for 5 A
- Black
5470
0.031" Jack, 28 ga. wire, 12" (pkg of 4)
- 0.031" Socket on a 12" lead wire
- 28 gauge Wire
- Package of 4
- For use with the DAM80P probe
