EZ-7000

Overview

Features & Benefits

• Compact and portable
• Easy to setup and use, simplifying the training of new staff and reducing the threat of human error
• Safe for surgical personnel, 90% below OSHA Isoflurane limit
• Inhalation anesthesia (quick induction, speedy recovery and minimal animal handling)
• Effective for neonates up to 1 kg animals

Applications

• Small animal surgery

Overview

The EZ-7000 Classic Anesthesia System has been used effectively for many years in hundreds of facilities. It has a user-friendly flow meter. The system offers five gas outlets that can supply a single induction chamber and four breather circuits simultaneously.

The system also features an oxygen flush button that purges the induction chamber with pure oxygen, thereby protecting personnel from exposure to anesthesia gas when opening the chamber. A handle on the vaporizer makes the unit easy to safely transport.

• Accommodates animals ranging in size from neonate mice to rabbits
• Five outputs supply anesthesia to the induction chamber and up to four breathers
• New flowmeter configuration is more user-friendly
• Incorporates two flowmeters:
          Flowmeter 1)  Controls flow into the vaporizer
          Flowmeter 2)  Controls flow into the induction chamber
• The second flowmeter allows users to run the chamber and breathers simultaneously
• Pushbutton oxygen flush purges induction chamber before removing animals
• Carry handle facilitates safe, easy transport of the unit

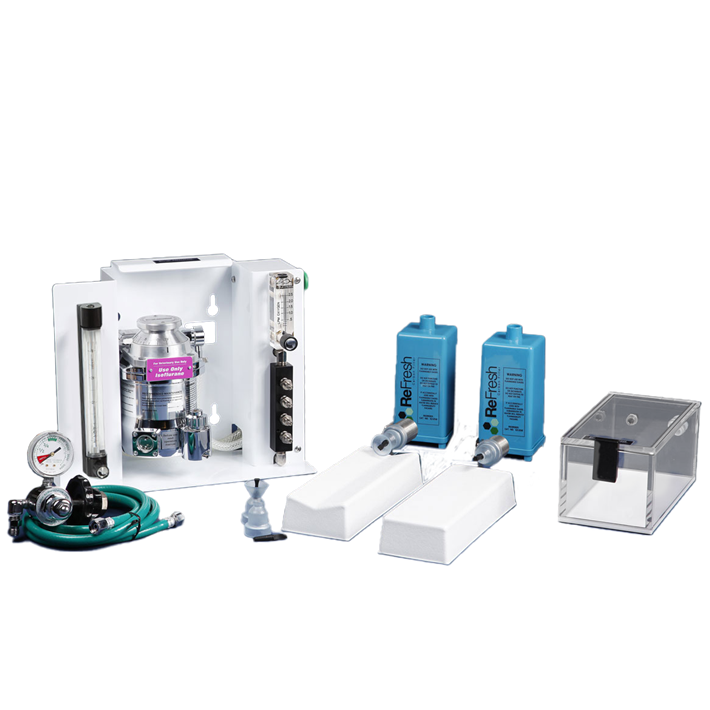

EZ-7000 System Comes Standard With:

• EZ-150C Classic Vaporizer Unit with a TEC 3 Isoflurane Key Filled Vaporizer; Separate flow controls for flow into the vaporizer and flow in to the induction chamber; Five output supply to an induction chamber and up to four breathers
• 2 x EZ-103A Microflex Mouse/Rat Non-Rebreathing Device is designed for neonates to animals weighing up to 500 g. It's low profile makes it an excellent choice for work under a microscope.
• 1 x EZ-178 Mouse/Rat Sure-Seal Induction Chamber (chamber dimensions 23 cm L x 10 cm W x 10 cm H)
• EZ-258 Charcoal Filters (case of 8 filters)
• Also includes mouse/rat nosecones, nosecone plugs, plastic surgery beds (2), charcoal filter stand, and all connecting tubes

Note: Oxygen and liquid isoflurane are not supplied. These are required to operate the system.

Contact us to modify the options Including:

• Alternate TEC 3 style vaporizers
• Oxygen Regulation
• Heated Surgical Beds
• Size of Induction Chamber
• Type and Number of Non-Rebreathing Device

Specifications

Anesthetic: Isoflurane 0 – 5%

Carrier Gas: Oxygen or Air

Flow Rate: 0 – 4 LPM

Number of Outputs: 5
