Anaesthesia

Anaesthesia

EZ Anesthesia is the system of choice for anesthetizing small animals where it comes with a variety of choices. Seclect from the following four systems:

The safety of laboratory personnel is of primary importance. So, WPI's anesthesia systems all come with a patented valve that mitigates the gas flow to the snugly-fitted nosecone. A highly sensitive valve regulated by the animal’s breathing works with the nosecone to ensure non-rebreathing efficiency and allow safe anesthesia for up to 12 hours.

Animals to be anesthetized are placed in the acrylic induction chamber and the system delivers a precisely blended mixture of oxygen and isoflurane. An activated charcoal air filter canister at the top of the chamber releases safe, filtered air back into the room. Optionally a water-heated cage warmer or warming plate is used to retain the animal body temperature while in the induction chamber. After the initial anesthetizing, the animal can be moved to the heated surgical water bed and positioned properly in the snugly fitted nosecone. A highly sensitive valve regulated by the animal’s breathing works with the nosecone to ensure non-rebreathing efficiency, and allow safe anesthesia for up to several hours. The breathing device also includes an air filter that releases safe, filtered air back into the room.



Isofluorane Anesthesia Masks

Isofluorane Anesthesia Masks

These rodent gas masks fits mice and rats of all sizes, and they are versatile for a...

View all...

Induction Chambers

Induction Chambers

Initial anesthesia is performed in the induction chamber before animals are moved to...

View all...

EZ-AD5000-F

EZ-AD5000-F

Digital Anesthesia System, with Flat bed

View details...

EZ-AD5000-V

EZ-AD5000-V

Digital Anesthesia System, with V-shaped bed

View details...

EZ-AF9000

EZ-AF9000

Auto Flow Anesthesia System - the autoflow anesthesia system offers highly efficient...

View details...

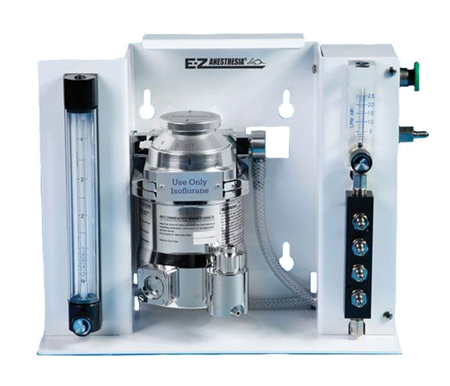

EZ-7000

EZ-7000

Classic Small Animal Anesthesia System incorporates a TEC 3 Isoflurane Key Fill...

View details...

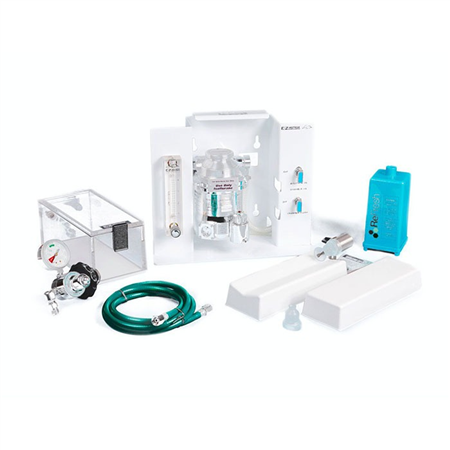

EZ-SA800

EZ-SA800

Single Animal Anesthesia System

View details...

E-27000

E-27000

Mobile Workstation, 22" x 21" top ( ca 58 x 53cm)

View details...

Nuvo5 Oxygen Concentrator

Nuvo5 Oxygen Concentrator

Affordable oxygen concentrator is efficient and easy to use with our anesthesia syst...

View details...


Choose Quantity

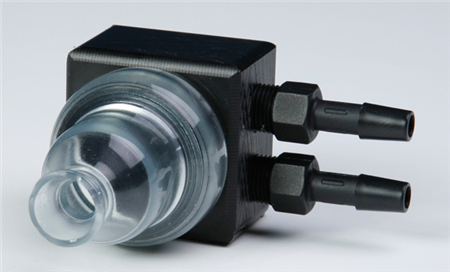

EZ-10901-1

EZ-10901-1

Integrated Imaging Single Breather Block

  • Accommodates animals weighing up to 500 grams.
  • Breather blocks can be permanently integrated into a wide range of imaging systems
  • Low profile, all plastic construction breathers utilize threaded mounting holes
  • Tight-fitting nosecone eliminates gas leakage and protects personnel from gas exposure
  • Threaded mount


Choose Quantity

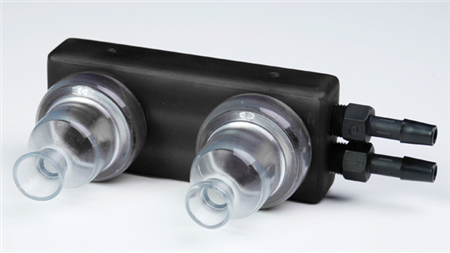

EZ-10901-2

EZ-10901-2

Integrated Imaging Double Breather Block is designed for use with MRI, X-ray, and other imaging equipment.

  • Accommodates animals weighing up to 500 grams.
  • Breather blocks can be permanently integrated into a wide range of imaging systems
  • Low profile, all plastic construction breathers utilize threaded mounting holes
  • Tight-fitting nosecone eliminates gas leakage and protects personnel from gas exposure


Choose Quantity

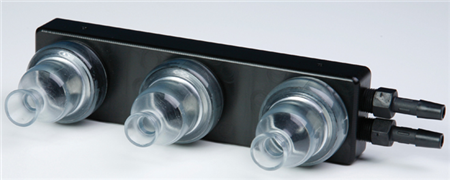

EZ-10901-3

EZ-10901-3

Integrated Imaging Triple Breather Block  is designed for use with MRI, X-ray, and other imaging equipment.

  • Accommodates animals weighing up to 500 grams.
  • Breather blocks can be permanently integrated into a wide range of imaging systems
  • Low profile, all plastic construction breathers utilize threaded mounting holes
  • Tight-fitting nosecone eliminates gas leakage and protects personnel from gas exposure
  • Threaded mount


Choose Quantity

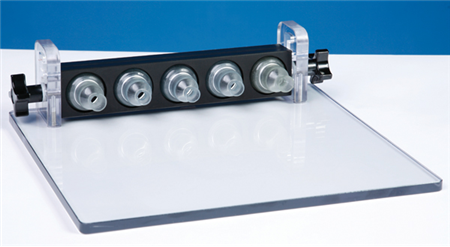

EZ-109

EZ-109

Multi-Animal Breather is designed for use with MRI, X-ray, and other imaging equipment.

  • For use with EZ Anesthesia Systems
  • Up to five mice or three rats
  • All ports operate in a level plane of anesthesia
  • Single gas line supplies multiple outputs
  • Exhaust runts to a charcoal filter for safety

EZ-109 Breather Includes:

  • EZ-110 (5) Mouse Nosecones
  • EZ-112 (3) Rat Nosecone
  • EZ-251 Tabletop Filter Stand

EZ-103A

EZ-103A

Microflex Non-Rebreathing Unit

View details...

EZ-103MX

EZ-103MX

MRI Microflex Breather

View details...

EZ-107A

EZ-107A

Rat Stereotaxic Breather

View details...


Choose Quantity

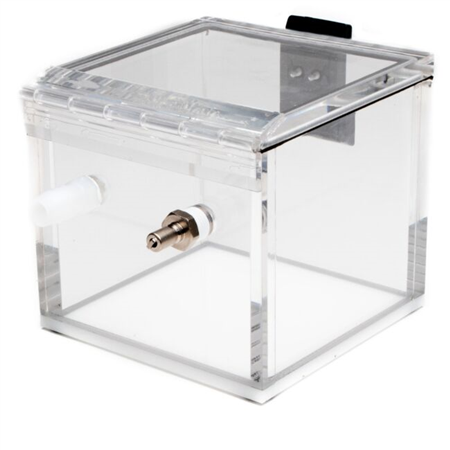

EZ-177

EZ-177

Sure-Seal Mouse Induction Chamber

For use when home cage is unavailable. The EZ-177 Sure-Seal Mouse Chamber is constructed of heavy-duty, clear acrylic plastic with a non-skid bottom and simple locking, snap latch top.

Dimensions: 4" L x 4" W x 4" H (10 x 10 x 10 cm)

  • For use with EZ-Anesthesia
  • Seal gasket ensures no gas leakage
  • Gas exhaust outlet port connects to charcoal filter
  • Heavy-duty, acrylic


Choose Quantity
EZ-178

EZ-178

Sure-Seal Mouse/Rat Induction Chamber

For use when home cage is unavailable. The EZ-178 Sure-Seal Mouse/Rat Chamber is constructed of heavy-duty, clear acrylic plastic with a non-skid bottom and simple locking, snap latch top.

Dimensions: 9" L x 4" W x 4" H (23 x 10 x 10 cm)

  • For use with EZ-Anesthesia
  • Seal gasket ensures no gas leakage
  • Gas exhaust outlet port connects to charcoal filter
  • Heavy-duty, acrylic


Choose Quantity

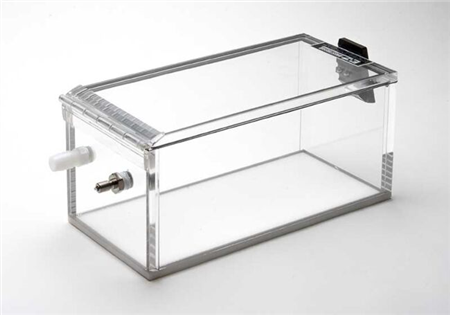

EZ-1785

EZ-1785

Sure-Seal Large Mouse/Rat Induction Chamber

For use when home cage is unavailable. The EZ-1785 Sure-Seal Large Mouse/Rat Chamber is constructed of heavy-duty, clear acrylic plastic with a non-skid bottom and simple snap latch top.

Dimensions: 11.25" L x 7" W x 6" H (ca. 28.6 x 17.8 x 15.2 cm)

  • For use with EZ-Anesthesia
  • Seal gasket ensures no gas leakage
  • Gas exhaust outlet port connects to charcoal filter
  • Heavy-duty, acrylic


Choose Quantity
EZ-179

EZ-179

Sure-Seal Guinea Pig/Rabbit Induction Chamber

For use when home cage is unavailable. The EZ-179 Sure-Seal Guinea Pig/Rabbit Chamber is constructed of heavy-duty, clear acrylic plastic with a non-skid bottom and simple locking, snap latch top.

Dimensions 18" L x 12" W x 12" H  ( 45.7 x 30.5 x 30.5 cm)

  • For use with EZ-Anesthesia
  • Seal gasket ensures no gas leakage
  • Gas exhaust outlet port connects to charcoal filter
  • Heavy-duty, acrylic


Choose Quantity

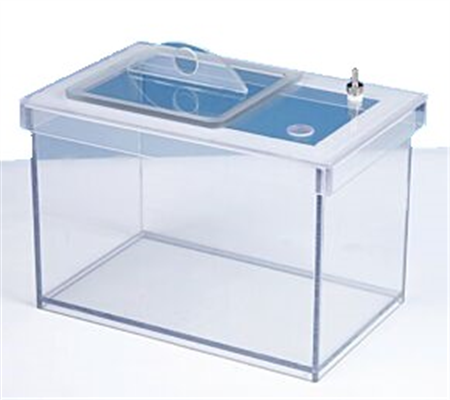

EZ-161A

EZ-161A

High Volume Non-Gasketed Induction Chamber accommodates up to 16 mice or 4 medium rats

Dimensions 11.5" L x 7.5" W x 8" H  ( 29.2 x 19.1 x 20.3 cm)

  • Designed for use under fume hood or biosafety cabinet
  • High Volume Chamber accommodates up to 16 mice or 4 medium rats
  • Constructed of heavy-duty, polycarbonate plastic
  • Compatible with a wide range of disinfectants and frequent sterilization cycles


Choose Quantity

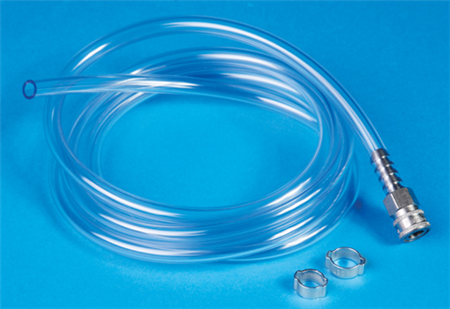

EZ-1130

EZ-1130

Anesthesia Connection Kit. This kit is required for integrating third party equipment into an EZ Ansthesia system. It includes EZ-2SF Female Quick Disconnect with 6 ft of 0.25" ID clear PVC tubing with clamps.


Choose Quantity

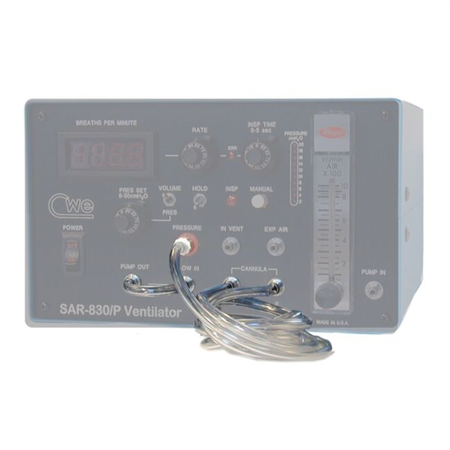

EZ-830

EZ-830

EZ-830 Ventilator Connection Kit. Includes tubing and fittings to connect the EZ-SAR830/AP Ventilator to any E-Z Anaesthesia system and to a charcoal filter canister.


Choose Quantity

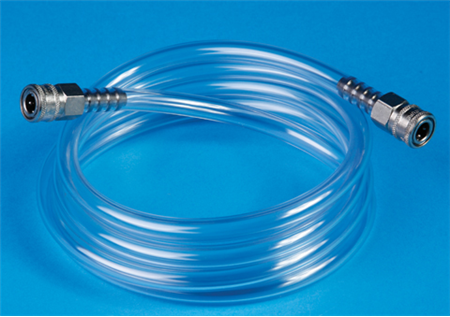

EZ-260N

EZ-260N

Chamber Connection Hose. 5' of 0.25" ID hose for connecting anesthesia output to the induction chambers.


Choose Quantity

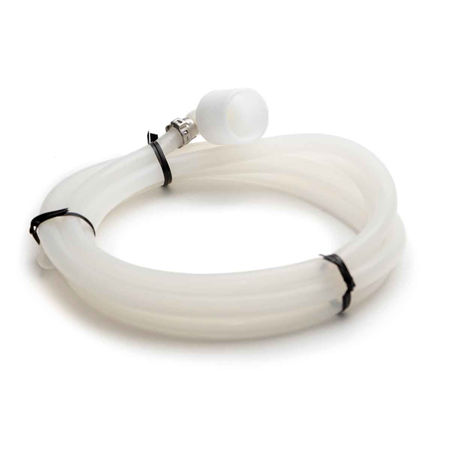

EZ-251A

EZ-251A

Filter Connection Kit. 5 feet of ¼” ID hose with connectors and clamps for connection to charcoal filter canister.


Choose Quantity

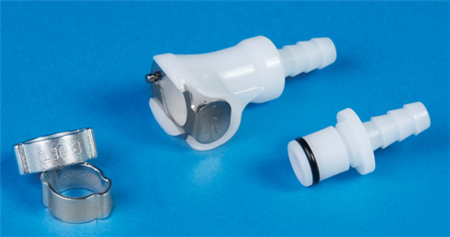

EZ-200-2

EZ-200-2

Waterpump Conversion Kit. Set of male and female quick disconnects and clamps to convert standard water heating pump for use with EZ Anesthesia water-heated surgical beds.


Choose Quantity

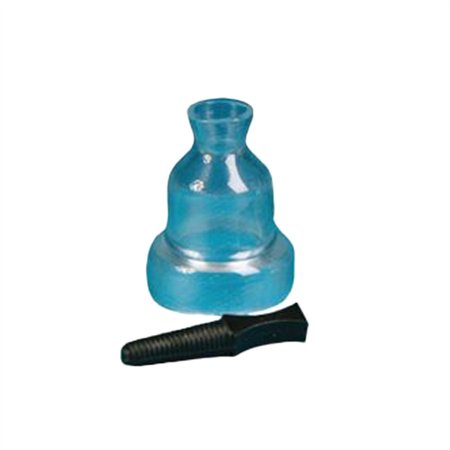

EZ-110

EZ-110

Mouse Nosecone. E-Z Anaesthesia nosecones are custom-designed for small animals, ensuring a tight fit and minimal dead space. They are available in three sizes to fit mice, rats and rabbits. Nosecones include rubber plugs to close off gas supply when not in use. Nosecone plugs are also available separately (EZ-119).


Choose Quantity

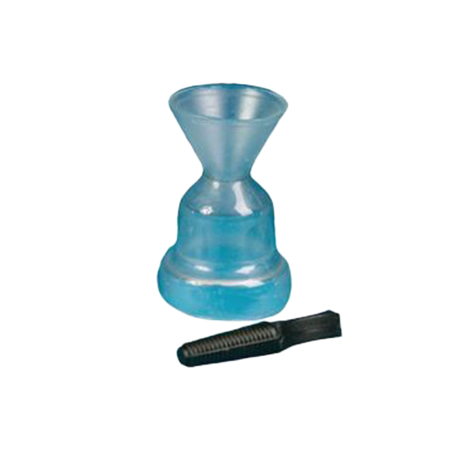

EZ-112

EZ-112

Rat Nosecone. E-Z Anaesthesia nosecones are custom-designed for small animals, ensuring a tight fit and minimal dead space. They are available in three sizes to fit mice, rats and rabbits. Nosecones include rubber plugs to close off gas supply when not in use. Nosecone plugs are also available separately (EZ-119).


Choose Quantity

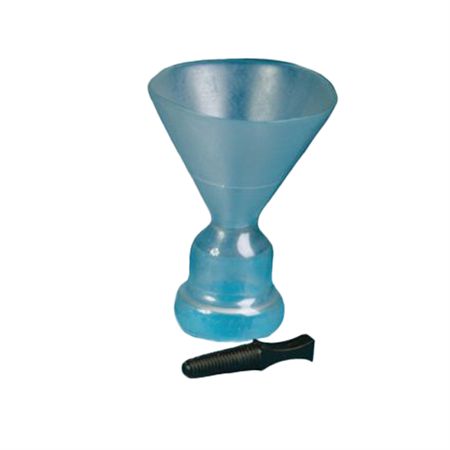

EZ-115

EZ-115

Rabbit / Guinea Pig noscone. E-Z Anaesthesia nosecones are custom-designed for small animals, ensuring a tight fit and minimal dead space. They are available in three sizes to fit mice, rats and rabbits. Nosecones include rubber plugs to close off gas supply when not in use. Nosecone plugs are also available separately (EZ-119).


Choose Quantity

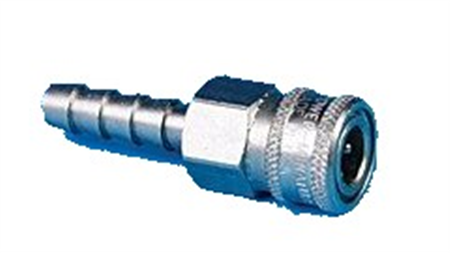

EZ-S2F

EZ-S2F

Female Quick Disconnect with ¼” hose barb


Choose Quantity

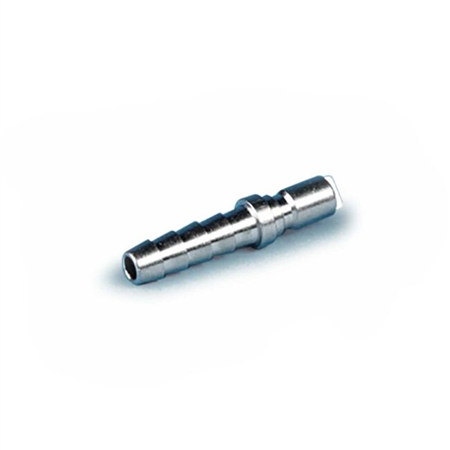

EZ-S2M

EZ-S2M

Male Quick Disconnect with ¼” hose barb

EZ-108SA

EZ-108SA

Single Animal Vaporizer Unit

View details...


Choose Quantity

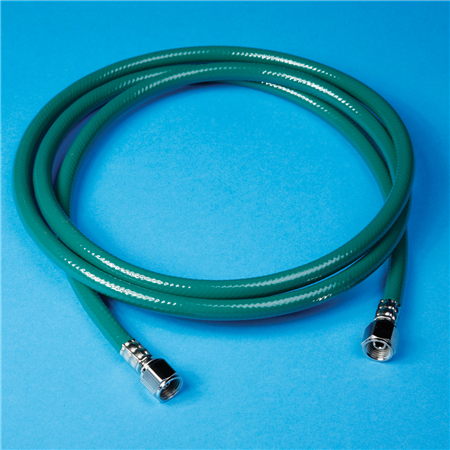

EZ-15021 Oxygen Hose

EZ-15021 Oxygen Hose

Standard 6′ hose connection from the oxygen regulator to the E-Z Anesthesia system. Female DISS fittings are attached to both ends of the green hose.

EZ-155

EZ-155

Stand Alone Vaporizer Unit With Male and Female Connectors

View details...

EZ-258

EZ-258

ReFresh Charcoal Filter Canister for anesthesia systems

View details...


Choose Quantity

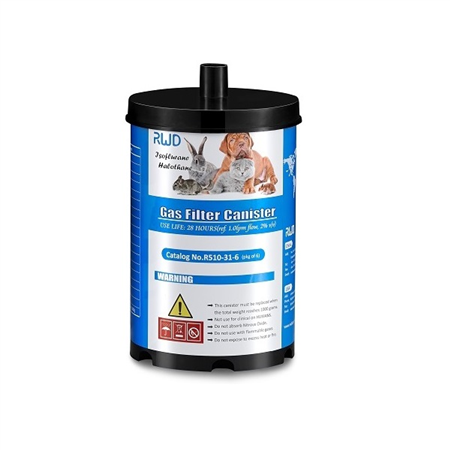

R510-31-6

R510-31-6

Gas Filter Canister, Large, Package of 6pcs

Self Weight: 800 g

Effective absorption: 200g


Choose Quantity
R510-31S-6

R510-31S-6

Gas Filter Canister, Small, pkg of 6pcs

Self Weight: 250g

Effective absorption: 50g

R546Pro

R546Pro

Gas Evacuation Apparatus designed to safely and actively remove waste gas associated...

View details...
