Aladdin Pumps

Aladdin Pumps

The best value syringe pumps in the market!


  • Precise, reproducible flow rate control
  • Easy-to-use keypad interface
  • RS-232 and TTL control
  • Rich command set
  • Daisy chain and monitor up to 100 pumps via one PC

The Aladdin Syringe Pump series are the go to syringe pump for a busy laboratory. These pumps offer a broad pulse free flow range, computer interface and TTL control. Select from options including:

  • Infusion pumping or Infusion/withdrawal pumping
  • Multi-channel (from 1 to 12 channels)
  • High pressure models
  • Advanced programming options

Aladdin Syringe Pumps are constructed with a metal casing to provide stability, ensuring less vibration is transferred to the syringes. Setup is easy using the pumps keypad or via a computer with optional PC to pump cable.

Aladdin Pump Selection Table

Description Maximum Syringes Standard Pump Advanced Pump*

Aladdin InfusionONE Syringe Pump (Infusion only)

  • Min Flow: 0.73 µL/hr (1 mL syringe)
  • Max Flow:1500 mL/hr (60 mL syringe)
  • Force: 35 lb at low speed; 18 lb at maximum speed
1 AL-300

Aladdin SyringeONE Programmable Syringe Pump

  • Min Flow: 0.001 µL/hr (0.5 µL syringe)
  • Max Flow: 3470 mL/hr (140 mL syringe)
  • Force: 35 lb at low speed; 18 lb at maximum speed
1 AL-1000 AL-1000X

Aladdin SyringeONE Microfluidics Programmable Syringe Pump

  • Min Flow: 0.008 nL/hr (0.5 µL syringe)
  • Max Flow:2545 µL/min (140 mL syringe)
  • Force: 150 lb at low speed; 18 lb at maximum speed
1   AL-1002X

Aladdin SyringeONE Programmable Syringe Pump With Remote Pump Head

  • Min Flow: 0.001 µL/hr (0.5 µL syringe)
  • Max Flow:3470 mL/hr (140 mL syringe)
  • Force: 35 lb at low speed; 18 lb at maximum speed
1   AL-M500X

Aladdin SyringeONE:80 High Flow Programmable Syringe Pump

  • Min Flow: 0.004 µL/hr (0.5 µL syringe)
  • Max Flow: 907 mL/min (140 mL syringe)
  • Force: 20 lb at low speed; 10 lb at maximum speed
1 AL-1050 AL-1050X

Aladdin SyringeONE:173 High Flow Programmable Syringe Pump

  • Min Flow: 0.005 µL/hr (0.5 µL syringe)
  • Max Flow: 1961 mL/min (140 mL syringe)
  • Force: 15 lb at low speed; 5 lb at maximum speed
1 AL-1060 AL-1060X

Aladdin SyringeONE:100 High Pressure Programmable Syringe Pump

  • Min Flow: 0.001 µL/hr (0.5 µL syringe)
  • Max Flow: 208.3 mL/min (140 mL syringe)
  • Force: 100 lb at low speed; 18 lb at maximum speed
1 AL-1010 AL-1010X

Aladdin SyringeONE:200 High Pressure (200 lb) Programmable Syringe Pump

  • Min Flow: 0.001 µL/hr (0.5 µL syringe)
  • Max Flow: 472.3 mL/min (200 mL syringe)
  • Force: 200 lb at low speed; 100 lb at maximum speed
1 AL-8000 AL-8000X

Aladdin SyringeONE:200 High Pressure (200 lb) High Speed Programmable Syringe Pump

  • Min Flow: 0.003 µL/hr (0.5 µL syringe)
  • Max Flow: 1416 mL/min (200 mL syringe)
  • Force: 200 lb at low speed; 100 lb at maximum speed
1 AL-8060 AL-8060X

Aladdin SyringeTWO Programmable Double Syringe Pump - holds two syringes of up to 60 cc

  • Min Flow: 0.001 µL/hr (0.5 µL syringe)
  • Max Flow: 7515 mL/hr (60 mL syringe)
  • Force: 100 lb at low speed; 18 lb at maximum speed
2 AL-4000 AL-4000X

Aladdin SyringeTWO Microfluidics Programmable Syringe Pump

  • Min Flow: 0.008 nL/hr (0.5 µL syringe)
  • Max Flow: 2545 µL/min (140 mL syringe)
  • Force: 150 lb at low speed; 18 lb at maximum speed
2   AL-4002X

Aladdin SyringeSIX Programmable 6 Channel Syringe Pump - Holds 2, 4 up to 140 cc or 6 syringes of up to 60 cc

  • Min Flow: 0.001 µL/hr (0.5 µL syringe)
  • Max Flow: 2376 mL/hr (140 mL syringe)
  • Force: 160 lb at low speed; 30 lb at maximum speed
6 AL-1600 AL-1600X

Aladdin SyringeEIGHT Programmable 8 Channel Syringe Pump - Holds 2, 4, 6 or 8 syringes of up to 10 cc

  • Min Flow: 0.001 µL/hr (0.5 µL syringe)
  • Max Flow: 415.9 mL/hr (10 mL syringe)
  • Force: 160 lb at low speed; 30 lb at maximum speed
8 AL-1800 AL-1800X

Aladdin SyringeTWELVE Programmable 12 Channel Syringe Pump - Holds 2, 4, 6, 8, 10 or 12 syringes of up to 3 cc

  • Min Flow: 0.001 µL/hr (0.5 µL syringe)
  • Max Flow: 153.2 mL/hr (3 mL syringe)
  • Force: 160 lb at low speed; 30 lb at maximum speed
12 AL-1200 AL-1200X



*Advanced Pump Models

Aladdin Advanced Syringe Pump models include all the features and performance of the Aladdin Syringe Pump with upgaded programming functionality including:

  • Linear/Gradient Program Function
  • Next generation continuous pumping mode when combined with a second pump
  • Constant flow rate gradient pumping mode when combined with a second pump

AL-300

AL-300

Aladdin InfusionONE Syringe Pump

View details...

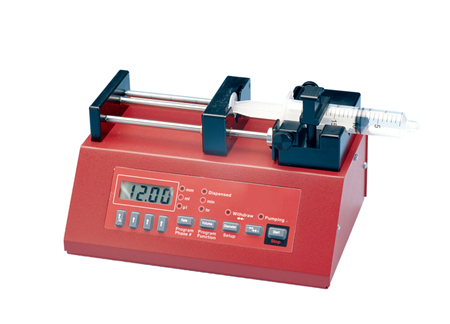

AL-1000

AL-1000

Aladdin SyringeONE Programmable Syringe Pump

View details...

AL-1002X

AL-1002X

Aladdin SyringeONE Microfluidics Programmable Syringe Pump

View details...

AL-M500X

AL-M500X

Aladdin SyringeONE Programmable Syringe Pump With Remote Pump Head

View details...

AL-1050

AL-1050

Aladdin SyringeONE:80 High Flow Programmable Syringe Pump

View details...

AL-1060

AL-1060

Aladdin SyringeONE:173 High Flow Programmable Syringe Pump

View details...

AL-1010

AL-1010

Aladdin SyringeONE:100 High Pressure Programmable Syringe Pump

View details...

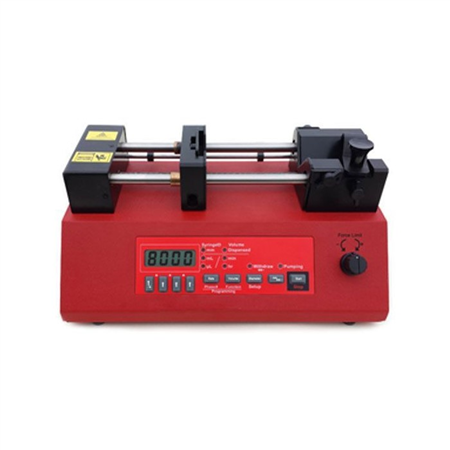

AL-8000

AL-8000

Aladdin SyringeONE:200 High Pressure (200 lb) Programmable Syringe Pump

View details...

AL-8060

AL-8060

Aladdin SyringeONE:200 High Pressure (200 lb), High Speed Programmable Syringe Pump

View details...

AL-DUAL-AL-1000

AL-DUAL-AL-1000

Dual Aladdin Pump System (Two Aladdin AL-1000 SyringeONE Syringe Pumps with sync cab...

View details...

AL-DUAL-AL-1000X

AL-DUAL-AL-1000X

Continuous Aladdin Pump System (Two Aladdin AL-1000X SyringeONE NeXtGen Syringe Pump...

View details...

AL-DUAL-AL-1010

AL-DUAL-AL-1010

Dual Aladdin High Pressure Pump System (Two Aladdin AL-1010 SyringeONE:100 High Pres...

View details...

AL-DUAL-AL-1010X

AL-DUAL-AL-1010X

Continuous Aladdin Pump System (Two Aladdin AL-1000X SyringeONE NeXtGen Syringe Pump...

View details...

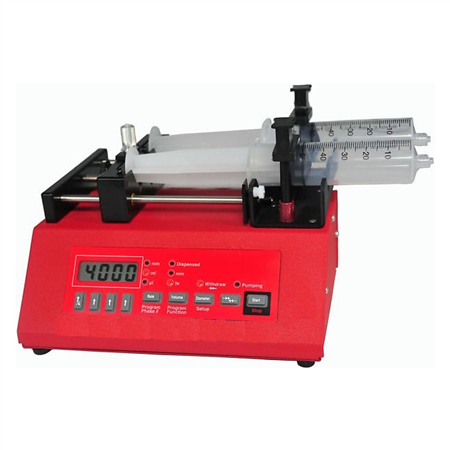

AL-4000

AL-4000

Aladdin SyringeTWO Programmable Double Syringe Pump - holds two syringes of up to 60...

View details...

AL-4002X

AL-4002X

Aladdin SyringeTWO Microfluidics Programmable Syringe Pump

View details...

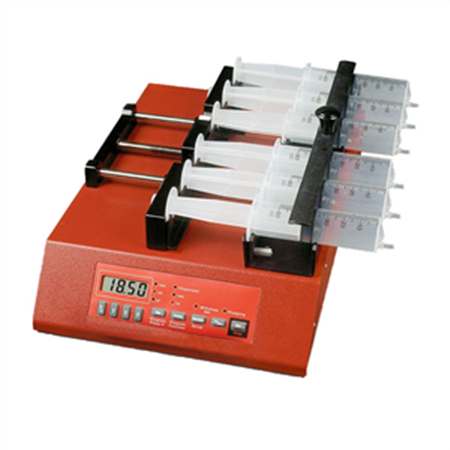

AL-1600

AL-1600

Aladdin SyringeSIX Programmable 6 Channel Syringe Pump - Holds 2, 4 up to 140 cc or ...

View details...

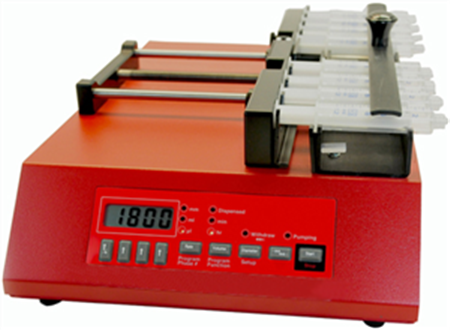

AL-1800

AL-1800

Aladdin SyringeEIGHT Programmable 8 Channel Syringe Pump - Holds 2, 4, 6 or 8 syring...

View details...

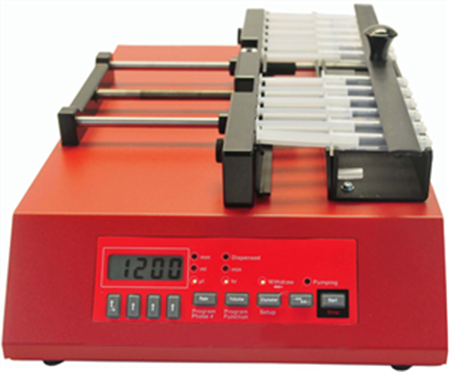

AL-1200

AL-1200

Aladdin SyringeTWELVE Programmable 12 Channel Syringe Pump - Holds 2, 4, 6, 8, 10 or...

View details...


Choose Quantity
AL-1000X

AL-1000X

Aladdin SyringeONE ADVANCED Programmable Syringe Pump

  • Single channel infusion/withdrawal syringe pump with ±1% dispensing accuracy
  • Linear force 35 lb at low speed; 18 lb at maximum speed
  • Flow range 0.001 µL/hr (0.5 µL syringe) to 3470 mL/hr (140 mL syringe)
  • Spec of AL-1000 with upgraded advanced programming functions including
    • Linear/Gradient Program Function
    • Next generation continuous pumping mode when combined with a second pump
    • Constant flow rate gradient pumping mode when combined with a second pump


Choose Quantity
AL-1010X

AL-1010X

Aladdin SyringeONE:100 ADVANCED High Pressure Programmable Syringe Pump

  • Single channel infusion/withdrawal syringe pump with ±1% dispensing accuracy
  • Linear force 100 lb at low speed; 18 lb at maximum speed
  • Flow range 0.001 µL/hr (0.5 µL syringe) to 208.3 mL/min (140 mL syringe)
  • Spec of AL-1010 with upgraded advanced programming functions including
    • Linear/Gradient Program Function
    • Next generation continuous pumping mode when combined with a second pump
    • Constant flow rate gradient pumping mode when combined with a second pump


Choose Quantity
AL-1050X

AL-1050X

Aladdin SyringeONE:80 ADVANCED High Flow Programmable Syringe Pump

  • Single channel infusion/withdrawal syringe pump with ±1% dispensing accuracy
  • Linear force 20 lb at low speed; 10 lb at maximum speed
  • Flow range 0.004 µL/hr (0.5 µL syringe) to 907 mL/min (140 mL syringe)
  • Spec of AL-1050 with upgraded advanced programming functions including
    • Linear/Gradient Program Function
    • Next generation continuous pumping mode when combined with a second pump
    • Constant flow rate gradient pumping mode when combined with a second pump


Choose Quantity
AL-1060X

AL-1060X

Aladdin SyringeONE:173 ADVANCED High Flow Programmable Syringe Pump

  • Single channel infusion/withdrawal syringe pump with ±1% dispensing accuracy
  • Linear force 15 lb at low speed; 5 lb at maximum speed
  • Flow range 0.005 µL/hr (0.5 µL syringe) to 1961 mL/min (140 mL syringe)
  • Spec of AL-1060 with upgraded advanced programming functions including
    • Linear/Gradient Program Function
    • Next generation continuous pumping mode when combined with a second pump
    • Constant flow rate gradient pumping mode when combined with a second pump


Choose Quantity
AL-1200X

AL-1200X

Aladdin SyringeTWELVE ADVANCED Programmable 12 Channel Syringe Pump

  • Twelve channel infusion/withdrawal syringe pump with ±1% dispensing accuracy
  • Linear force 160 lb at low speed; 30 lb at maximum speed
  • Flow range 0.001 µL/hr (0.5 µL syringe) to 153.2 mL/hr (3 mL syringe)
  • Spec of AL-1200 with upgraded advanced programming functions including
    • Linear/Gradient Program Function
    • Next generation continuous pumping mode when combined with a second pump
    • Constant flow rate gradient pumping mode when combined with a second pump


Choose Quantity
AL-1600X

AL-1600X

Aladdin SyringeSIX ADVANCED Programmable 6 Channel Syringe Pump

  • Six channel infusion/withdrawal syringe pump with ±1% dispensing accuracy
  • Linear force 160 lb at low speed; 30 lb at maximum speed
  • Flow range 0.001 µL/hr (0.5 µL syringe) to 2376 mL/hr (140 mL syringe)
  • Spec of AL-1600 with upgraded advanced programming functions including
    • Linear/Gradient Program Function
    • Next generation continuous pumping mode when combined with a second pump
    • Constant flow rate gradient pumping mode when combined with a second pump


Choose Quantity
AL-1800X

AL-1800X

Aladdin SyringeEIGHT ADVANCED Programmable 8 Channel Syringe Pump

  • Eight channel infusion/withdrawal syringe pump with ±1% dispensing accuracy
  • Linear force 160 lb at low speed; 30 lb at maximum speed
  • Flow range 0.001 µL/hr (0.5 µL syringe) to 415.9 mL/hr (10 mL syringe)
  • Spec of AL-1800 with upgraded advanced programming functions including
    • Linear/Gradient Program Function
    • Next generation continuous pumping mode when combined with a second pump
    • Constant flow rate gradient pumping mode when combined with a second pump


Choose Quantity
AL-4000X

AL-4000X

Aladdin SyringeTWO ADVANCED Programmable Double Syringe Pump

  • Two channel infusion/withdrawal syringe pump with ±1% dispensing accuracy
  • Linear force 100 lb at low speed; 18 lb at maximum speed
  • Flow range 0.001 µL/hr (0.5 µL syringe) to 7515 mL/hr (60 mL syringe)
  • Spec of AL-4000 with upgraded advanced programming functions including
    • Linear/Gradient Program Function
    • Next generation continuous pumping mode when combined with a second pump
    • Constant flow rate gradient pumping mode when combined with a second pump


Choose Quantity
AL-8000X

AL-8000X

Aladdin SyringeONE:200 ADVANCED High Pressure Programmable Syringe Pump

  • Single channel infusion/withdrawal syringe pump with ±1% dispensing accuracy
  • Linear force 200 lb at low speed; 100 lb at maximum speed
  • Flow range 0.001 µL/hr (0.5 µL syringe) to 340.6 mL/min (140 mL syringe)
  • Spec of AL-8000 with upgraded advanced programming functions including
    • Linear/Gradient Program Function
    • Next generation continuous pumping mode when combined with a second pump
    • Constant flow rate gradient pumping mode when combined with a second pump


Choose Quantity
AL-8060X

AL-8060X

Aladdin SyringeONE:200 ADVANCED High Pressure High Speed Programmable Syringe Pump

  • Single channel infusion/withdrawal syringe pump with ±1% dispensing accuracy
  • Linear force 200 lb at low speed; 100 lb at maximum speed
  • Flow range 0.003 µL/hr (0.5 µL syringe) to 1416 mL/min (200 mL syringe)
  • Spec of AL-8060 with upgraded advanced programming functions including
    • Linear/Gradient Program Function
    • Next generation continuous pumping mode when combined with a second pump
    • Constant flow rate gradient pumping mode when combined with a second pump

PumpTerm

PumpTerm

FREE software for Aladdin pumps

View details...

Our Clients Include:

GlaxoSmithKline
University College London
Novartis
Imperial College
University of Cambridge
University of Oxford

Keep in Touch

We promise NEVER to share your details with anyone. You can opt out at any time.
