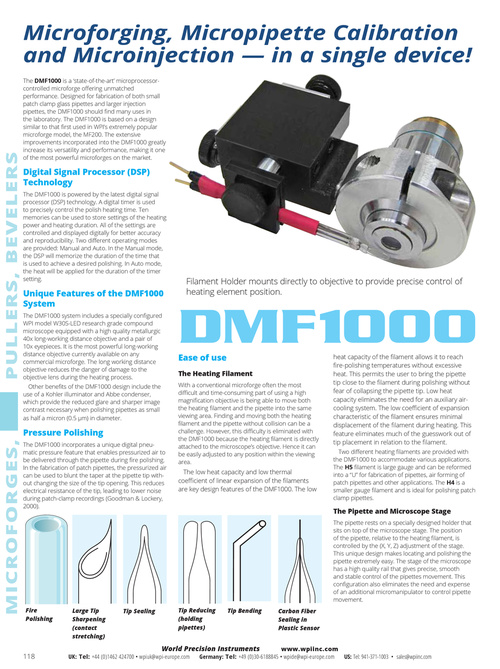

Microforging, Micropipette Calibration and Microinjection — in a single device! The DMF1000 is a ‘state-of-the-art’ microprocessorcontrolled microforge offering unmatched performance. Designed for fabrication of both small patch clamp glass pipettes and larger injection pipettes, the DMF1000 should find many uses in the laboratory. The DMF1000 is based on a design similar to that first used in WPI’s extremely popular microforge model, the MF200. The extensive improvements incorporated into the DMF1000 greatly increase its versatility and performance, making it one of the most powerful microforges on the market. PULLERS, BEVELERS Digital Signal Processor (DSP) Technology The DMF1000 is powered by the latest digital signal processor (DSP) technology. A digital timer is used to precisely control the polish heating time. Ten memories can be used to store settings of the heating power and heating duration. All of the settings are controlled and displayed digitally for better accuracy and reproducibility. Two different operating modes are provided: Manual and Auto. In the Manual mode, the DSP will memorize the duration of the time that is used to achieve a desired polishing. In Auto mode, the heat will be applied for the duration of the timer setting. Unique Features of the DMF1000 System The DMF1000 system includes a specially configured WPI model W30S-LED research grade compound microscope equipped with a high quality metallurgic 40x long-working distance objective and a pair of 10x eyepieces. It is the most powerful long-working distance objective currently available on any commercial microforge. The long working distance objective reduces the danger of damage to the objective lens during the heating process. Other benefits of the DMF1000 design include the use of a Kohler illuminator and Abbe condenser, which provide the reduced glare and sharper image contrast necessary when polishing pipettes as small as half a micron (0.5 µm) in diameter. Filament Holder mounts directly to objective to provide precise control of heating element position. Ease of use The Heating Filament With a conventional microforge often the most difficult and time-consuming part of using a high magnification objective is being able to move both the heating filament and the pipette into the same viewing area. Finding and moving both the heating filament and the pipette without collision can be a challenge. However, this difficulty is eliminated with the DMF1000 because the heating filament is directly attached to the microscope’s objective. Hence it can be easily adjusted to any position within the viewing area. Pressure Polishing The DMF1000 incorporates a unique digital pneumatic pressure feature that enables pressurized air to be delivered through the pipette during fire polishing. In the fabrication of patch pipettes, the pressurized air can be used to blunt the taper at the pipette tip without changing the size of the tip opening. This reduces electrical resistance of the tip, leading to lower noise during patch-clamp recordings (Goodman & Lockery, 2000). MICROFORGES, heat capacity of the filament allows it to reach fire-polishing temperatures without excessive heat. This permits the user to bring the pipette tip close to the filament during polishing without fear of collapsing the pipette tip. Low heat capacity eliminates the need for an auxiliary aircooling system. The low coefficient of expansion characteristic of the filament ensures minimal displacement of the filament during heating. This feature eliminates much of the guesswork out of tip placement in relation to the filament. Two different heating filaments are provided with the DMF1000 to accommodate various applications. The H5 filament is large gauge and can be reformed into a “U” for fabrication of pipettes, air forming of patch pipettes and other applications. The H4 is a smaller gauge filament and is ideal for polishing patch clamp pipettes. The low heat capacity and low thermal coefficient of linear expansion of the filaments are key design features of the DMF1000. The low The Pipette and Microscope Stage The pipette rests on a specially designed holder that sits on top of the microscope stage. The position of the pipette, relative to the heating filament, is controlled by the (X, Y, Z) adjustment of the stage. This unique design makes locating and polishing the pipette extremely easy. The stage of the microscope has a high quality rail that gives precise, smooth and stable control of the pipettes movement. This configuration also eliminates the need and expense of an additional micromanipulator to control pipette movement. Fire Polishing Large Tip Sharpening (contact stretching) Tip Sealing Tip Reducing (holding pipettes) Tip Bending Carbon Fiber Sealing in Plastic Sensor 118 UK: Tel: +44 (0)1462 424700 • wpiuk@wpi-europe.com World Precision Instruments www.wpiinc.com Germany: Tel: +49 (0)30-6188845 • wpide@wpi-europe.com US: Tel: 941-371-1003 • sales@wpiinc.com
