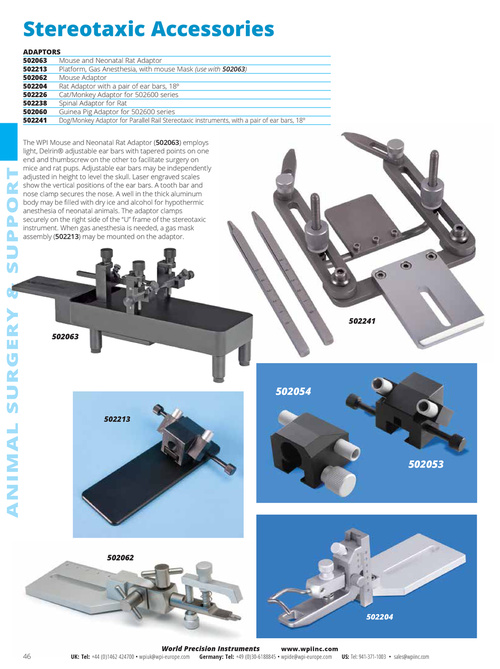

Stereotaxic Accessories ADAPTORS 502063 Mouse and Neonatal Rat Adaptor 502213 Platform, Gas Anesthesia, with mouse Mask (use with 502063) 502062 Mouse Adaptor 502204 Rat Adaptor with a pair of ear bars, 18º 502226 Cat/Monkey Adaptor for 502600 series 502238 Spinal Adaptor for Rat 502060 Guinea Pig Adaptor for 502600 series 502241 Dog/Monkey Adaptor for Parallel Rail Stereotaxic instruments, with a pair of ear bars, 18º The WPI Mouse and Neonatal Rat Adaptor (502063) employs light, Delrin® adjustable ear bars with tapered points on one end and thumbscrew on the other to facilitate surgery on mice and rat pups. Adjustable ear bars may be independently adjusted in height to level the skull. Laser engraved scales show the vertical positions of the ear bars. A tooth bar and nose clamp secures the nose. A well in the thick aluminum body may be filled with dry ice and alcohol for hypothermic anesthesia of neonatal animals. The adaptor clamps securely on the right side of the “U” frame of the stereotaxic instrument. When gas anesthesia is needed, a gas mask assembly (502213) may be mounted on the adaptor. ANIMAL SURGERY & SUPPORT 502241 502063 502054 502213 502053 502062 502204 46 UK: Tel: +44 (0)1462 424700 • wpiuk@wpi-europe.com World Precision Instruments www.wpiinc.com Germany: Tel: +49 (0)30-6188845 • wpide@wpi-europe.com US: Tel: 941-371-1003 • sales@wpiinc.com
