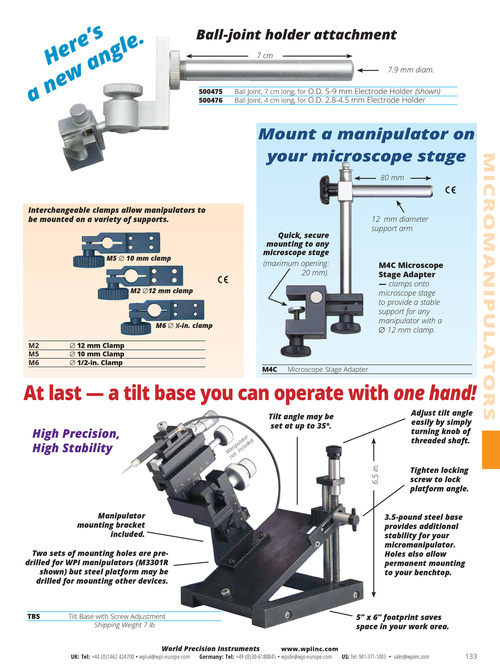

e’s le. er ng H a w ne a Ball-joint holder attachment 7 cm 7.9 mm diam. 500475 500476 Ball Joint, 7 cm long, for O.D. 5-9 mm Electrode Holder (shown) Ball Joint, 4 cm long, for O.D. 2.8-4.5 mm Electrode Holder Mount a manipulator on your microscope stage 80 mm Interchangeable clamps allow manipulators to be mounted on a variety of supports. Quick, secure mounting to any microscope stage (maximum opening: 20 mm). MICROMANIPULATORS 12 mm diameter support arm M5 ∅ 10 mm clamp M2 ∅12 mm clamp M6 ∅ 1⁄2-in. clamp M2 M5 M6 ∅ 12 mm Clamp ∅ 10 mm Clamp ∅ 1/2-in. Clamp M4C Microscope Stage Adapter — clamps onto microscope stage to provide a stable support for any manipulator with a ∅ 12 mm clamp. M4C Microscope Stage Adapter At last — a tilt base you can operate with one hand! High Precision, High Stability Tilt angle may be set at up to 35°. r to . ula ded nip nclu a M t i no Adjust tilt angle easily by simply turning knob of threaded shaft. 6.5 in. Tighten locking screw to lock platform angle. 3.5-pound steel base provides additional stability for your micromanipulator. Holes also allow permanent mounting to your benchtop. Manipulator mounting bracket included. Two sets of mounting holes are predrilled for WPI manipulators (M3301R shown) but steel platform may be drilled for mounting other devices. TBS Tilt Base with Screw Adjustment Shipping Weight 7 lb World Precision Instruments 5” x 6” footprint saves space in your work area. www.wpiinc.com Germany: Tel: +49 (0)30-6188845 • wpide@wpi-europe.com US: Tel: 941-371-1003 • sales@wpiinc.com UK: Tel: +44 (0)1462 424700 • wpiuk@wpi-europe.com 133
