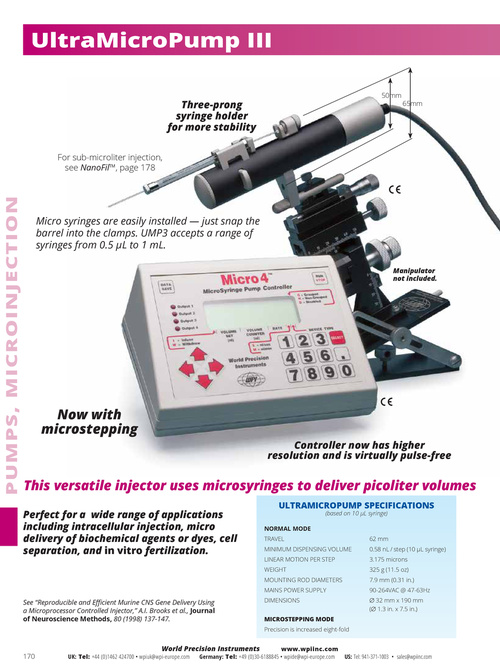

UltraMicroPump III Three-prong syringe holder for more stability For sub-microliter injection, see NanoFil™, page 178 50mm 65mm PUMPS, MICROINJECTION Micro syringes are easily installed — just snap the barrel into the clamps. UMP3 accepts a range of syringes from 0.5 µL to 1 mL. Manipulator not included. Now with microstepping Controller now has higher resolution and is virtually pulse-free This versatile injector uses microsyringes to deliver picoliter volumes Perfect for a wide range of applications including intracellular injection, micro delivery of biochemical agents or dyes, cell separation, and in vitro fertilization. ULTRAMICROPUMP SPECIFICATIONS (based on 10 µL syringe) NORMAL MODE TRAVEL MINIMUM DISPENSING VOLUME LINEAR MOTION PER STEP WEIGHT MOUNTING ROD DIAMETERS MAINS POWER SUPPLY 62 mm 0.58 nL / step (10 µL syringe) 3.175 microns 325 g (11.5 oz) 7.9 mm (0.31 in.) 90-264VAC @ 47-63Hz ∅ 32 mm x 190 mm (∅ 1.3 in. x 7.5 in.) See “Reproducible and Efficient Murine CNS Gene Delivery Using a Microprocessor Controlled Injector,” A.I. Brooks et al., Journal of Neuroscience Methods, 80 (1998) 137-147. DIMENSIONS MICROSTEPPING MODE Precision is increased eight-fold 170 UK: Tel: +44 (0)1462 424700 • wpiuk@wpi-europe.com World Precision Instruments www.wpiinc.com Germany: Tel: +49 (0)30-6188845 • wpide@wpi-europe.com US: Tel: 941-371-1003 • sales@wpiinc.com
